Model
ZZ3317V356GZ1SBEV
Horsepower
Up to 557 HP
Transmission
Battery-electric drivetrain
Dimension（mm）
10045 × 2550 × 3450

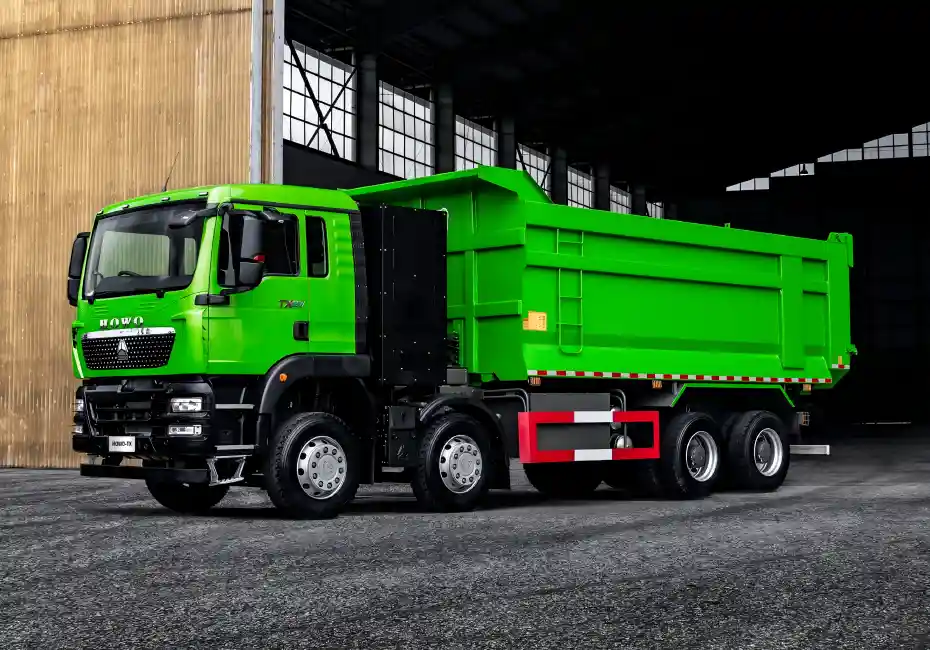

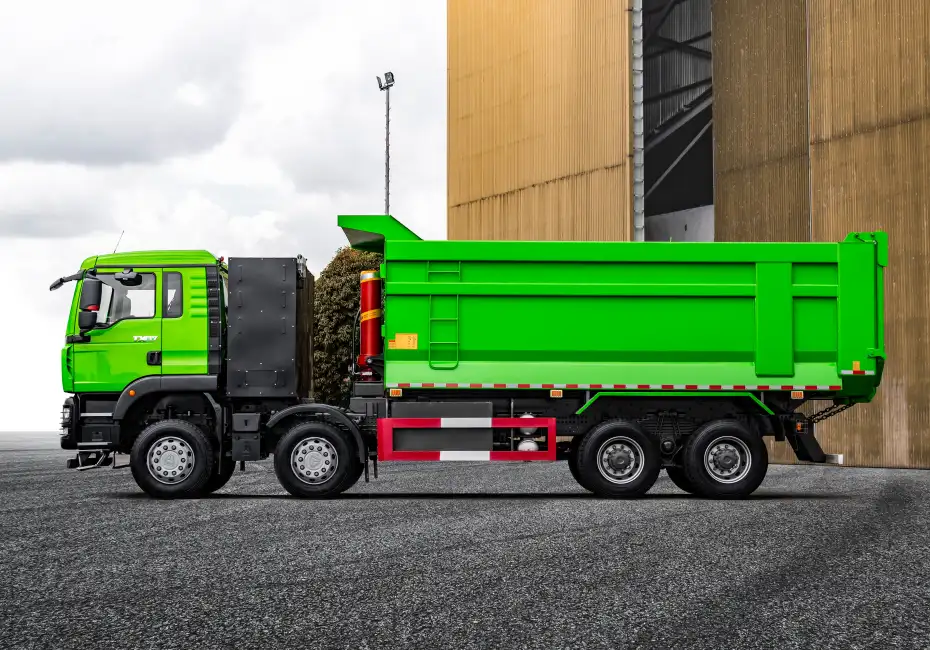

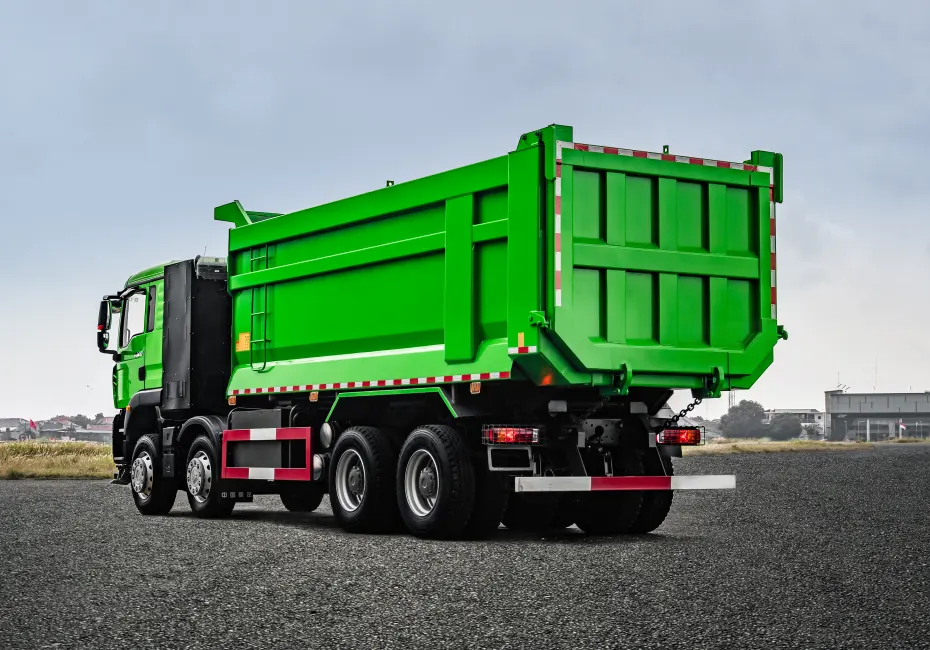

The Howo TX EV 8×4 Dump Truck is a heavy-duty electric commercial vehicle developed by SINOTRUK for construction material transportation and demanding site operations. Featuring an 8×4 chassis and a battery-swapping power system, this electric tipper truck offers an alternative to conventional diesel-powered dump trucks. CREATRUCK supplies commercial vehicles to international wholesalers, fleet operators, distributors and construction companies seeking practical heavy-duty transport solutions for evolving operational requirements.
The Howo TX EV 8×4 Dump Truck combines an electric drive system with a heavy-duty multi-axle chassis designed for demanding transport conditions. Depending on the selected configuration, the vehicle can feature different electric motor outputs and a lithium iron phosphate battery system compatible with battery-swapping operations. Its rear-tipping cargo body supports the transportation and unloading of bulk materials. Buyers should verify motor power, battery capacity, chassis specifications and payload ratings against the exact vehicle configuration before placing an order.
Designed for construction projects, earthmoving operations and short-distance transportation, the Howo TX EV electric dump truck can handle materials such as sand, gravel, soil and construction waste. It may be particularly suitable for fleets operating on predictable routes with access to compatible battery-swapping infrastructure. For international buyers, selecting the appropriate configuration requires consideration of operating range, payload requirements, road conditions and local energy infrastructure. CREATRUCK supports B2B vehicle sourcing for distributors, fleet operators and commercial vehicle importers.
| Howo TX EV 8×4 Dump Truck | |
|---|---|
| Vehicle Model | ZZ3317V356GZ1SBEV |
| Chassis Model | ZZ3317V356GZ1SEV |
| Drive Type | 8×4, four axles |
| Cabin | HOWO TX series; cab configuration varies |
| Engine Brand & Model | Electric motor; ZZM27XS is one listed motor option |
| Engine Type & Displacement | Battery-electric drive; engine displacement not applicable |
| Engine Power & Torque | Listed motor options include 360 kW and 410 kW peak power; configuration-dependent |
| Transmission & Gear Ratios | Electric drivetrain; exact transmission specification depends on configuration |
| Payload Capacity & GVW | Rated payload: 11,370–13,140 kg; gross vehicle weight: 31,000 kg |
| Cargo Volume & Body Dimensions | Cargo box length: 5,600 / 5,800 / 6,000 mm; width: 2,300 / 2,350 mm; height varies by configuration |
| Overall Dimensions (L × W × H) | Published variants include 9,450 / 9,650 / 9,750 / 9,850 × 2,550 × 3,600 mm; verify the selected version |
| Wheelbase | 1,800 + 3,225 + 1,350 mm or 1,800 + 3,525 + 1,350 mm for the listed configuration |
| Front Axle | Front axle load configuration varies; confirm against the selected vehicle specification |
| Rear Axles & Axle Ratio | Dual rear-axle group; axle-load configurations vary by version |
| Propeller Shaft | Configuration-specific electric drivetrain layout |
| Steering System | Steering wheel control; steering-assistance specification to be confirmed |
| Front Suspension | Leaf-spring configuration; options vary |
| Rear Suspension | Leaf-spring configuration; options vary |
| Braking System | ABS listed; EBS available as an option on the published model record |
| Electrical System | Battery-electric high-voltage system; auxiliary electrical details vary by configuration |
| Lighting & Accessories | Vehicle lighting and safety equipment; final specification depends on the ordered trim |
| Fuel Tank Capacity | Not applicable to the battery-electric powertrain |
| Tire Specification & Quantity | 12 tires; available sizes include 11.00R20, 12.00R20, 12R22.5, 295/80R22.5 and 315/80R22.5 |
| Maximum Speed | 89 km/h |
| Gradeability | Confirm for the selected motor and battery configuration |
| Emission Standard | Pure electric; no tailpipe exhaust emissions during driving |
| Production Year & Condition | Model listed in Chinese vehicle approval records; production year and vehicle condition to be confirmed for each unit |
| Color | Confirm available colors when ordering |
| Application | Construction waste, earthmoving, sand and gravel transport, and other short-haul dump-truck operations |
