Model
ZZ3317V446GZ1SBEV35
Energy Type
Pure electric
Rated Load
9.62 tons
Wheelbase (mm)
1800+3825+1350

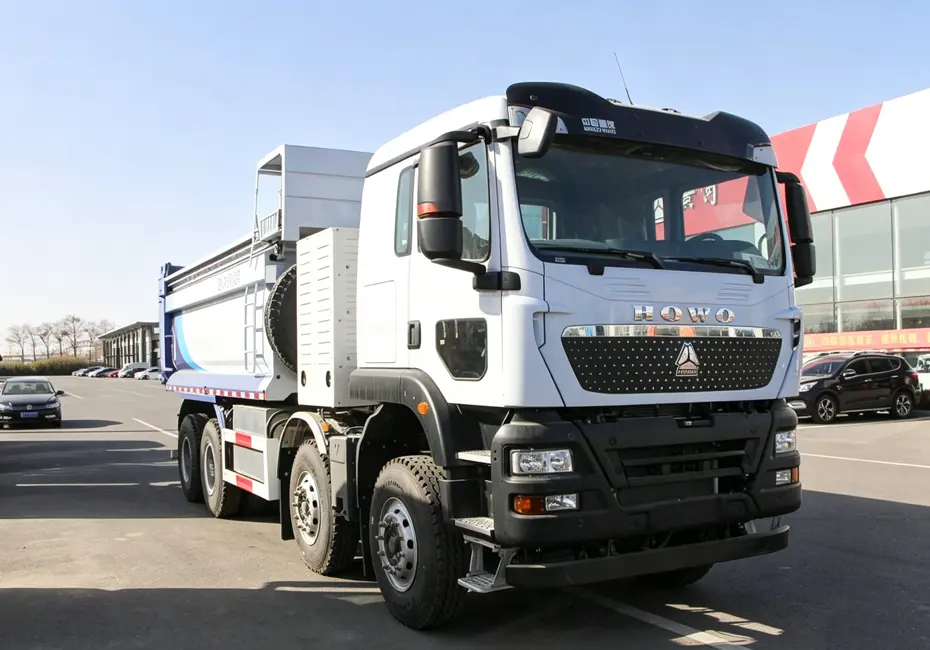

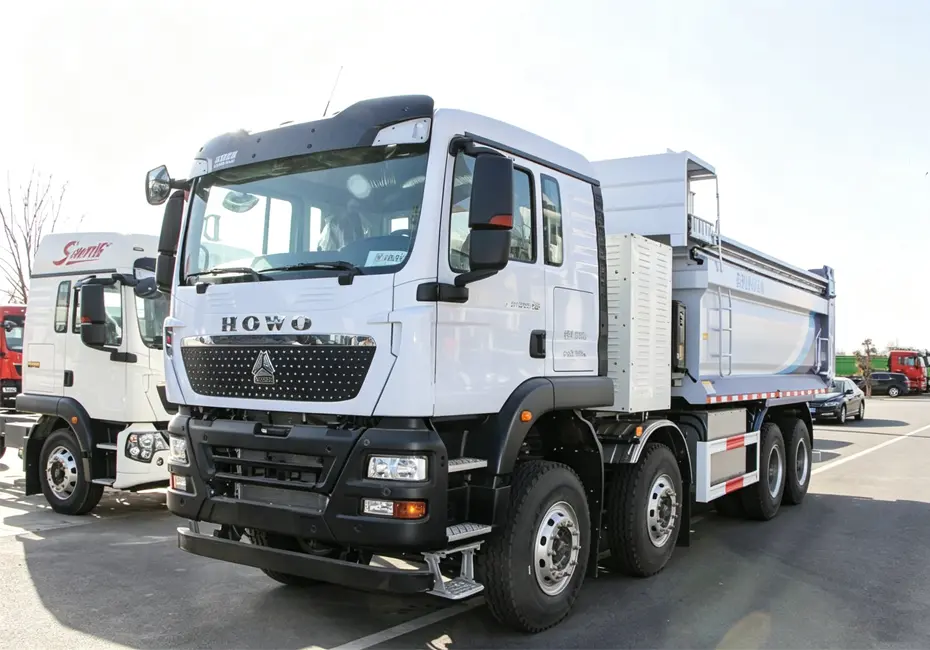

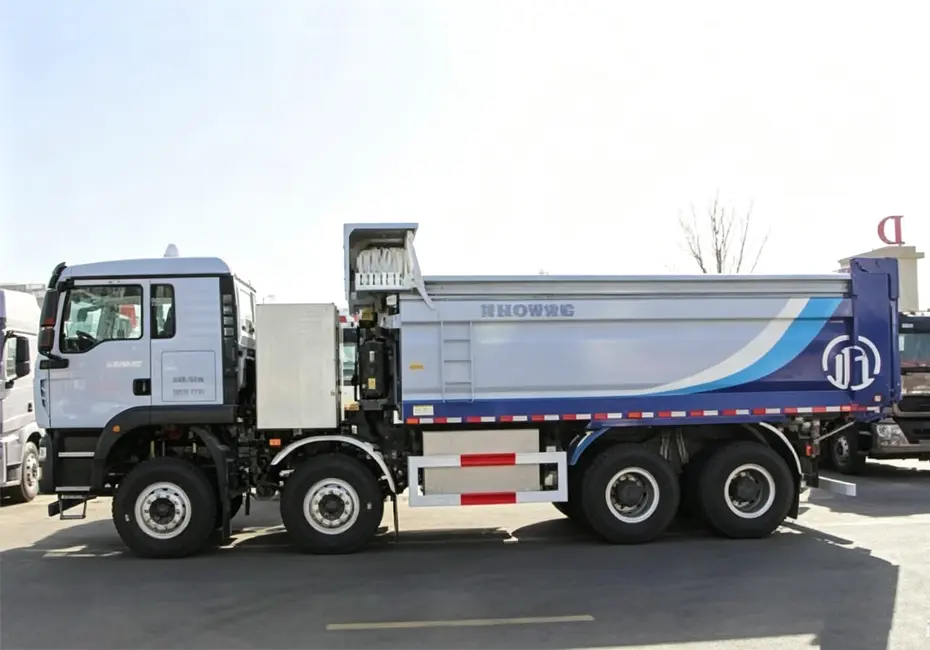

The HOWO TX7 8×4 Electric Dump Truck is a heavy-duty, zero-emission commercial vehicle developed by Sinotruk for urban construction waste transport and short-haul industrial logistics. It combines a high-capacity battery with a powerful electric drivetrain to deliver performance comparable to diesel trucks while reducing operating costs and emissions.
Drive Configuration: 8×4 (four axles, eight wheels)
Body Size: The overall dimensions vary by cargo box length, typically measuring approximately 9,725 mm to 11,250 mm in length, 2,550 mm in width, and 3,450 mm to 3,600 mm in height
Wheelbase: Depending on the model, the wheelbase ranges from 1,800 + 3,275 + 1,350 mm to 1,800 + 4,425 + 1,350 mm
Weight: Total mass is 31,000 kg, with a rated payload capacity ranging from 9,620 kg to 10,870 kg
| HOWO TX7 8×4 ELECTRIC DUMP TRUCK | |
| Model: | ZZ3317V446GZ1SBEV35 |
| Drive type: | 8X4 |
| Wheelbase: | 1800+3825+1350mm |
| Body length: | 10.05 meters |
| Body width: | 2.55 meters |
| Body height: | 3.6 meters |
| Gross weight: | 31 tons |
| Rated load: | 9.62 tons |
| Curb weight: | 21.25 tons |
| Top speed: | 89 km/h |
| Energy type: | Pure electric |

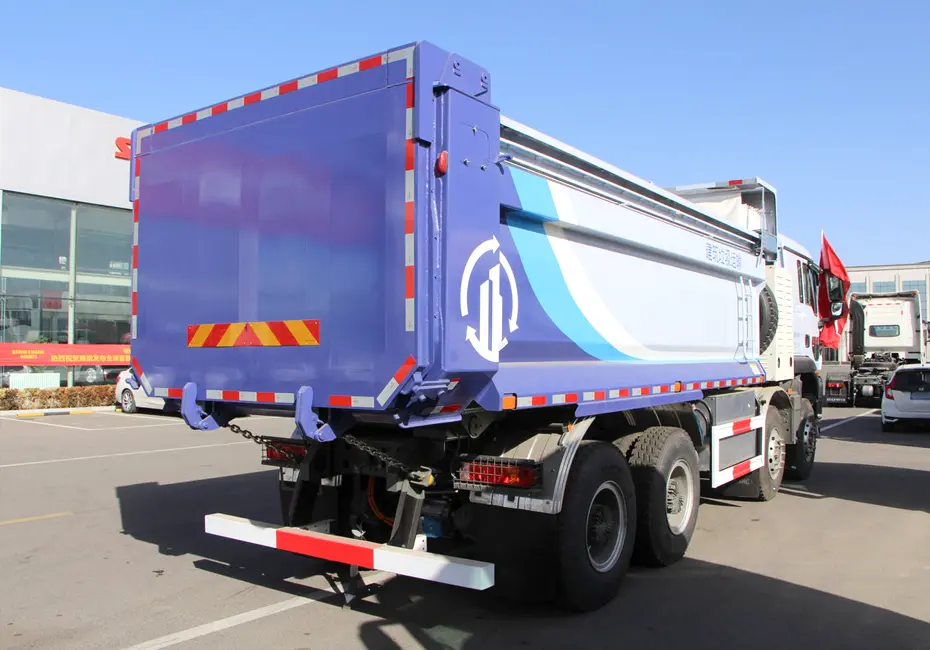

| Cargo box type: | Dump type |
| Cargo box length: | 6.2 meters |
| Cargo box width: | 2.3 meters |
| Cargo box height: | 1.5 meters |
| Seating capacity: | 2 people |
| Number of seat rows: | Single cab |
| Front axle load limit: | 6500/7000 kg |
| Rear axle load limit: | 17,500 (two-axle set) kg |
| Tire specifications: | 12.00R20 18PR |
| Number of tires: | 12 pieces |
Motor: Equipped with a permanent magnet synchronous motor, delivering a peak power of 490 kW (approximately 666 hp) and peak torque of 2,800 N·m

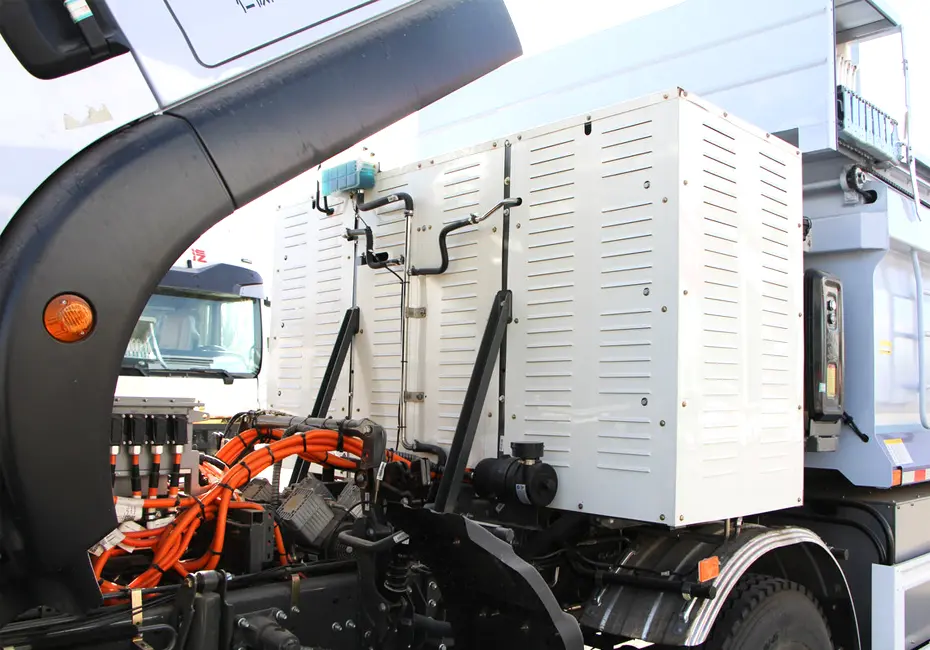

Battery: Powered by a lithium iron phosphate (LFP) battery with a capacity ranging from 282 kWh to 612 kWh, depending on the configuration . The battery supplier is primarily CATL (Contemporary Amperex Technology Co. Limited)
Charging: Supports fast charging via a 600V high-voltage architecture with 600A charging/discharging capability. Battery swap configurations are also available for continuous operation
Model: ZZ3317V526GZ1SBEV
Energy Type: Pure electric
Model: ZZ3314V4861Z1BEV
Energy Type: Pure electric
