Model
ZZ3317V386GB1
Horsepower
400HP
Transmission
HW19710
Overall Dimension
11800*2550*3500 mm

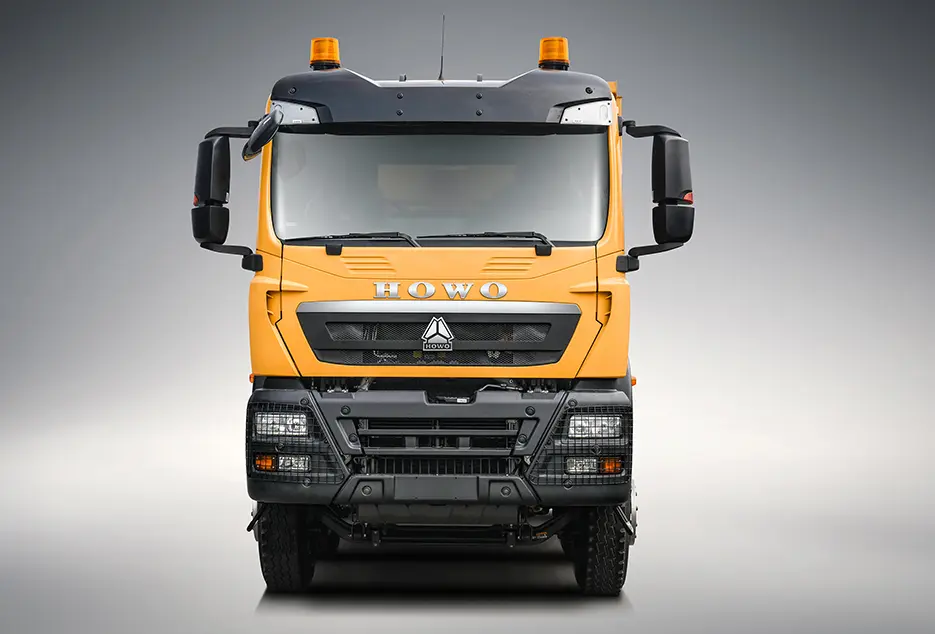

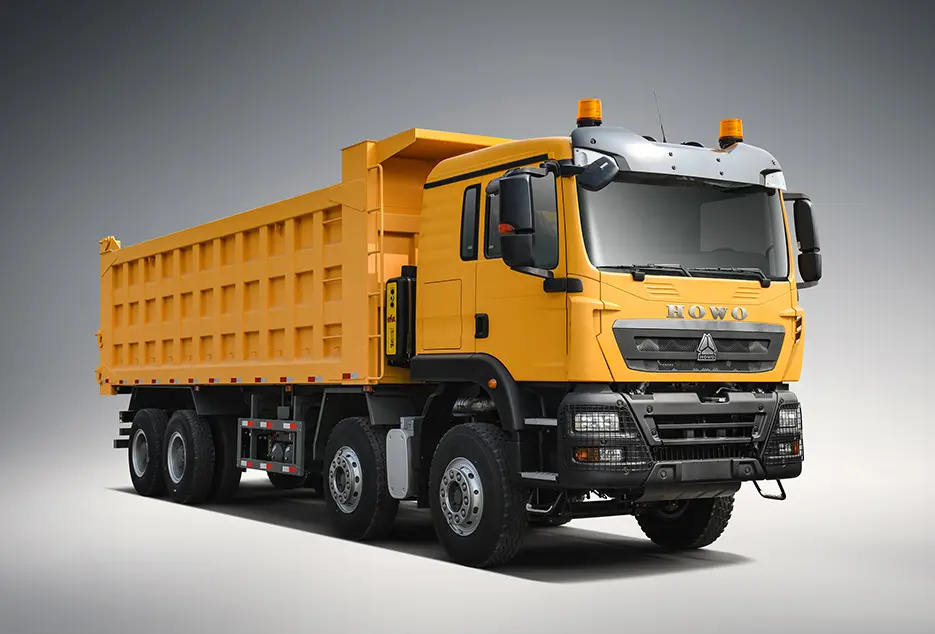

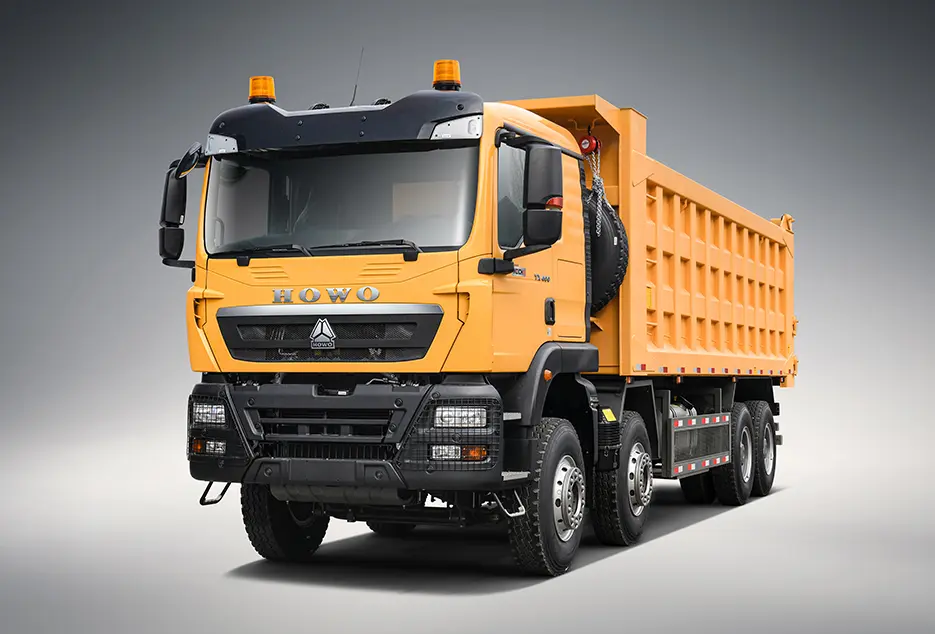

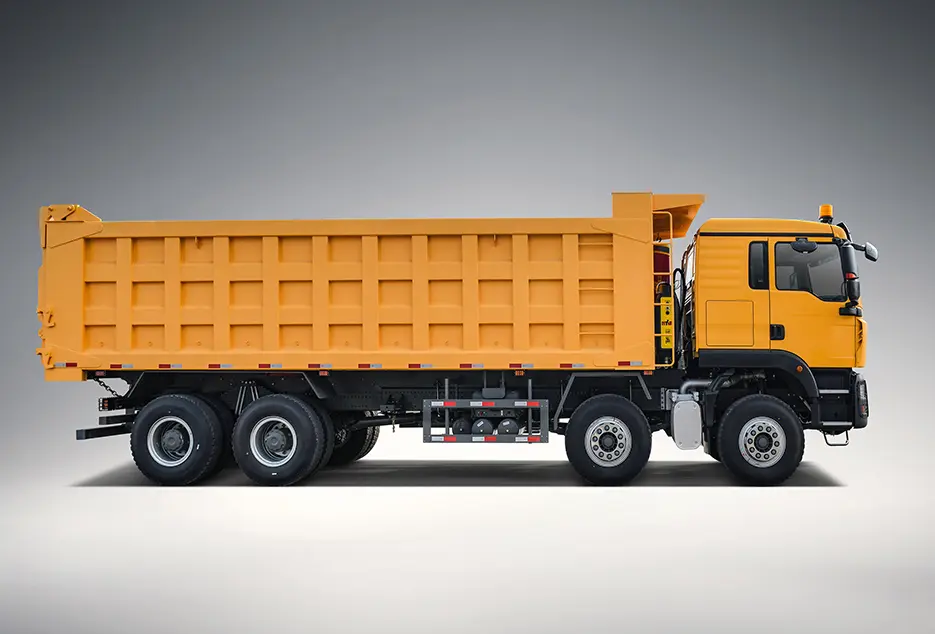

The SINOTRUK HOWO TX 8×4 Dump Truck is a heavy-duty tipper designed for demanding applications such as mining, construction, and infrastructure projects. It combines a robust 8×4 drivetrain with a 400HP engine to deliver reliable performance and high payload capacity.
Powerful 400HP Engine: It is equipped with a WEICHAI WP12S400E201 engine, which provides strong torque and stable performance for heavy-duty hauling .
Heavy-Duty 8×4 Drivetrain: The 8×4 configuration with reinforced axles ensures excellent load-bearing capacity, traction, and stability, making it well-suited for mining, quarry, and construction operations.
| SINOTRUK HOWO TX 400 8X4 DUMP TRUCK | |
| Production Year | 2026, new truck. |
| Cabin | TX-F cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber. |
| High steel bumper, With inter-cooler fence. | |
| Engine | Diesel 4-stroke direct injection diesel engine |
| Engine model: WD615.47, 371HP | |
| 6-cylinder in-line with water cooling, turbo-charging and intercooling | |
| Displacement: 9.726 L | |
| Transmission | HW19710, 10F & 2R, with HW50 PTO |
| Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) | |
| Steering | ZF power steering, model ZF8098, hydraulic steering with power assistance |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Front Axle | VGD95, 9500 KGS |
| Steering with double T-cross section beam | |
| Rear Axle | MCP16ZG, 2*16000KG |
| Pressed axle housing, central Single reduction with hub reduction and with differential locks between wheels and axles. | |
| Chassis | Front suspension:11 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer |
| Rear suspension:11leaf semi-elliptic springs, bogie spring and stabilizer | |
| Brake | Service brake: dual circuit compressed air brake |
| Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels | |
| Auxiliary brake: engine exhaust brake | |
| Electrics | Operating voltage: 24 V, negative grounded |
| Starter: 24 V, 5.4 Kw | |
| Alternator: 3-phase, 28 V, 1500 W | |
| Batteries: 2 x 12 V, 165 Ah | |
| Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light | |
| Fuel Tank | 300L |
| Tire | 12.00R20, Radial (steel wire) Tires. 12+1 Pics |
| Cargo Body | 7300X2300X1700mm, 28.54Cubic Meters |
| Thickness: Floor 8 mm, Side 6 mm | |
| Front Lifting System | |
| Overall Dimension | 11800*2550*3500 mm |
| Color | Optional |

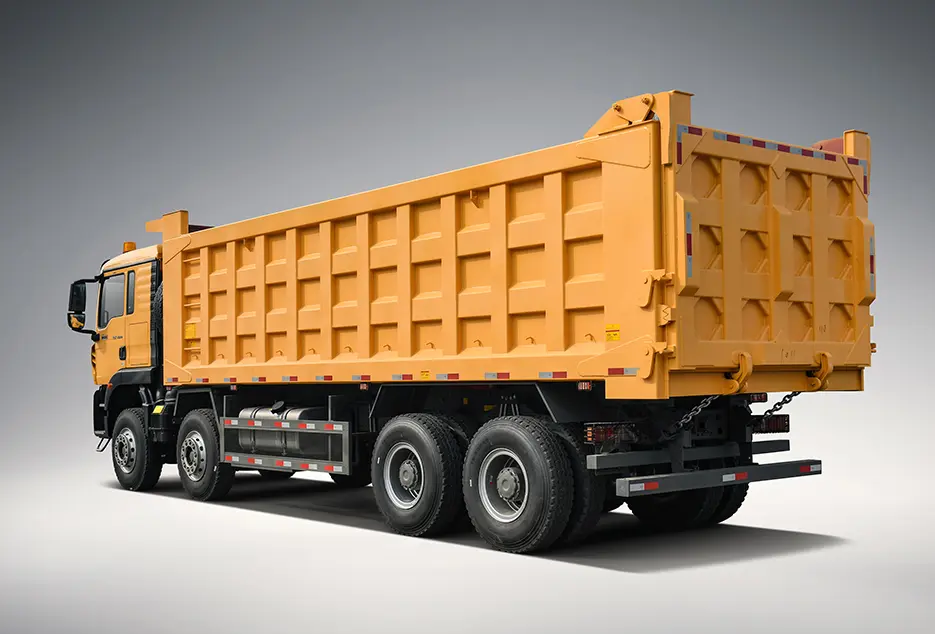

Reinforced Tipper Body: The truck features a front-lifting dump body made of high-strength steel, with a typical capacity of 22m³ and a thickness of 8mm for the floor and 6mm for the sides, ensuring durability and a long service life.
Driver Comfort & Safety: It comes with ABS, EVB (Exhaust Valve Brake), cruise control, air-conditioning, and a driver air suspension seat to ensure safe operation and driving comfort.
