Model
ZZ5187CCYN511KF1
Energy Type
330 HP
Fuel Tank
600L
Rated Load
8.605 tons

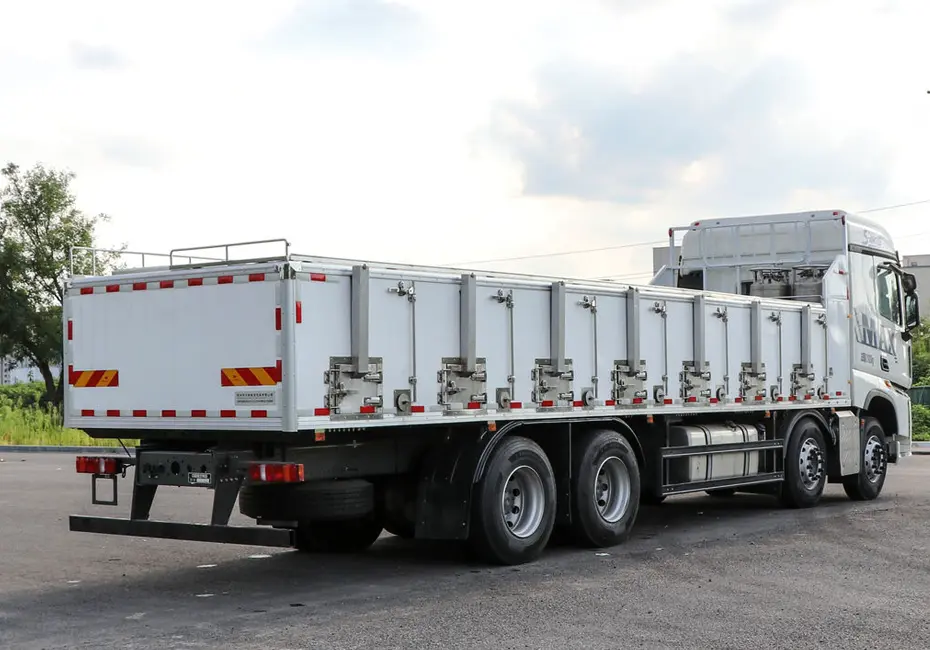

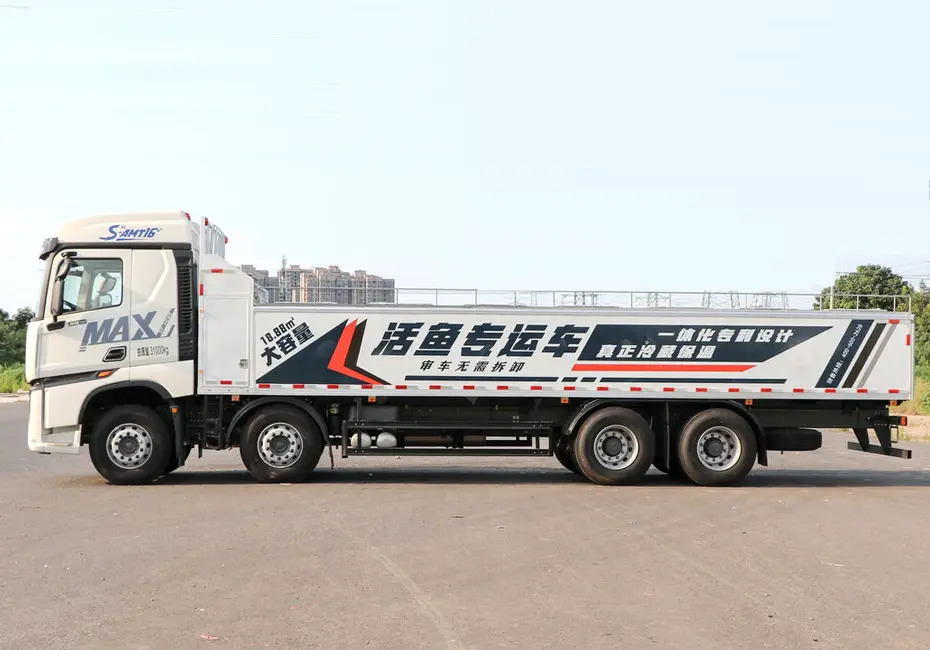

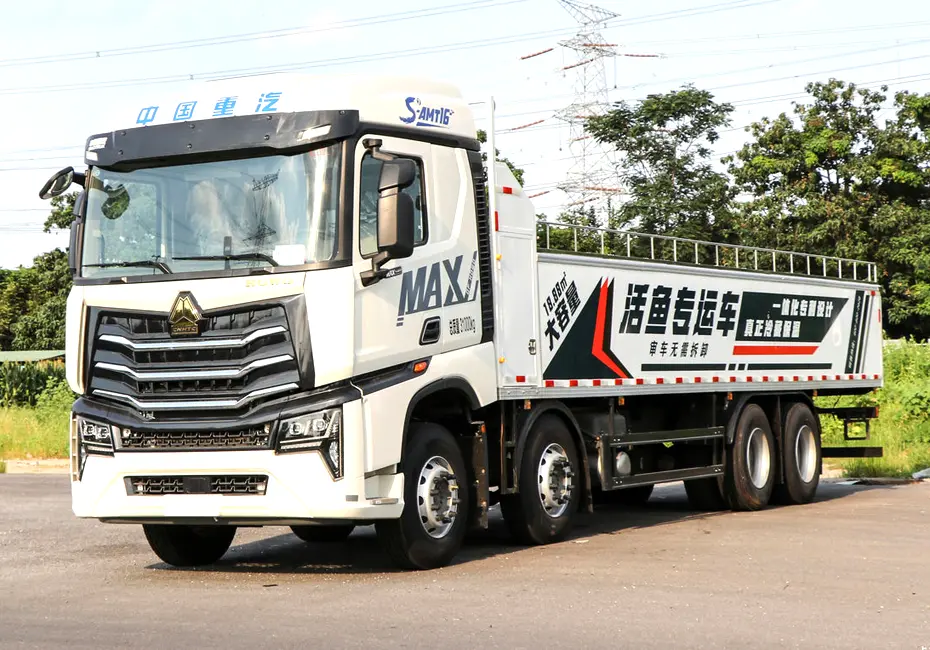

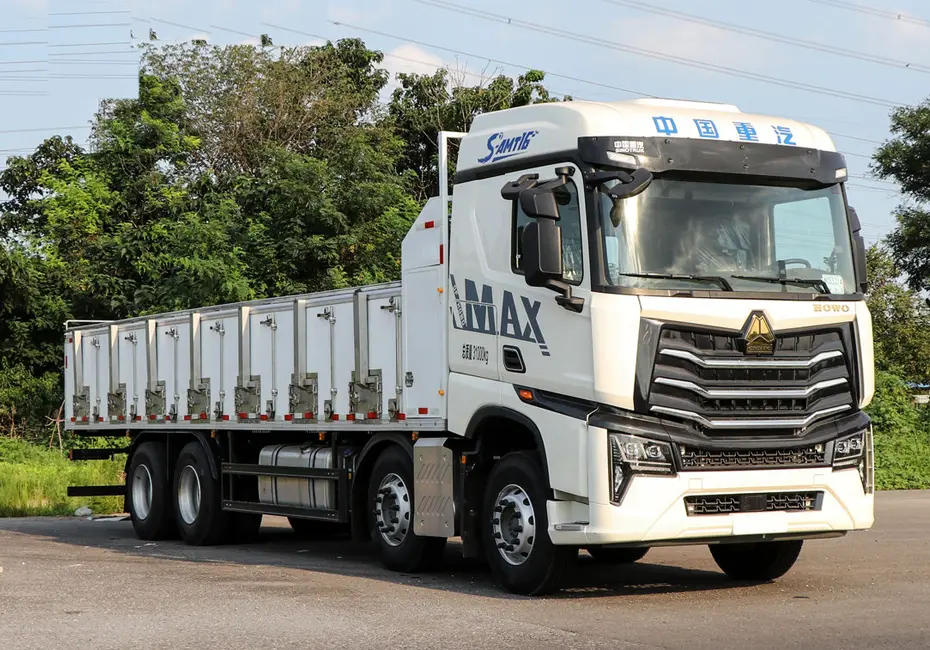

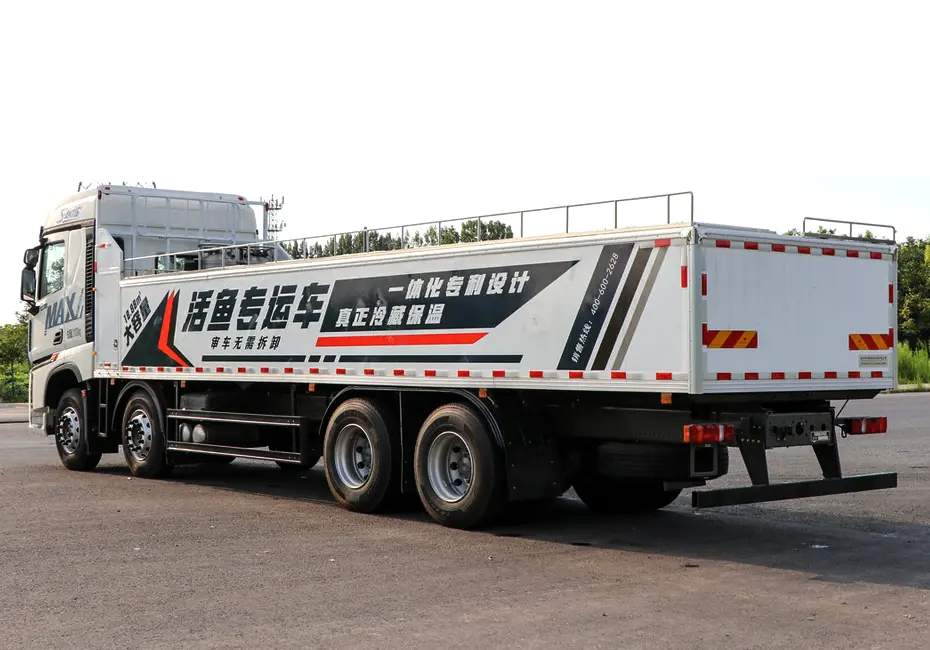

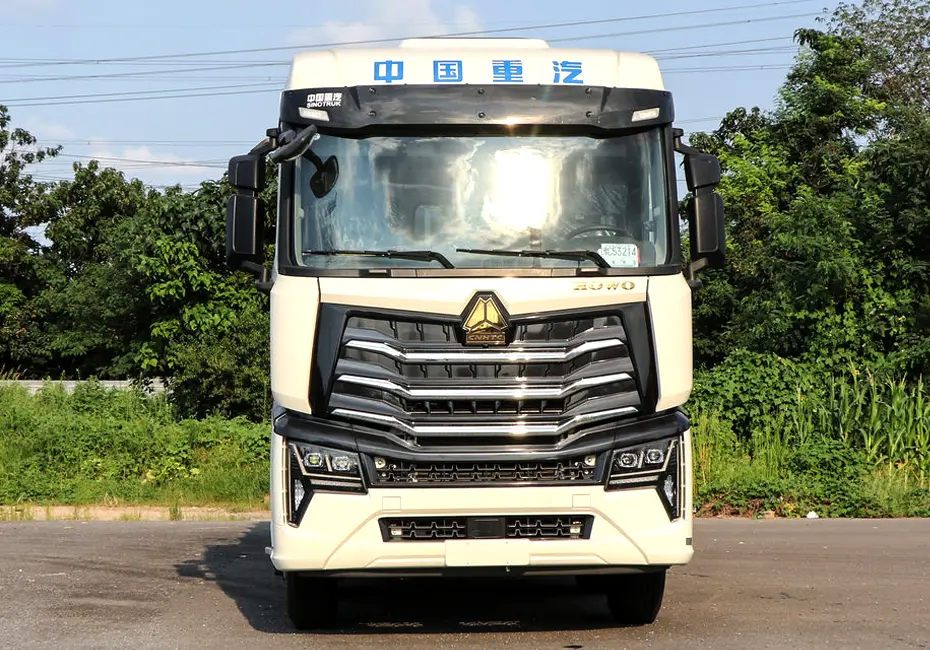

The HOWO MAX 540HP Fresh Seafood Transport Truck is a specialized 8X4 heavy-duty vehicle from SINOTRUK, purpose-built for the high-efficiency live fish and seafood logistics market. It combines a high-horsepower MC13 engine with an AMT transmission and a custom insulated fish tank, designed to meet the demanding timeliness and temperature-control requirements of live aquatic transport.
Purpose-Built Fish Tank: The truck features a 19 m³ fish tank made with polyurethane insulation material, designed to maintain a constant water temperature during transport and minimize mortality rates.
Corrosion-Resistant Chassis: The bottom of the fish tank uses a crossbeam inlay design that effectively prevents water corrosion and rust, ensuring long-term durability in the wet operating environment.
Convenient Loading Access: The tank opening is positioned on the right side and divided into separate compartments, making it easier to load and unload fish.
High Horsepower for Speed: The MC13H.54-61 produces 2500 N·m of torque across a wide 950–1400 rpm band, giving the truck strong pulling power for fully loaded runs through challenging terrain like the Yunnan-Guizhou-Sichuan region.
16-Speed AMT with Overdrive: The HW16C-HD27 transmission features an overdrive top gear (0.84 ratio), optimizing fuel economy at highway cruising speeds while reducing driver fatigue on long hauls.
Voith Retarder Standard: A Voith hydraulic retarder is fitted as standard equipment, providing reliable auxiliary braking on long downhill grades—critical for maintaining safety and speed on seafood routes.
| HOWO TX7 4X2 CARGO TRUCK | |
| Model: | ZZ5187CCYN511KF1 |
| Type: | Cargo Truck with Side Panels |
| Drive Type: | 4X2 |
| Wheelbase: | 5100mm |
| Cargo Box Length: | 6.8 meters |
| Engine: | MC07H.33-61 |
| Transmission: | HW10C-HD12 |
| Rear Axle Ratio: | 4.11 |
| Vehicle Length: | 9 meters |
| Vehicle Width: | 2.55 meters |
| Vehicle Height: | 3.98 meters |
| Front Track: | 2058mm |
| Rear Track: | 1860mm |
| Curb Weight: | 7.88 tons |
| Rated Load: | 9.99 tons |
| Gross Weight: | 18 tons |
| Top Speed: | 89 km/h |
| Front/Rear Overhang: | 1.465/2.435 meters |
| Maximum Power Output: | 240 kW |
| Maximum Horsepower: | 330 hp |
| Maximum Torque: | 1400 N·m |
| Maximum Torque RPM: | 1200-1700 rpm |
| Rated RPM: | 2200 rpm |
| Energy Type: | Diesel |
| Front Axle Description: | 1094 self-adjusting front axle |
| Front Axle Load Capacity: | 6500 kg |
| Frame Dimensions: | 6/232mm |
| Rear Axle Description: | MCJ09BGQ self-adjusting single rear axle |
| Rear Axle Load Capacity: | 11500 kg |
| Gear Ratio: | 4.11 |
| Number of Leaf Springs: | 3/7+3 |
Air Suspension Seat: The driver’s seat is an air suspension seat with ventilation and back airbag adjustment, while the passenger seat folds to expand interior space.
12.3-Inch Central Screen: A full-HD 12.3-inch touchscreen (MP5) is integrated into the dashboard, along with a 360-degree surround view system for maneuverability in tight fish markets.
Practical Amenities: Features include a multi-function steering wheel, electric heated mirrors, automatic air conditioning, and cruise control.
