Model
ZZ3317V356JB1R
Horsepower
371HP
Transmission
HW19710
Overall Dimension
11800*2550*3500 mm

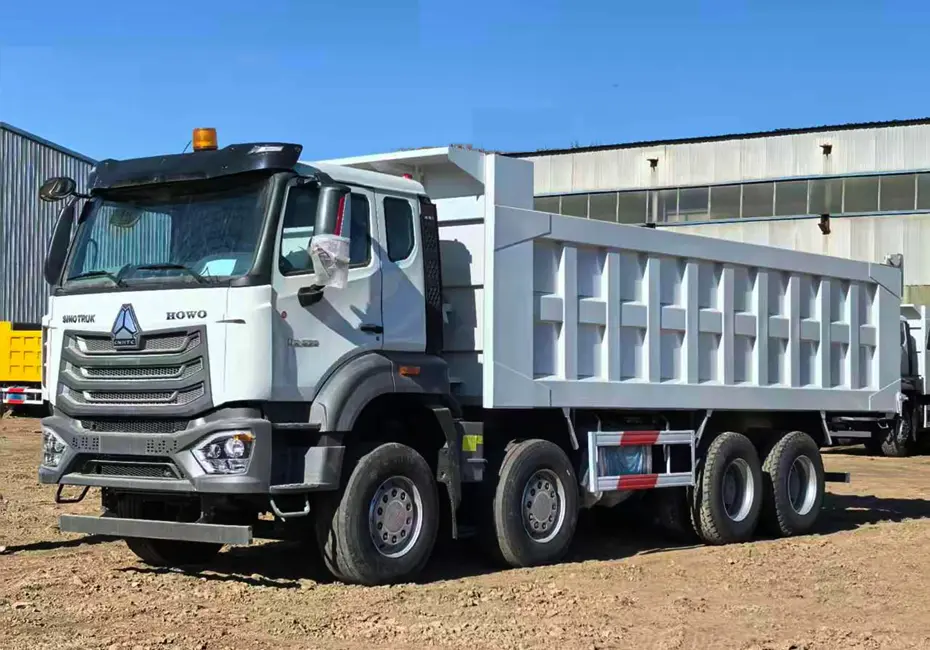

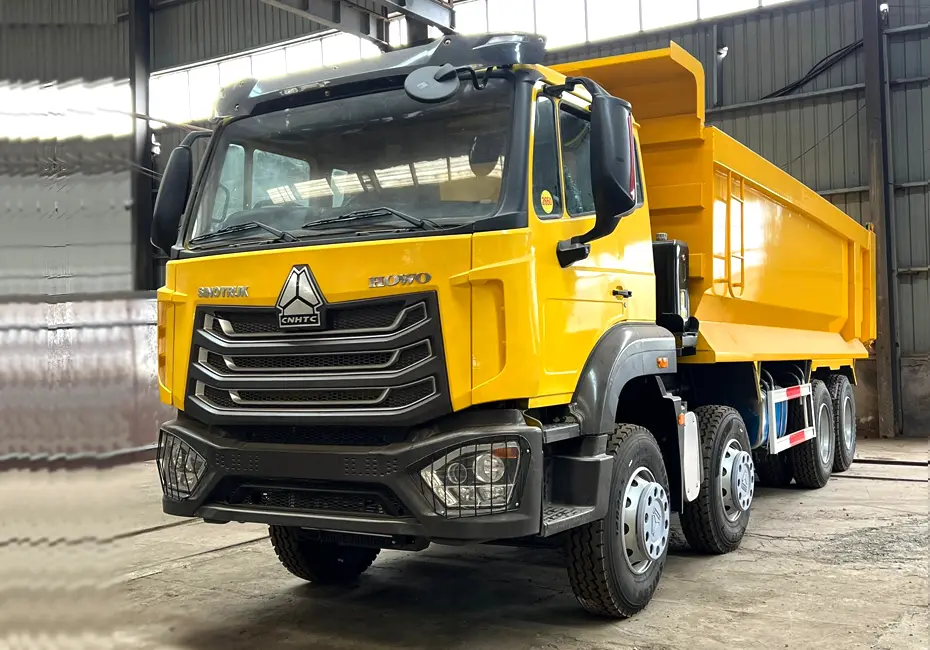

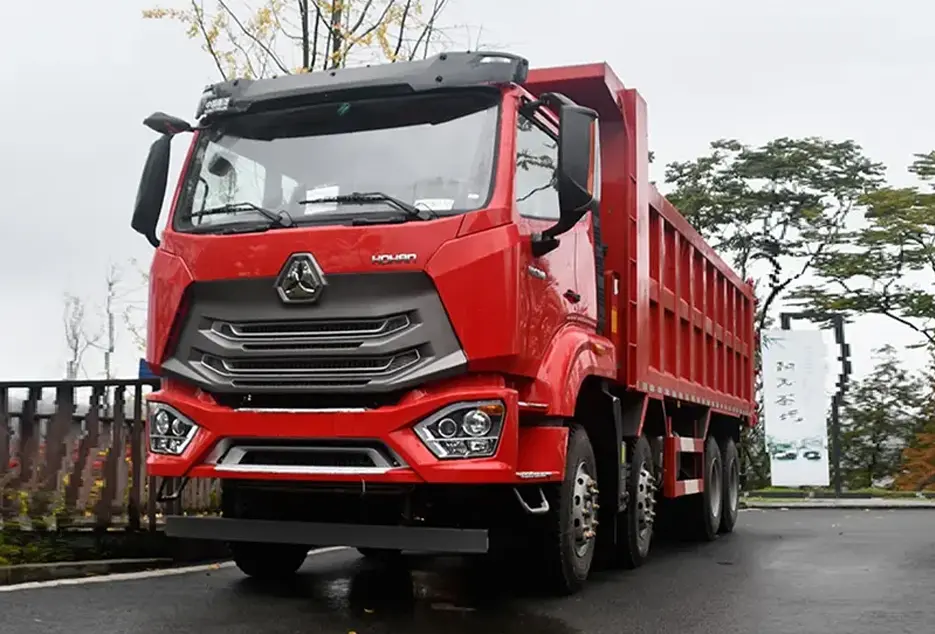

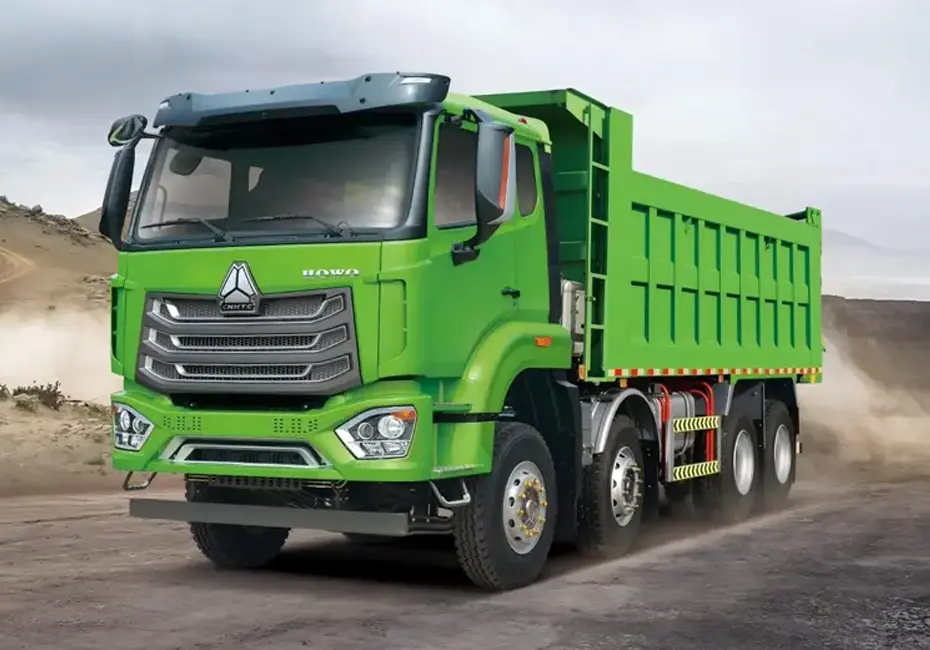

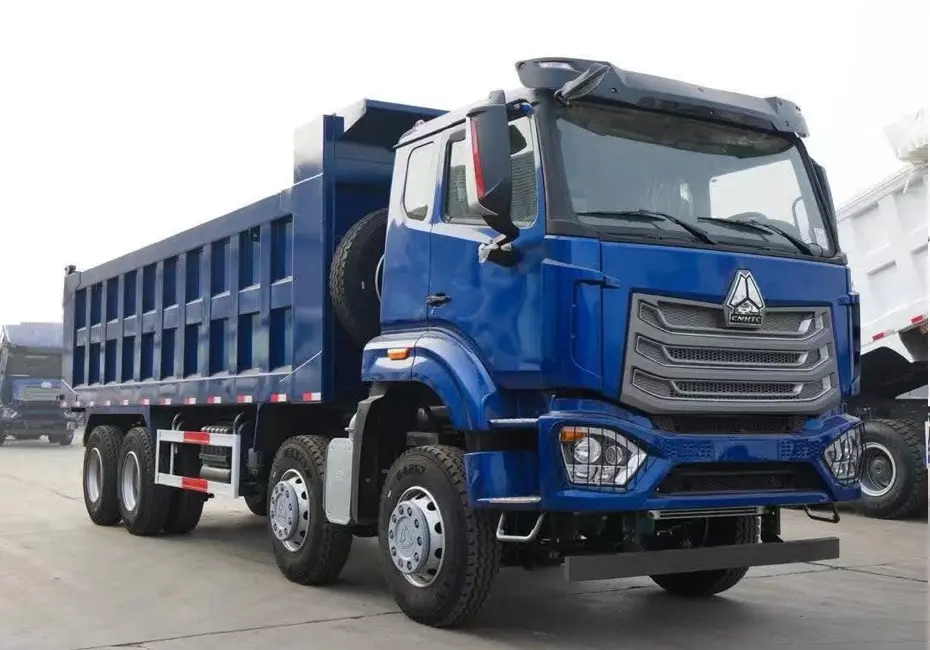

The SINOTRUK HOWO NX 8×4 Dump Truck is a heavy-duty tipper designed for high-volume hauling in mining, construction, and infrastructure projects. Built on a robust four-axle chassis, it offers strong load capacity and stability on demanding terrains.
Power Options: Available with engine power ranging from 266 PS to 440 PS, commonly equipped with proven WEICHAI engines (like the WP10 or WP12 series) .
Drive Configuration: 8×4 drive type with a heavy-duty chassis, typically featuring a 9.5-ton front axle and a 16-ton rear axle to handle substantial payloads.
Transmission: Equipped with a manual SINOTRUK HOWO transmission (often the HW19710 model with 10 forward and 2 reverse gears), known for reliability in tough conditions
| SINOTRUK HOWO NX 8X4 DUMP TRUCK | |
| Production Year | 2026, new truck. |
| Cabin | H77L cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber. High steel bumper, With inter-cooler fence. |
| Engine | Diesel 4-stroke direct injection diesel engine Engine model: WD615.47, 371HP 6-cylinder in-line with water cooling, turbo-charging and intercooling |
| Transmission | HW19710, 10F & 2R, with HW50 PTO Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
| Steering | ZF power steering, model ZF8098, hydraulic steering with power assistance |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Front Axle | VGD95, 9500 KGS Steering with double T-cross section beam |
| Rear Axle | MCP16ZG, 2*16000KG Pressed axle housing, central Single reduction with hub reduction and with differential locks between wheels and axles. |
| Chassis | Front suspension:11 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:11leaf semi-elliptic springs, bogie spring and stabilizer |
| Brake | Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
| Electrics | Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Fuel Tank | 300L |
| Tire | 12.00R20, Radial (steel wire) Tires. 12+1 Pics |
| Cargo Body | 7300X2300X1700mm, 28.54Cubic Meters Thickness: Floor 8 mm, Side 6 mm Front Lifting System |
| Overall Dimension | 11800*2550*3500 mm |
| Color | Optional |
Cargo Body: The dump body capacity generally ranges from 18 to 30 cubic meters, with reinforced high-strength steel (floor thickness of 8mm-10mm) for durability.
Cab & Comfort: Features the H77L cab (single sleeper) with a focus on driver comfort, including air-suspension seats, air conditioning, and an ergonomic layout.
Note: Specifications can vary significantly depending on the model year, emission standard (Euro II to Euro V), and specific configuration for different markets.
