HOWO V9 Pure Electric Dump Truck

Home / Trucks / Electric Trucks / HOWO V9 Pure Electric Dump Truck

Model

ZZ3314V4861Z1BEV
Energy Type

Pure electric
Rated Load

7.17 tons
Wheelbase (mm)

1800+4825+1350

overview

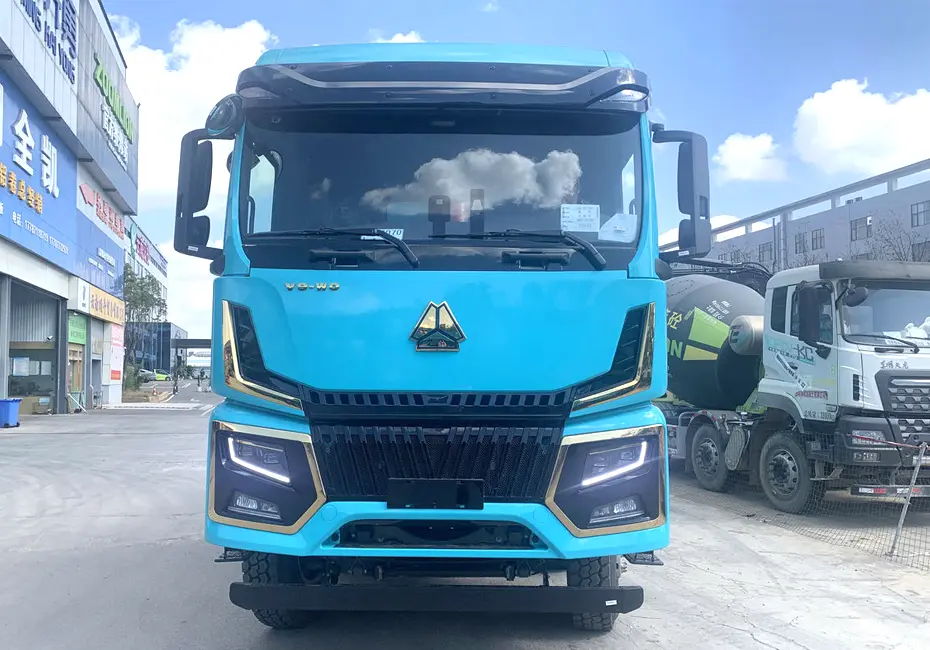

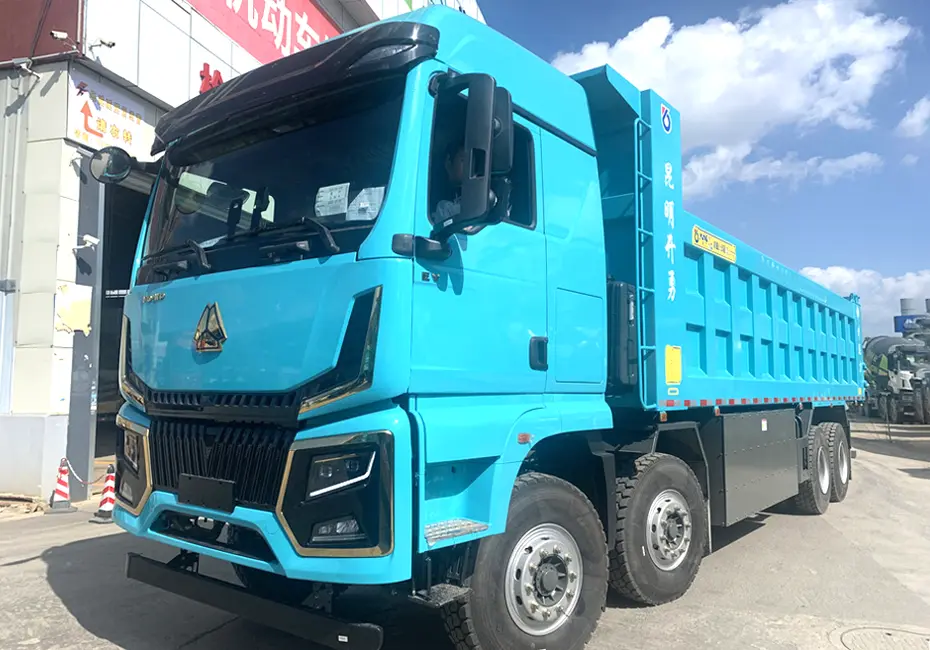

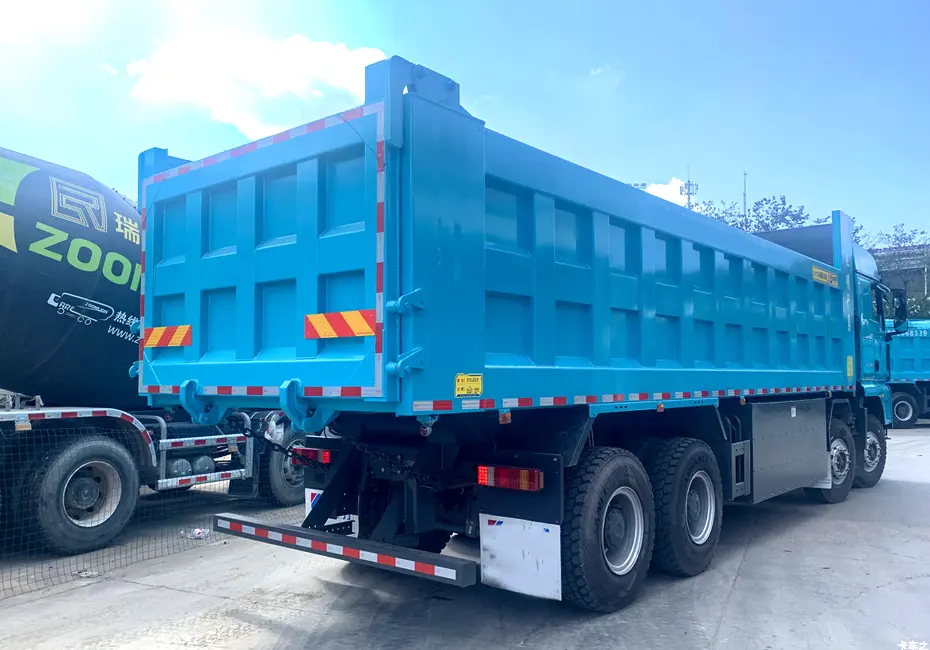

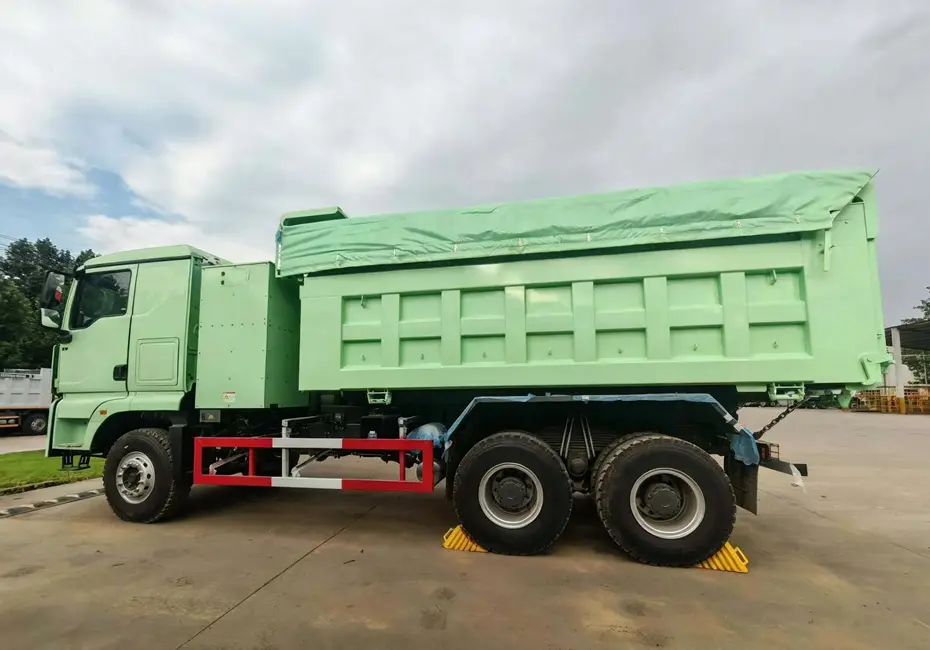

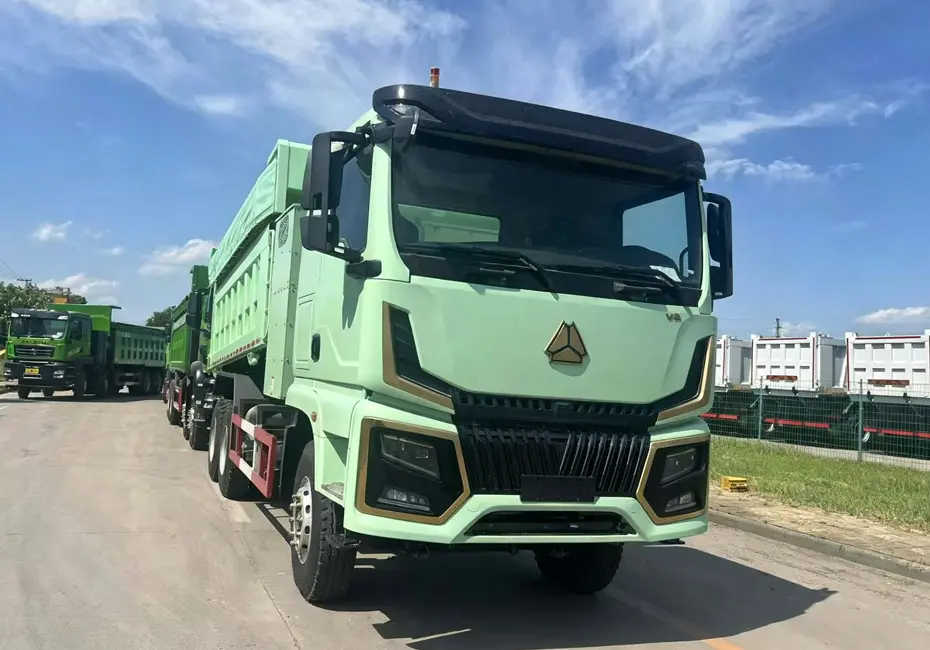

The HOWO V9 Pure Electric 8×4 Dump Truck is a heavy-duty, zero-emission commercial vehicle designed for urban construction and short-haul transport, featuring a high-capacity battery and powerful electric drivetrain.

Core Powertrain & Battery
- Motor: Equipped with a permanent magnet synchronous motor (Model TZ460XSCDW16). It delivers a rated power of 375 kW and a peak power of 550 kW .
- Battery: Powered by a 601 kWh lithium iron phosphate (LFP) battery from CATL (Contemporary Amperex Technology Co. Limited), supporting fast charging .
- Dump Body: The cargo box (dump body) is 8,800 mm long, 2,350 mm wide, and 1,500 mm high .
- Speed: The maximum speed is limited to 80 km/h .

Specifications

HOWO V9 PURE ELECTRIC DUMP TRUCK
Model:	ZZ3314V4861Z1BEV
Drive Type:	8X4
Wheelbase:	1800+4825+1350mm
Body Length:	11.7 meters
Body Width:	2.55 meters
Body Height:	3.85 meters
Gross Weight:	31 metric tons
Rated Load:	7.17 metric tons
Vehicle Weight:	23.7 metric tons
Top Speed:	80 km/h
Tonnage Class:	Heavy-duty truck
Energy Type:	All-electric
Motor 1 Brand:	Sinotruk Wangpai
Motor 1 Model:	TZ460XSCDW16
Motor Type:	Permanent magnet synchronous motor
Total Rated Power:	375 kW
Peak Power:	550 kW
Motor 1 Peak Power:	550 kW
Battery Brand:	CATL
Battery Type:	Lithium iron phosphate battery
Battery Capacity:	601 kWh
Charging Method:	Fast charging
Cargo Box Type:	Dump truck
Cargo Box Length:	8.8 meters
Cargo Box Width:	2.35 meters
Cargo Box Height:	1.5 meters
Front Axle Load Limit:	6,500/7,000 kg
Rear Axle Load Limit:	17,500 (two-axle configuration) kg
Tire Specification:	12.00R20 18PR
Number of Tires:	12

🚛Chassis & Dimensions
- Drive Configuration: 8×4 (four axles, eight wheels)
- Body Size: The truck measures approximately 11,700 mm in length, 2,550 mm in width, and 3,850 mm in height
- Wheelbase: 1,800 + 4,825 + 1,350 mm
- Weight: It has a total mass of 31,000 kg and a rated payload capacity of 7,170 kg
- Dump Body: The cargo box (dump body) is 8,800 mm long, 2,350 mm wide, and 1,500 mm high

Interior

Excellent Ergonomic Design

All controls, instrument panels, and displays are intuitively arranged for easy access and quick information retrieval, minimizing distractions and maximizing driver focus. The pneumatically controlled steering wheel is fully adjustable for both height and angle.
High Comfort

Featuring an adjustable air suspension seat, the HOWO-TX offers multi-directional electric adjustment and lumbar support, allowing drivers to personalize their seating for optimal comfort. Crafted from high-quality, breathable materials, the seat effectively reduces fatigue during long drives.
All-Around Vision, Everything in Sight

Featuring wide-view design, four-way monitoring system (optional), and observation window (optional), the driver is accessible to comprehensive visual information about the surrounding environment and traffic dynamics of the vehicle, thus making accurate assessments, and safely responding to various situations.
Strong Power, Efficient and Reliable

Meticulous design and optimization of the HOWO-TX powertrain, combined with careful component matching and integration, delivers seamless power transmission, maximized efficiency, enhanced vehicle performance, and significantly reduced fuel and maintenance expenses.
