HOWO MAX 6x4 Tractor Truck | Sinotruk 6x4 Tractor Head For Sale

Home / Trucks / Tractor Trucks / HOWO MAX 6×4 Tractor Truck

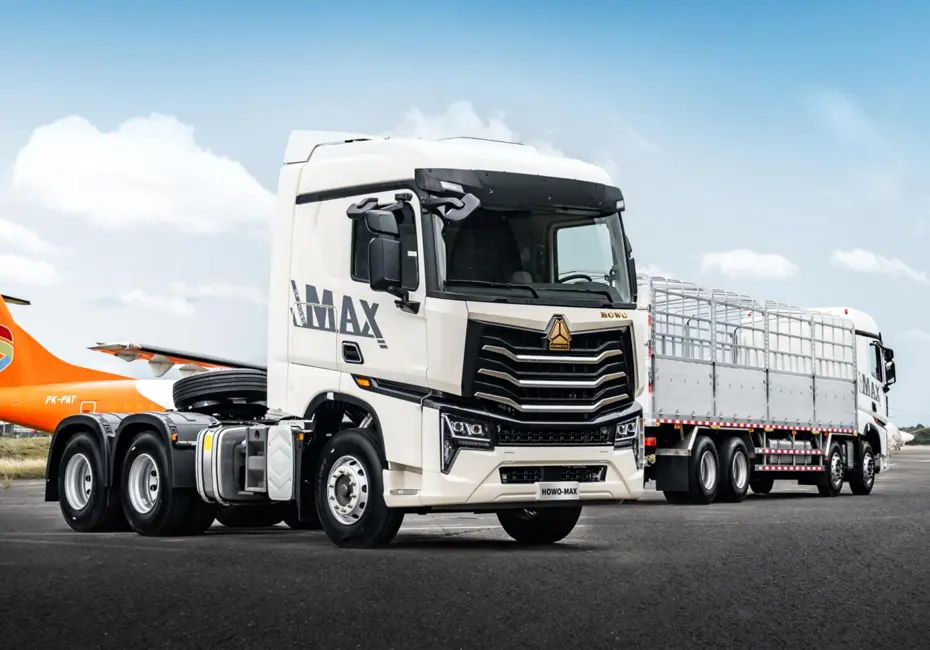

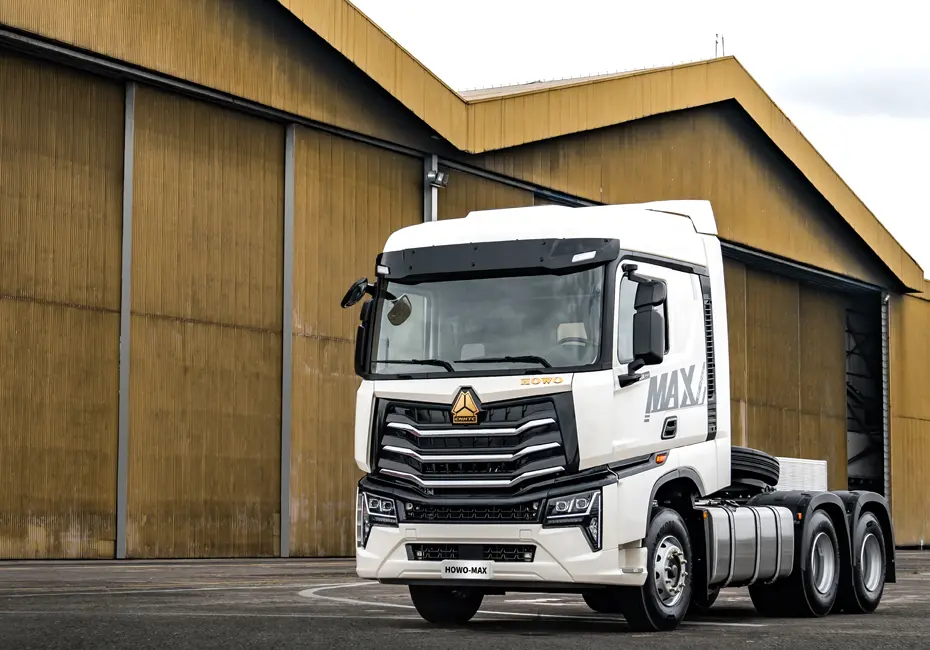

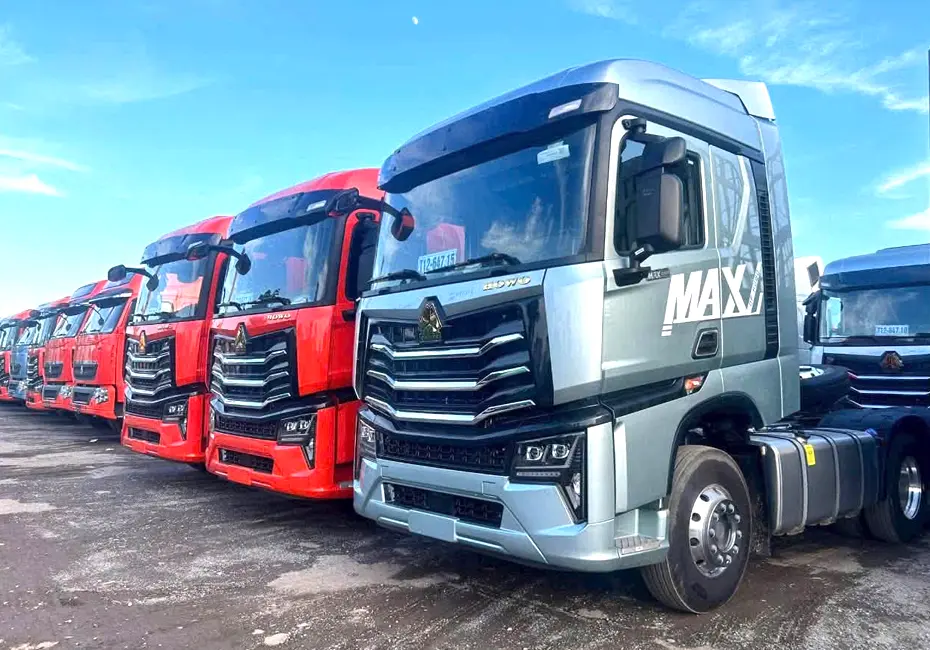

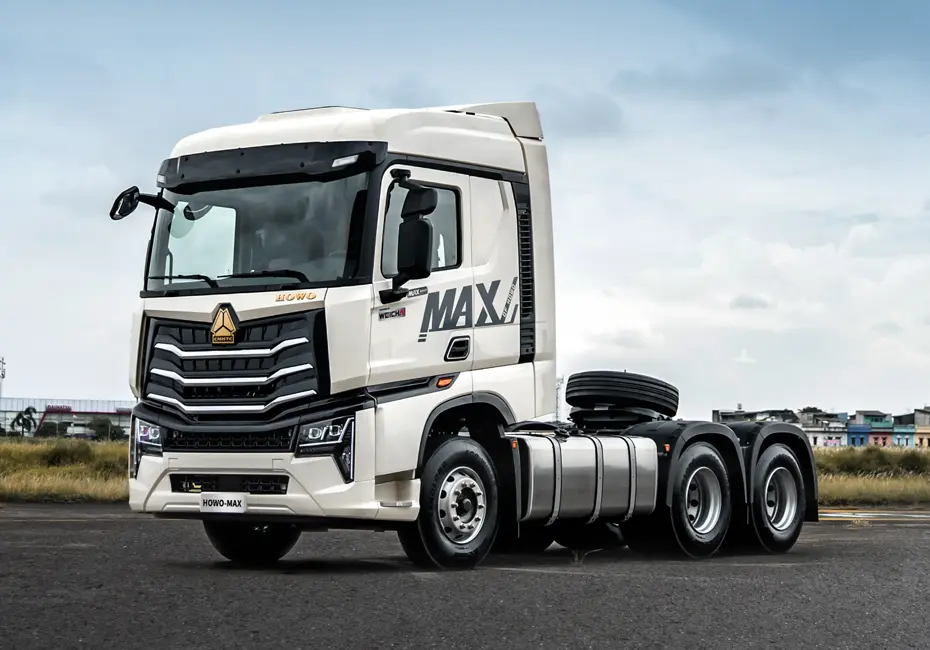

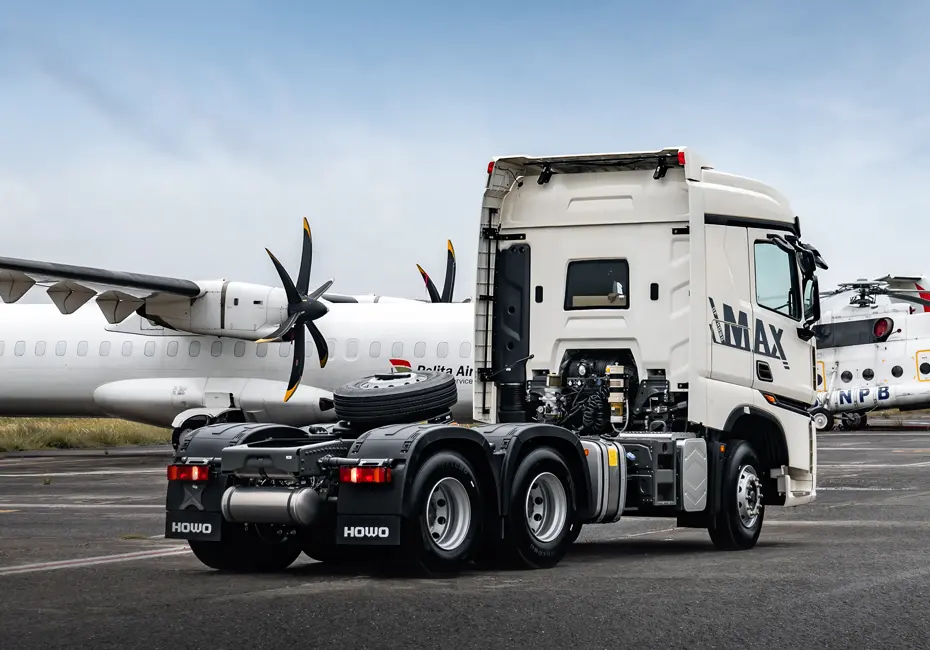

HOWO MAX 6×4 Tractor Truck

Model

ZZ4257V344KC1R
Horsepower

430HP
Engine

WD615.47
Transmission

HW19710

overview

The HOWO MAX 430HP is powered by the MC series high-pressure common rail engine, which delivers a maximum torque of 2,500 N·m across a low RPM range (1000–1400 rpm). This low-speed, high-torque characteristic significantly reduces fuel consumption, especially in mountainous areas, with a measured comprehensive fuel consumption of ≤32L/100km. It is paired with a 16-speed transmission featuring Hill Assist and Predictive Shift functions, with a shift response time of under 0.8 seconds.

Cab & Comfort

The MAX-E cab is designed for driver comfort and operational intelligence. It features a 7-inch Full HD LCD (MP5) screen, air-suspension driver’s seat with backrest airbag support, and a folding passenger seat .

The truck also supports remote OTA upgrades and fuel consumption analysis, with an abnormal working condition warning accuracy rate of over 95% to reduce unplanned downtime .

Specifications

HOWO MAX 6X4 TRACTOR TRUCK
Model	HOWO MAX
Cab	MAX-E
Drive	6X4
Horsepower	480 horsepower
Transmission	Manual transmission
Engine	WP13.480E62
Gear box	HW16C-WY
Tire	12R22.5
Fuel tank	Dual fuel tank 860L+200L
Screen	7-inch Full HD LCD (MP5)
Exhaust system	ABS(4S/4M)+ESC
Speed ratio	3.36
Other standard configurations	Diamond saddle Flashlight integrated electric lifting Split fender LDWS+FCWS with radar Quadrangular camera Terminal emission monitoring device Fire extinguisher Air bag + backrest air bag support (main seat) Folding passenger seat

Safety & Durability

The chassis uses a double-layer high-strength steel frame (yield strength ≥ 700MPa) and reinforced 8+10 leaf spring suspension, allowing a maximum GCW (gross combination weight) of 49 tons . Safety features include ABS + ESC, LDWS (Lane Departure Warning System) + FCWS (Forward Collision Warning System), and a quadrangular camera for enhanced visibility.

The 6×4 all-wheel drive system with inter-wheel differential lock improves traction efficiency by 40% on muddy roads, making it well-suited for unpaved mining and construction sites.

Interior

Excellent Ergonomic Design

All controls, instrument panels, and displays are intuitively arranged for easy access and quick information retrieval, minimizing distractions and maximizing driver focus. The pneumatically controlled steering wheel is fully adjustable for both height and angle.
High Comfort

Featuring an adjustable air suspension seat, the HOWO-TX offers multi-directional electric adjustment and lumbar support, allowing drivers to personalize their seating for optimal comfort. Crafted from high-quality, breathable materials, the seat effectively reduces fatigue during long drives.
All-Around Vision, Everything in Sight

Featuring wide-view design, four-way monitoring system (optional), and observation window (optional), the driver is accessible to comprehensive visual information about the surrounding environment and traffic dynamics of the vehicle, thus making accurate assessments, and safely responding to various situations.
Strong Power, Efficient and Reliable

Meticulous design and optimization of the HOWO-TX powertrain, combined with careful component matching and integration, delivers seamless power transmission, maximized efficiency, enhanced vehicle performance, and significantly reduced fuel and maintenance expenses.
