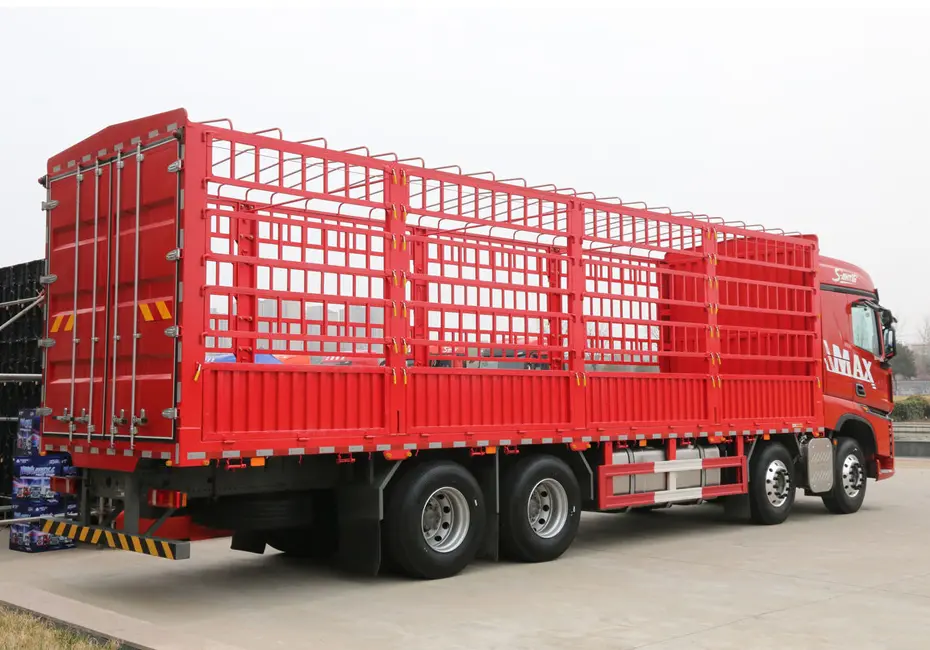

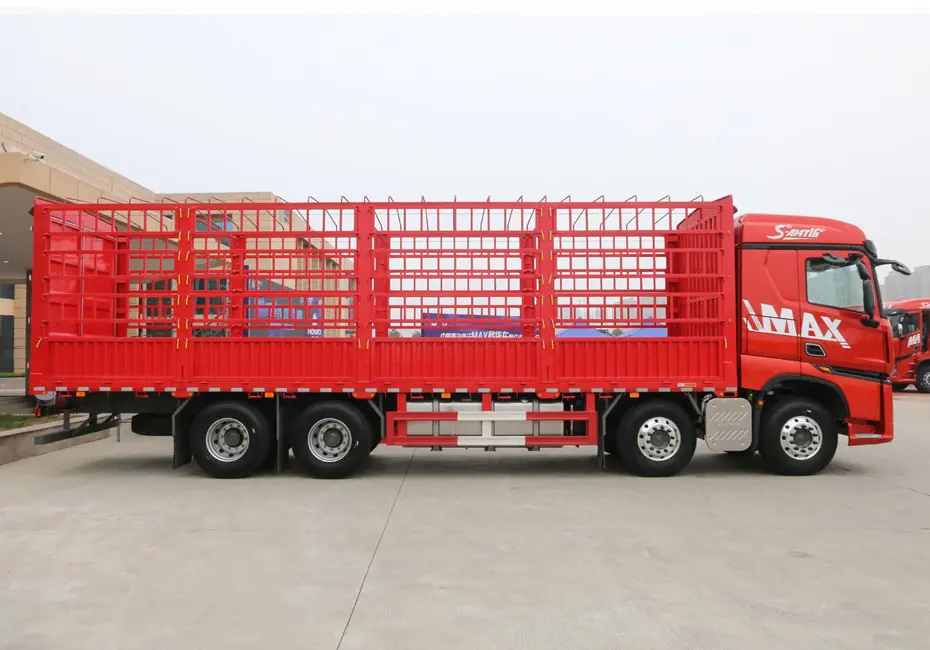

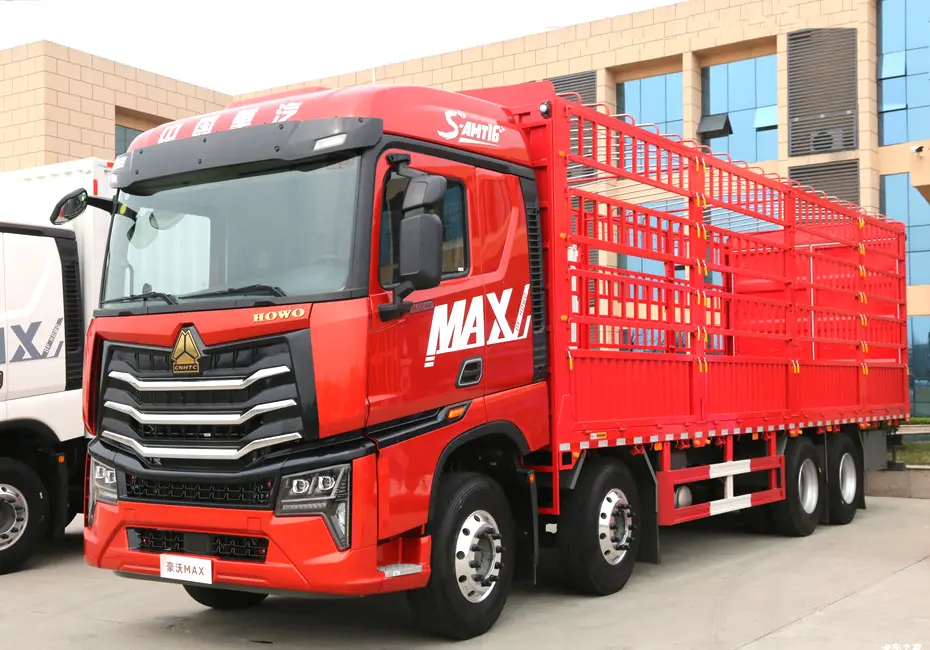

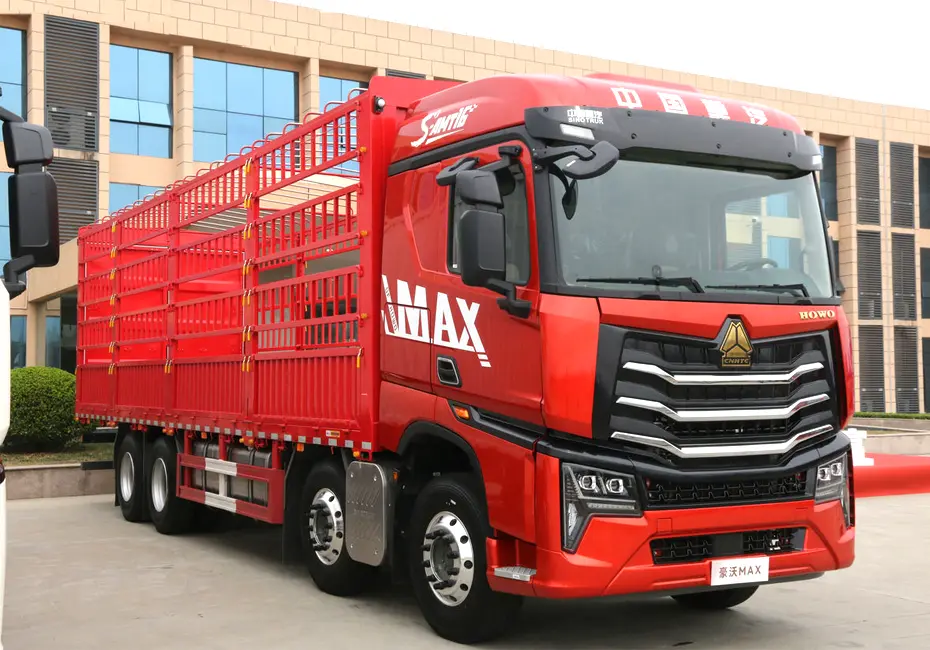

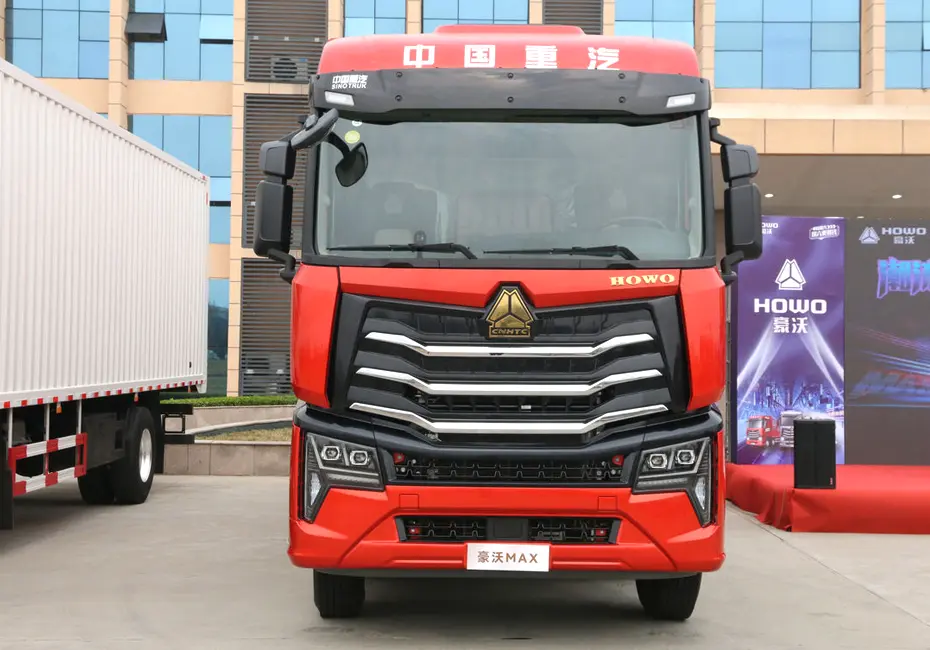

HOWO MAX Half-Bed Fence Cargo Truck

Model

ZZ5317CCYV446KF1
Energy Type

490 HP
Rated Load

18.79 tons
Wheelbase（mm）

1950+4450+1350

overview

The HOWO MAX 490HP Half-Bed Cargo Truck is a heavy-duty 8X4 vehicle from SINOTRUK, purpose-built for high-efficiency logistics such as green-channel (agricultural produce) and general cargo transport. It pairs the reliable MC11H engine with a 16-speed AMT and a spacious flat-floor cab, offering a compelling balance of power, efficiency, and driver comfort.

🛠️ Chassis & Efficiency
- Reinforced Axles: Features a 6500/7000 kg front axle and a 17,500 kg rear axle group, with a 3.36 rear axle ratio optimized for highway fuel economy.
- Lightweight Suspension: Uses a 3/3/4 leaf spring setup, balancing load-bearing capacity with weight reduction.
- Single-Layer Frame: A 8/280 mm single-layer frame provides structural strength while contributing to the vehicle’s overall lightweight design.

Specifications

HOWO MAX HALF-BED FENCE CARGO TRUCK
Model:	ZZ5317CCYV446KF1
Type:	Cargo Truck with Cargo Bed
Drive Type:	8X4
Wheelbase:	1950+4450+1350mm
Cargo Box Length Class:	9.6 meters
Engine:	MC11H.49-61
Transmission:	16-speed gearbox
Rear Axle Ratio:	3.36
Vehicle Length:	12 meters
Vehicle Width:	2.55 meters
Vehicle Height:	3.93 meters
Front Track:	1996/1996mm
Rear Track:	1830/1830mm
Curb Weight:	12.08 tons
Rated Load:	18.79 tons
Gross Weight:	31 tons
Top Speed:	89 km/h
Tonnage Class:	Heavy-duty truck
Front/Rear Overhang:	1.465/2.785 meters
Energy Type:	Diesel
Engine Model:	China National Heavy Duty Truck MC11H.49-61
Engine Info:	CNHTC MC11
Number of Cylinders:	6 cylinders
Fuel Type:	Diesel
Cylinder Arrangement:	Inline
Displacement:	11.05L
Maximum Output Power:	363 kW
Maximum Horsepower:	490 hp
Maximum Torque:	2350 N·m
Maximum Torque RPM:	950-1400 rpm
Rated RPM:	1900 rpm

⚡ Powertrain & Efficiency
- High Torque for Loaded Running: The MC11H.49-61 delivers 2350 N·m of torque across a wide 950–1400 rpm band, providing strong pulling power for fully loaded operations on highways and challenging terrain.
- 16-Speed AMT: The HW16-WY automated manual transmission reduces driver fatigue on long hauls and optimizes shift points for fuel efficiency.
- Extended Range: The 1000L fuel tank supports a driving range of over 3,000 km, allowing long-distance runs without frequent refueling stops .

Interior

Excellent Ergonomic Design

All controls, instrument panels, and displays are intuitively arranged for easy access and quick information retrieval, minimizing distractions and maximizing driver focus. The pneumatically controlled steering wheel is fully adjustable for both height and angle.
High Comfort

Featuring an adjustable air suspension seat, the HOWO-TX offers multi-directional electric adjustment and lumbar support, allowing drivers to personalize their seating for optimal comfort. Crafted from high-quality, breathable materials, the seat effectively reduces fatigue during long drives.
All-Around Vision, Everything in Sight

Featuring wide-view design, four-way monitoring system (optional), and observation window (optional), the driver is accessible to comprehensive visual information about the surrounding environment and traffic dynamics of the vehicle, thus making accurate assessments, and safely responding to various situations.
Strong Power, Efficient and Reliable

Meticulous design and optimization of the HOWO-TX powertrain, combined with careful component matching and integration, delivers seamless power transmission, maximized efficiency, enhanced vehicle performance, and significantly reduced fuel and maintenance expenses.
