HOWO TS7 4X2 Cargo Truck

Home / Trucks / Cargo Trucks / HOWO TS7 4X2 Cargo Truck

Model

ZZ5187CCYN511KF1
Energy Type

330 HP
Fuel Tank

600L
Rated Load

8.605 tons

overview

The HOWO TS7 4X2 Cargo Truck (330 HP) is a heavy-duty logistics vehicle from SINOTRUK, designed as a versatile and efficient solution for regional distribution, agricultural transport, and general cargo hauling. It pairs the proven MAN-origin MC07H engine with a durable chassis and a driver-focused cab.

🛠️ Chassis & Efficiency
- Reinforced Axles: Equipped with a 1094 self-adjusting front axle (6.5T capacity) and an MCJ09BGQ self-adjusting rear axle (11.5T capacity), with a 4.11 ratio optimized for a balance of pulling power and highway fuel efficiency.
- Safety Braking: Uses air brakes with a spring-energy parking brake for reliable stopping under heavy loads.
- Tire Options: Commonly fitted with 295/80R22.5 tires on six wheels.

Specifications

HOWO TX7 4X2 CARGO TRUCK
Model:	ZZ5187CCYN511KF1
Type:	Cargo Truck with Side Panels
Drive Type:	4X2
Wheelbase:	5100mm
Cargo Box Length:	6.8 meters
Engine:	MC07H.33-61
Transmission:	HW10C-HD12
Rear Axle Ratio:	4.11
Vehicle Length:	9 meters
Vehicle Width:	2.55 meters
Vehicle Height:	3.98 meters
Front Track:	2058mm
Rear Track:	1860mm
Curb Weight:	7.88 tons
Rated Load:	9.99 tons
Gross Weight:	18 tons
Top Speed:	89 km/h
Front/Rear Overhang:	1.465/2.435 meters
Maximum Power Output:	240 kW
Maximum Horsepower:	330 hp
Maximum Torque:	1400 N·m
Maximum Torque RPM:	1200-1700 rpm
Rated RPM:	2200 rpm
Energy Type:	Diesel
Front Axle Description:	1094 self-adjusting front axle
Front Axle Load Capacity:	6500 kg
Frame Dimensions:	6/232mm
Rear Axle Description:	MCJ09BGQ self-adjusting single rear axle
Rear Axle Load Capacity:	11500 kg
Gear Ratio:	4.11
Number of Leaf Springs:	3/7+3

📦 Body & Application Flexibility

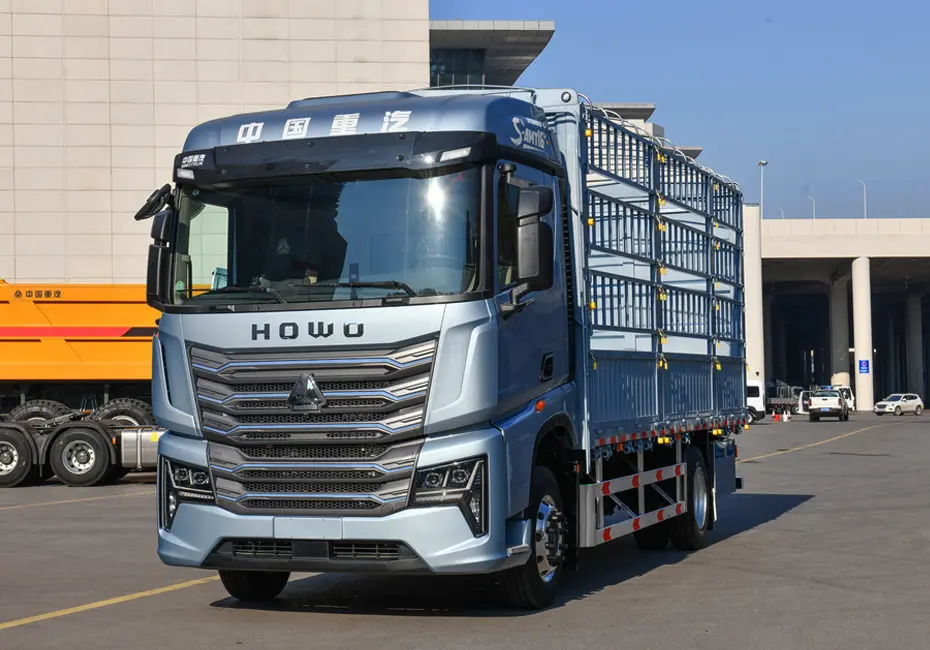

- Stake Truck : The standard 6.75m stake body is ideal for regional distribution and green-channel (agricultural) transport, with a 9.99-ton rated load.
- Box Truck: Can be fitted with a 6.83m × 2.42m × 2.6m enclosed cargo box for high-volume intercity parcel and general cargo hauling.
- Refrigerated Truck: Also available as a chassis for cold-chain applications, supporting refrigerated box bodies for temperature-sensitive goods .

Interior

Excellent Ergonomic Design

All controls, instrument panels, and displays are intuitively arranged for easy access and quick information retrieval, minimizing distractions and maximizing driver focus. The pneumatically controlled steering wheel is fully adjustable for both height and angle.
High Comfort

Featuring an adjustable air suspension seat, the HOWO-TX offers multi-directional electric adjustment and lumbar support, allowing drivers to personalize their seating for optimal comfort. Crafted from high-quality, breathable materials, the seat effectively reduces fatigue during long drives.
All-Around Vision, Everything in Sight

Featuring wide-view design, four-way monitoring system (optional), and observation window (optional), the driver is accessible to comprehensive visual information about the surrounding environment and traffic dynamics of the vehicle, thus making accurate assessments, and safely responding to various situations.
Strong Power, Efficient and Reliable

Meticulous design and optimization of the HOWO-TX powertrain, combined with careful component matching and integration, delivers seamless power transmission, maximized efficiency, enhanced vehicle performance, and significantly reduced fuel and maintenance expenses.
