Model
SX3319XD426
Horsepower
460HP
Rated load
15.37 tons
Wheelbase （mm）
1800+4175+1400

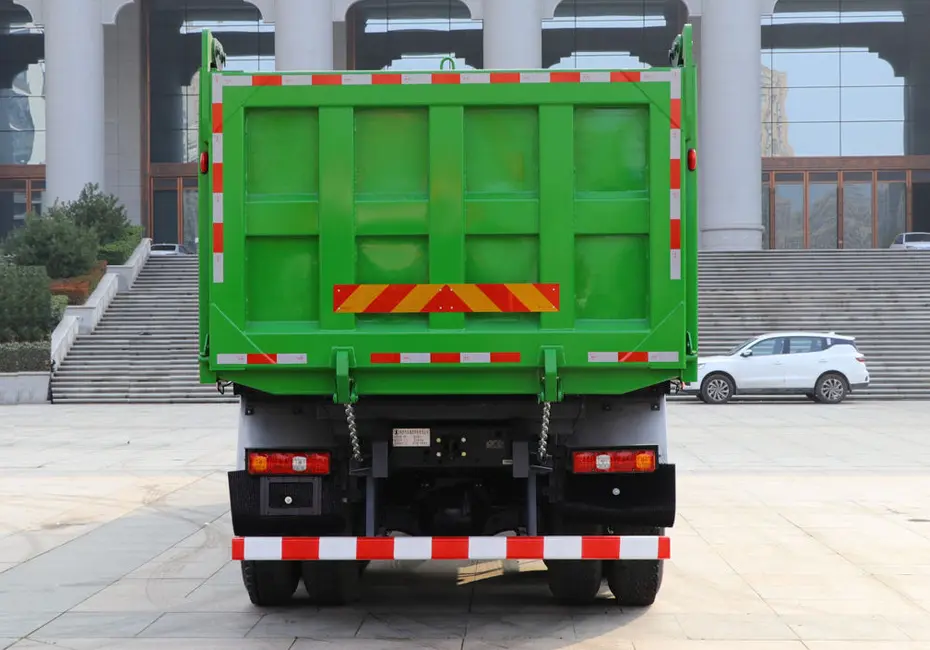

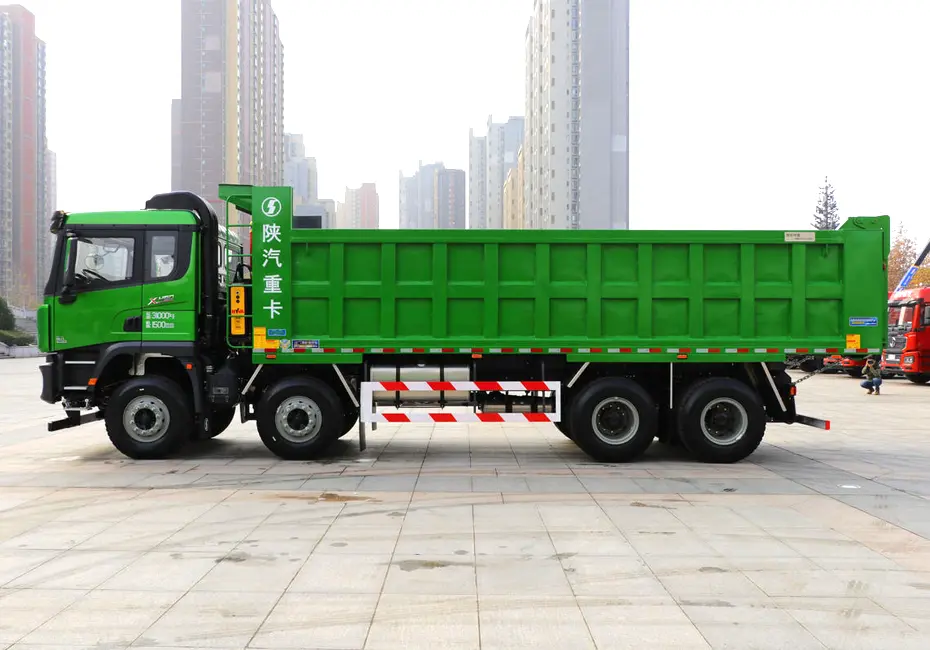

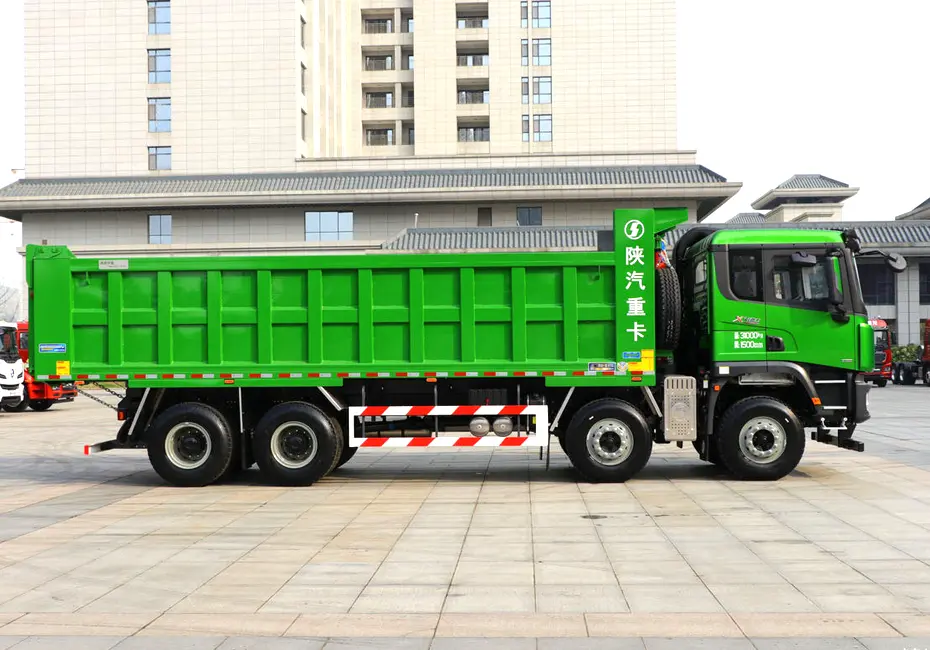

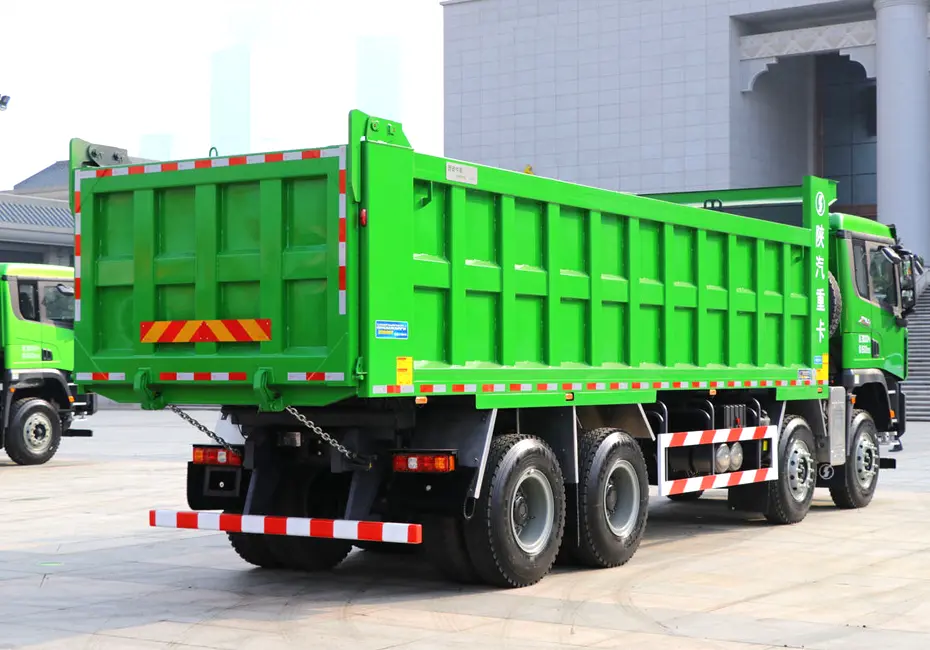

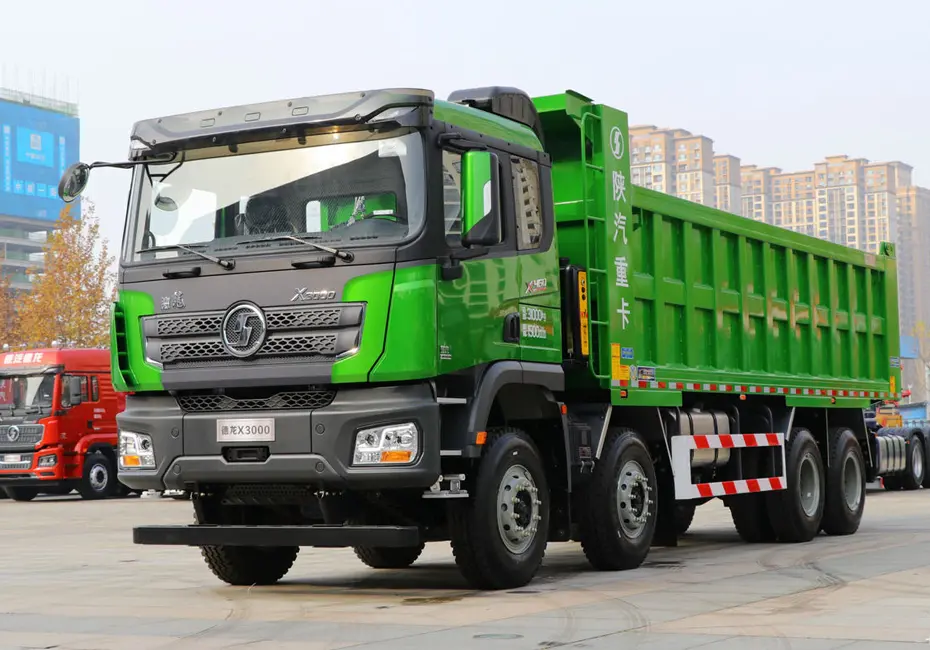

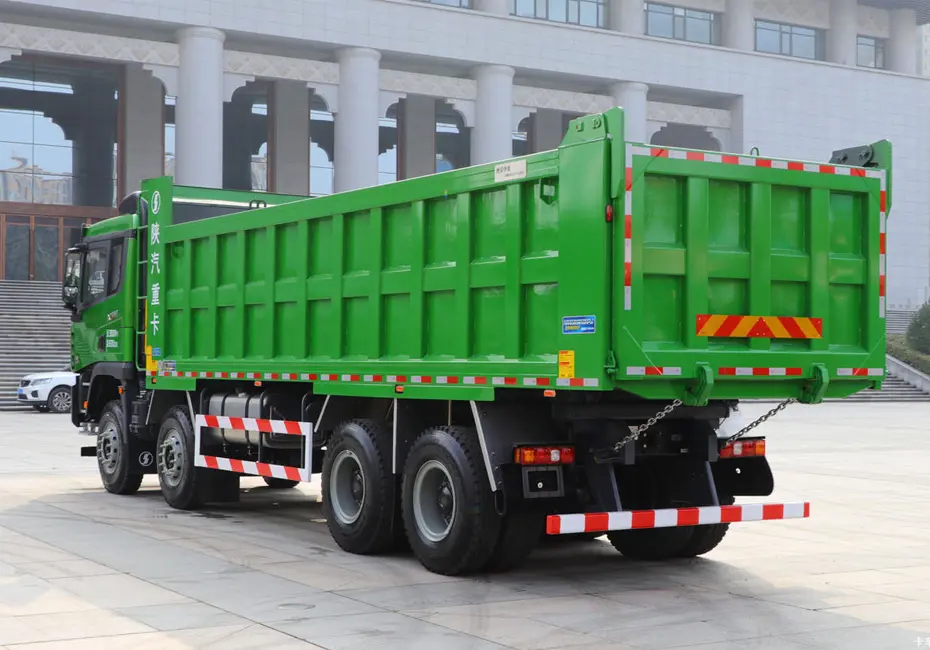

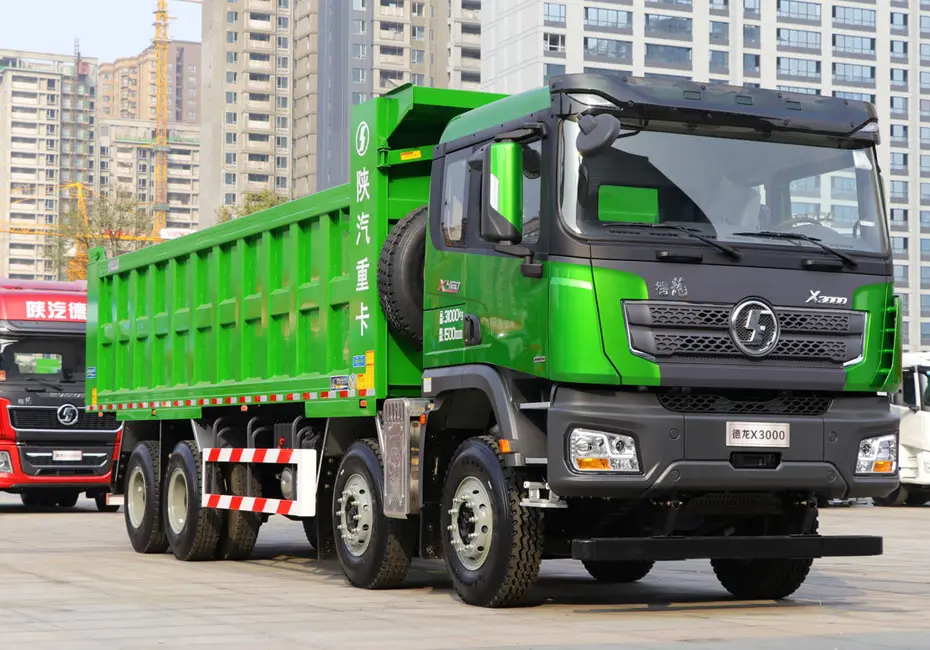

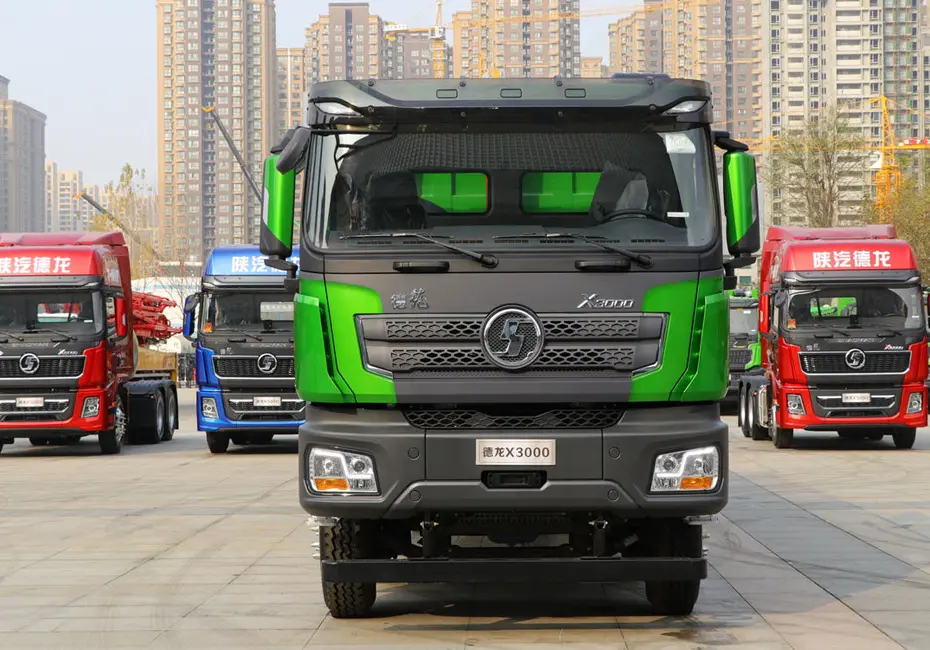

The Shacman X3000 8×4 Tipper Truck with 460HP is a heavy-duty workhorse engineered for mining, large-scale construction, and mega-infrastructure projects. With a reinforced 8×4 drivetrain and high-torque Weichai engine, it delivers exceptional stability and efficiency when hauling oversize materials across the most demanding terrains.
High-Torque Power: The 460HP Weichai engine produces 2200 N·m of torque, enabling full-load uphill climbs on gradients up to 25% while maintaining stable speeds on rough roads.
8×4 Drivetrain Superiority: Four rear driving axles distribute weight evenly, reducing ground pressure by 30% compared to 6×4 models — critical for muddy or soft soil conditions in mining sites.
Reinforced Structure: The chassis uses 320mm wide frame rails (10mm thickness) with 800MPa high-tensile steel. The cargo body is built from NM500 steel (12mm thickness) to resist impact from sharp rocks and heavy ore.
| SHACMAN X3000 8X4 TIPPER TRUCK | |
| Model | SX3319XD426 |
| Drive type: | 8X4 |
| Wheelbase: | 1800+4175+1400mm |
| Engine: | WP12.460E62 |
| Transmission: | Fast 12JSXD240T |
| Rear axle ratio: | 5.26 |
| Vehicle length: | 10.95 meters |
| Vehicle width: | 2.55 meters |
| Vehicle height: | 3.5 meters |
| Front track: | 2036/2036mm |
| Rear track: | 1860/1860mm |
| Total vehicle weight: | 15.5 tons |
| Rated load: | 15.37 tons |
| Total mass: | 31 tons |
| Tonnage class: | Heavy trucks |
| Approach angle: | 17 degrees (°) |
| Departure angle: | 18 degrees (°) |
| Place of origin: | Xi’an, Shaanxi |
| Energy type: | Diesel fuel |
| Engine model: | WP12.460E62 |
| Engine brand: | Weichai |
| Number of cylinders: | 6 cylinders |
| Fuel type: | Diesel fuel |
| Displacement: | 11.6L |
| Emission standards: | National VI |
| Maximum horsepower: | 460 HP |
| Maximum output power: | 338kW |
| Maximum torque: | 2200N·m |
| Maximum torque speed: | 1000-1400rpm |
| Rated speed: | 1900rpm |
| Maximum torque: | CR+DOC+DPF+Hi_SCR |
| Transmission model: | Fast 12JSXD240T |
| Gearbox brand: | Fast |
| Gear shifting method: | Manual |
| Forward gears: | 12 gears |
| Reverse gears: | 2 |
| Cargo box length: | 8 meters |
| Cargo box width: | 2.35 meters |
| Cargo box height: | 1.5 meters |
| Cargo box type: | Self-unloading |
| Unloading method: | Self-unloading |
| Driver’s cab: | Extended flat top |
| Cab width: | 2490mm |
| Passenger capacity: | 2 people |
| Fuel tank material: | Aluminum alloy |
| Fuel tank capacity: | 600L |
| Front axle allowable load: | 6500/6500kg |
| Rear axle description: | 16T MAN |
| Rear axle allowable load: | 18000(Two-axis assembly)kg |
| Speed ratio: | 5.26 |
| Number of leaf springs: | 13/14/14 |
| Tire specifications: | 12.00R20 18PR,11.00R20 18PR,12R22.5 18PR |
| Number of tires: | 12 |
ROPS/FOPS certified cab, EBS (Electronic Braking System), and hill-hold assist to prevent rollbacks on steep ramps.
Optional rear-view camera, hydraulic tailgate, and cold-start kits (-30°C) for polar regions. Right-hand drive available for Southeast Asia/Africa markets.
Flip-up cab design allows 40% faster access to engine components. 500L fuel tank extends operation range to 800 km between refuels.
Deep Mining: Transporting iron ore, copper, and coal from pits to processing plants, with optional off-road tires and heavy-duty air filters for dusty environments.
Infrastructure Mega-Projects: Supporting dam, airport, and highway construction with 30 cubic meter body capacity, cutting trip frequency by 20% vs. standard 6×4 trucks.
Waste Management: Configurable with sealed bodies for municipal solid waste or hazardous materials, meeting EU standards for leak-proof transportation.
