Model
SX425054384N2R
Type
Prime Move
Wheel base(mm)
3780+1345
Battery
CATL

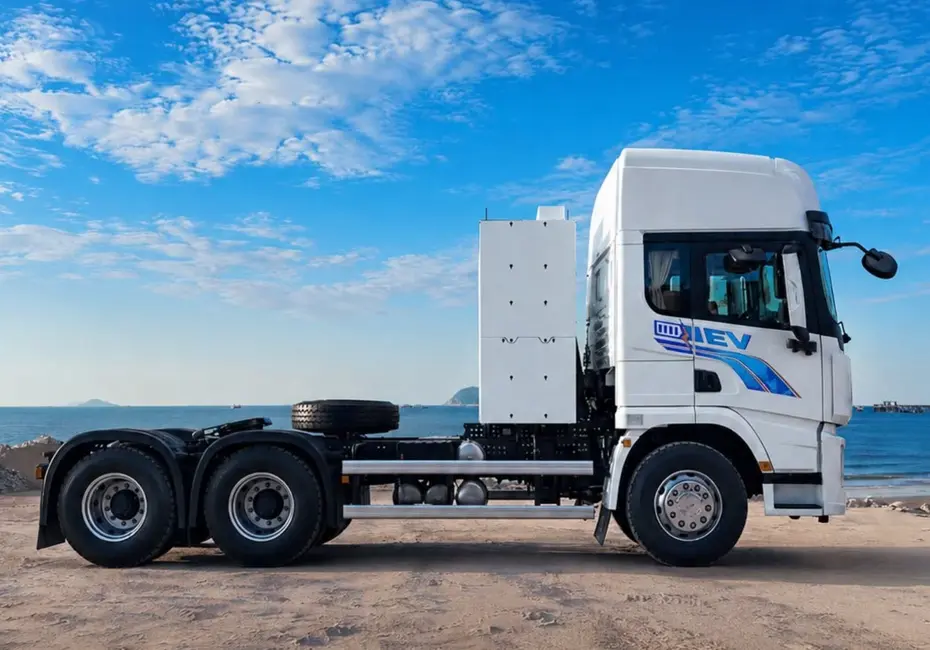

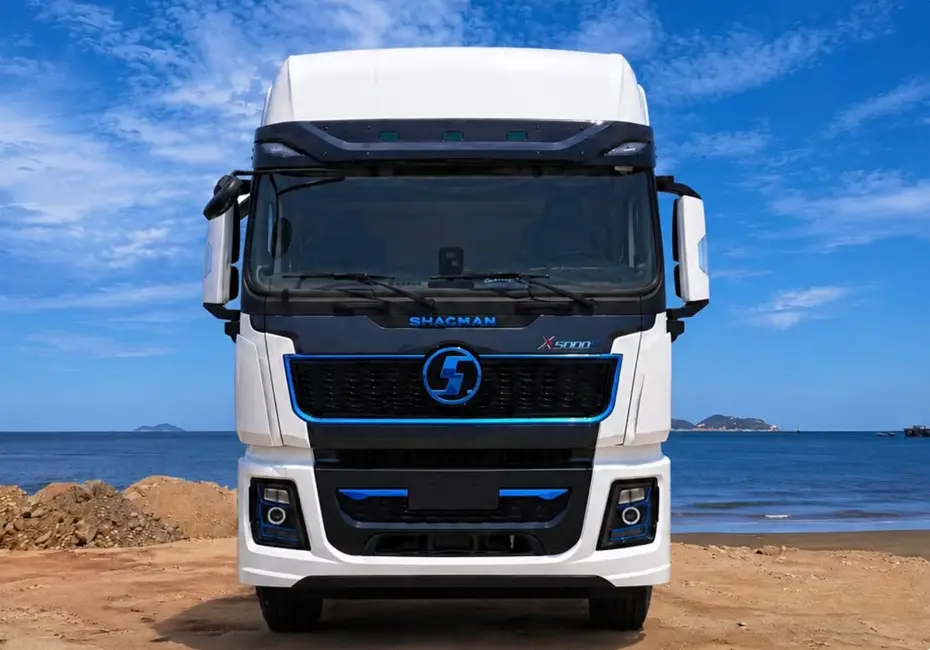

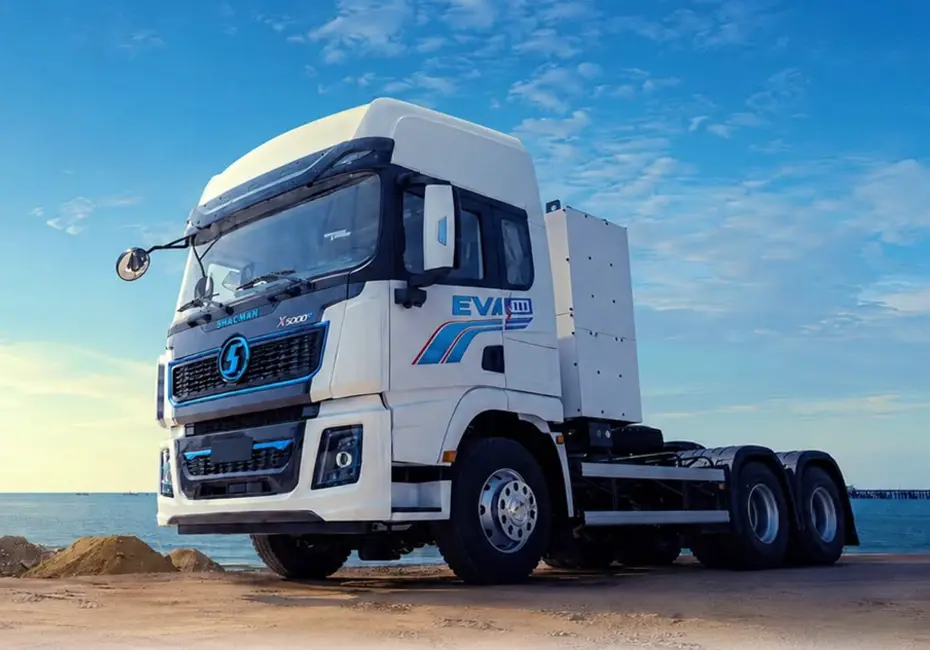

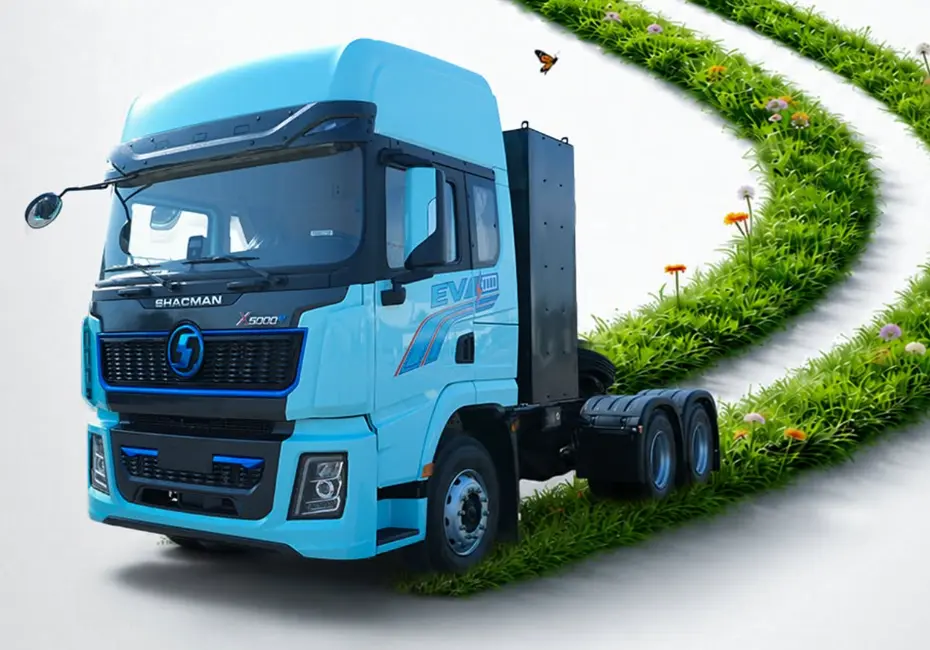

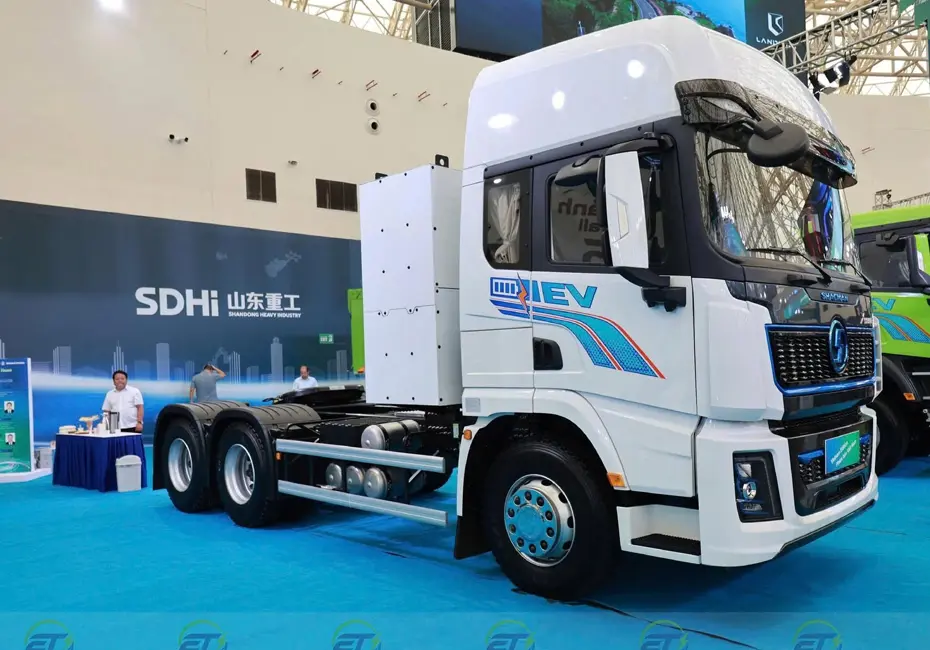

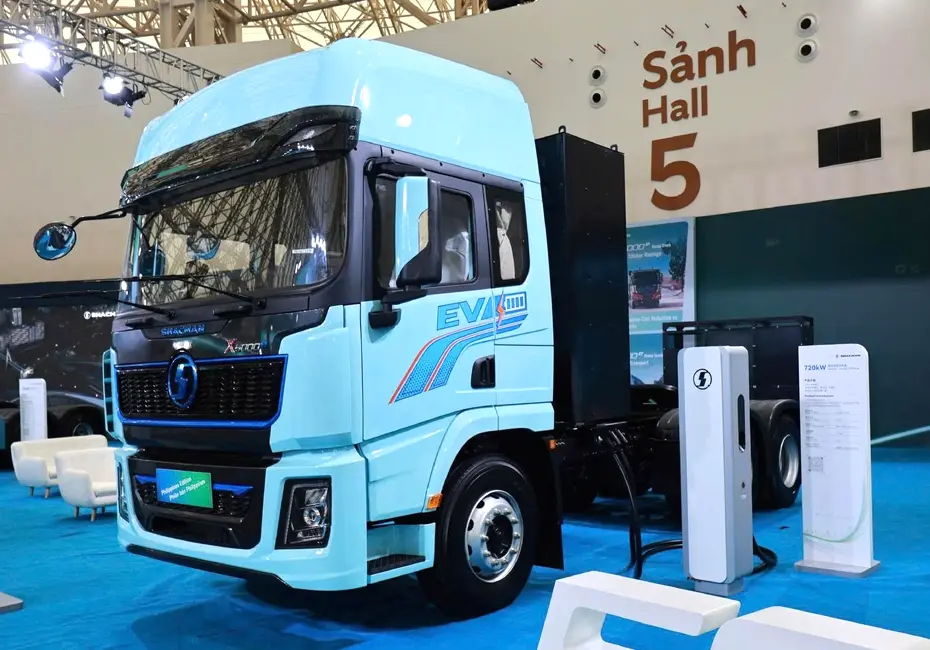

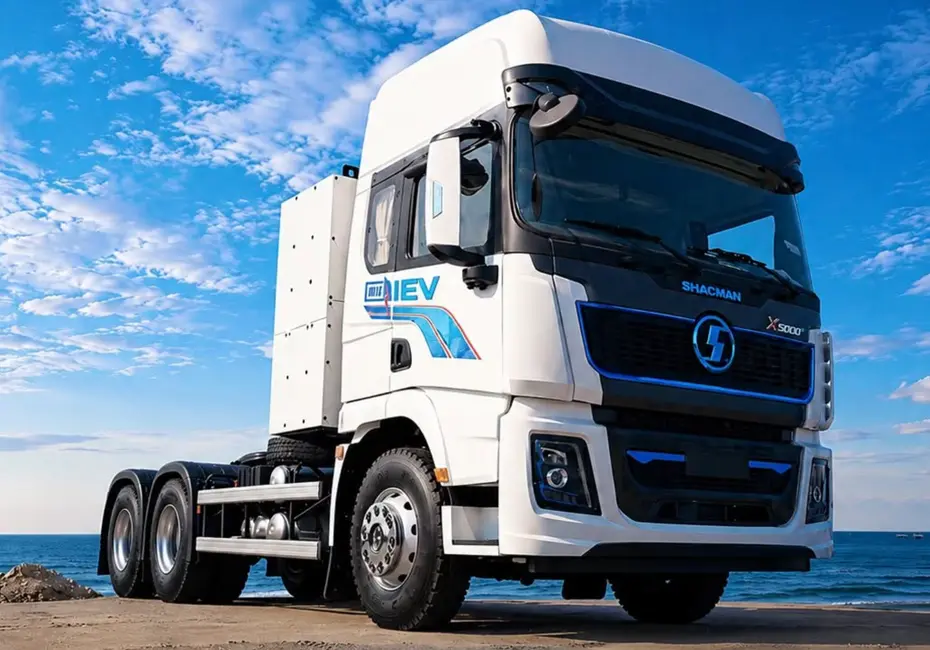

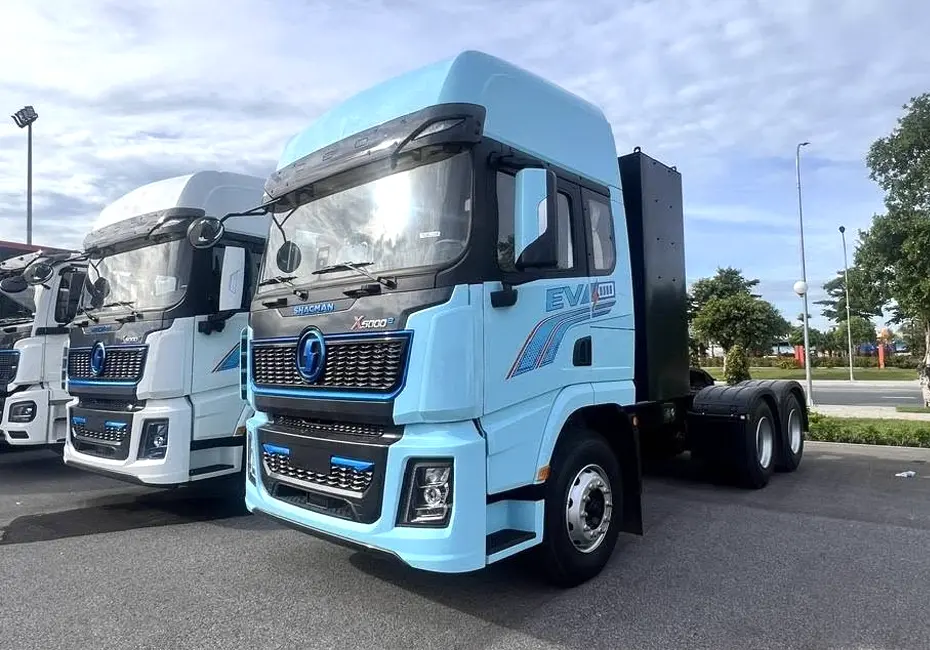

The Shacman X5000E is a 6×4 electric prime mover (tractor) designed for zero-emission heavy-duty transport. It is configured for right-hand drive markets and is powered by a CATL lithium iron phosphate battery pack paired with a permanent magnet synchronous motor.
Motor Type: TZ400XS033 Permanent Magnet Synchronous Motor
Rated Power / Torque: 270 kW / 1,400 N·m
Peak Power / Torque: 410 kW / 2,400 N·m
| SHACMAN X5000E ELECTRIC TRUCK | |
| Model | SX425054384N2R |
| Cabin | X5000E Extended Flat-Top Cab with Roof Air Deflector |
| Driven type | 6×4 |
| Type | Prime Move |
| Curb Weight(kg) | 10,975 |
| GVW(kg) | 49000 |
| Ground clearance (mm) | 262 |
| Length （mm) | 7410 |
| Width （mm) | 2540 |
| Height （mm) | 3655 |
| Drive Motor | |
| Type | TZ400XS033 Permanent Magnet Synchronous Motor |
| Rated Power（Kw） | 270 |
| Peak Power（Kw） | 410 |
| Rated Torque（Kw） | 1400 |
| Peak Torque（Kw） | 2400 |
| Battery | |
| Brand | CATL |
| Type | Lithium Iron Phosphate |
| Capacity(kW.h) | CN352.08kWh |
| Placement form | Rear |
| Type | Charging |
| Transmission | |
| Type | F4E240 |
| Number of gears | 4 |
| Shift Type | AMT |
| Steering | |
| Type | Right-hand drive |
| Chassis | |
| Frame | 850×300（8） |
| Wheel base (mm) | 3780+1345 |
| Suspension | |
| Front Suspension | Reduced leaf spring |
| Rear Suspension | Reduced leaf spring |
| Axles | |
| Front axle | HD 7.5T Front axle |
| Rear axle | 13T single reduction driving axle |
| Ratio | 6.167 |
| Tires | |
| Type | 12R22.5 |
| Numbers | 10+1 |
| Equipment | Hydraulic suspension |
| Air main driver seat | |
| Electric window regulators | |
| Manual cab tilting | |
| AC | |
| ABS (Anti-lock Braking System) | |
| 165Ah Maintenance-free battery | |
| LED headlights | |
| Three-step boarding ladder | |
| Engineering vehicle bumper | |
| LED lights | |
Battery Brand: CATL
Battery Type: Lithium Iron Phosphate (LFP)
Capacity: 352.08 kWh (standard configuration for this model)
Range: The 422.87 kWh variant achieves over 300 km (CLTC-certified) for short-to-medium haul operations. The broader X5000E platform supports up to 600 kWh for a range of up to 450 km.
Charging & Swapping: Supports fast charging and 5-minute battery swapping. The platform also supports dual-gun 900A charging, providing 120 km of range in 15 minutes.
Model: SX4257XJ4Q2FCEV
Energy type: Hydrogen
Model: SX425054384N2R
Type: Prime Move
