Vehicle type
Cargo Truck
Engine model
WP6.210E32, 210HP
Rated load
10.565 tons
Overall dimension (mm)
9340X2550X3000

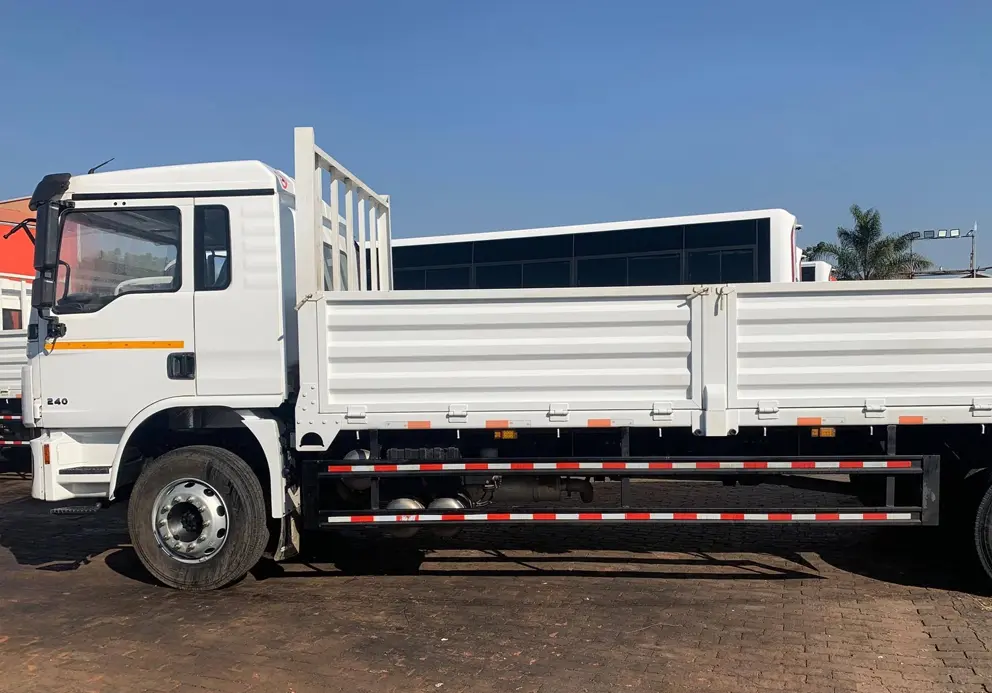

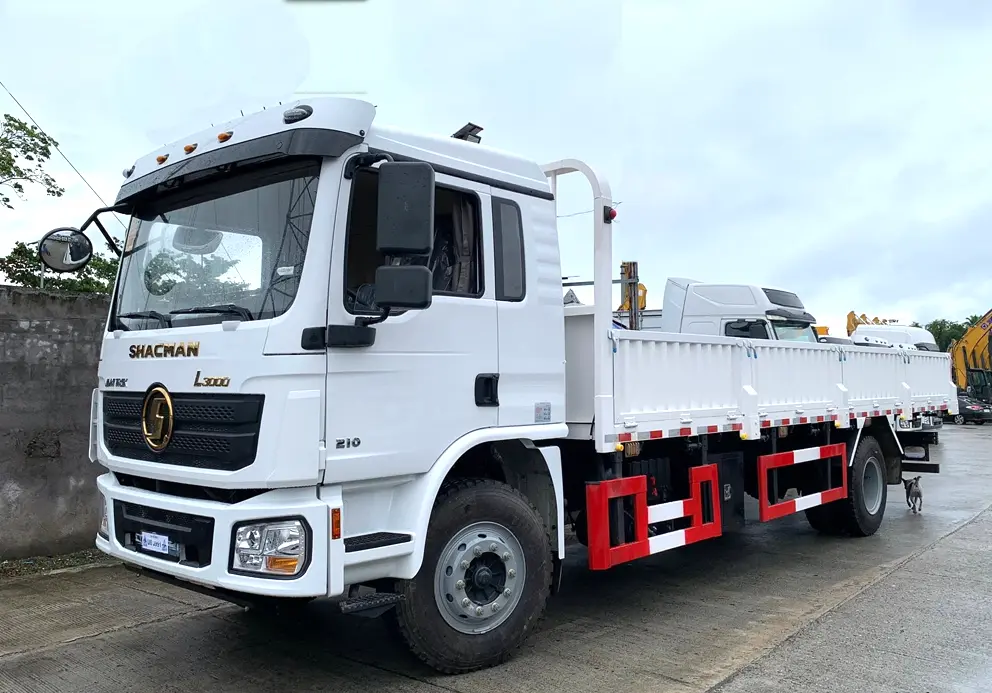

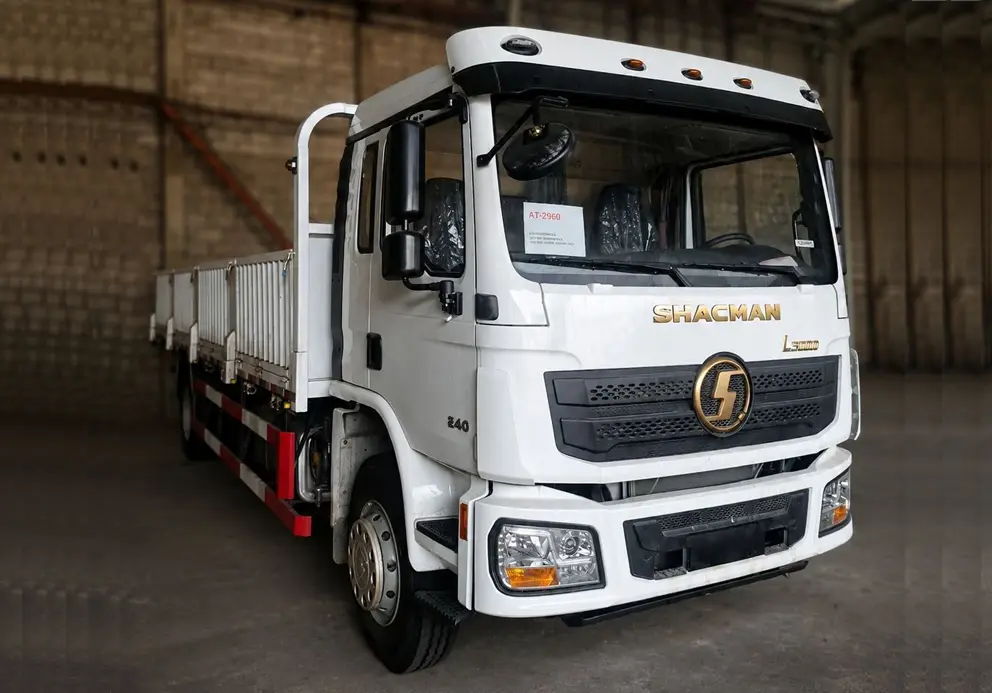

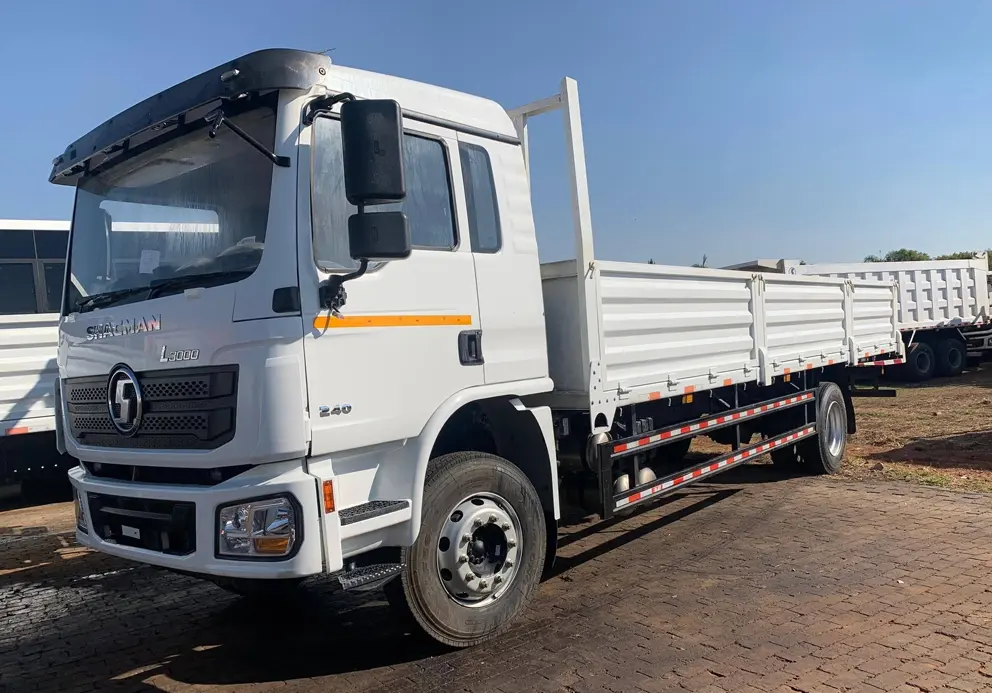

The Shacman L3000 4×2 Cargo Truck is a medium-duty logistics vehicle engineered for urban and intercity transportation where larger trucks cannot maneuver effectively. It combines a proven chassis platform with versatile body options to suit a wide range of cargo handling needs.
The L3000 4×2 cargo truck offers flexible power options. It is typically equipped with a Weichai or Cummins engine, delivering power outputs ranging from approximately 180 PS to 285 PS, with torque ratings between 650 N·m and 1000 N·m. These engines are mated to a FAST-brand manual transmission, commonly an 8-speed unit, known for its reliable twin-shaft structure and efficient power delivery. The truck features a 4.8-ton front axle and a 10-ton single-reduction rear axle with a ratio of 4.625, ensuring robust load-bearing capability.
| SHACMAN L3000 4X2 CARGO TRUCK | |
| Cabin | L3000 cabin with one berth (sleeper), with Air-conditioner (A/C), up/down and front/back adjustable steering wheel, safety belt, exterior sun visor etc. |
| Engine Model | WEICHAI, WP6.210E32, 210HP, Euro II |
| Engine Type | 6 cylinder in line, 4 stroke direct injection diesel engine, water cooling, Intercooler Turbocharged. |
| Clutch | Hydraulic control air assisted. |
| Transmission | FAST brand, 8JS85TM, 8 forwarder & 2 reserve, manual.Main and auxiliary transmission structure, main transmission with double counter shaft , auxiliary transmission with planetary reduction. |
| Steering System | ZF technology, power steering with hydraulic system. |
| Front axle | 4800kg, disc brake |
| Rear axle | 10000kg, MAN single-stage reduction axle |
| Braking System | Service brake: dual-circuit air pressure brake;Parking brake (emergency brake): spring storage energy without air.Auxiliary brake: Engine exhaust brake. |
| Electrical System | Voltage: 24VGenerator: 1540WStarter: 7.5 kWBattery: 12V/165Ah, 2 pieces.Cigar-lighter, horn, headlamps, fog lights, brake lights, indicator and reverse light. |
| Tire | 10.00R20, steel radial tires, plus one spare tire (totally 7 units) |
| Tank Volume (L) | 200L |
| Kerb Weight (kg) | 6000 |
| Gross Weight (kg) | 19000 |
| Maximum Speed (km/h) | 90 |
| Cargo box dimension (mm) | 7800X2300X800 |
| Overall dimension (mm) | 9340X2550X3000 |

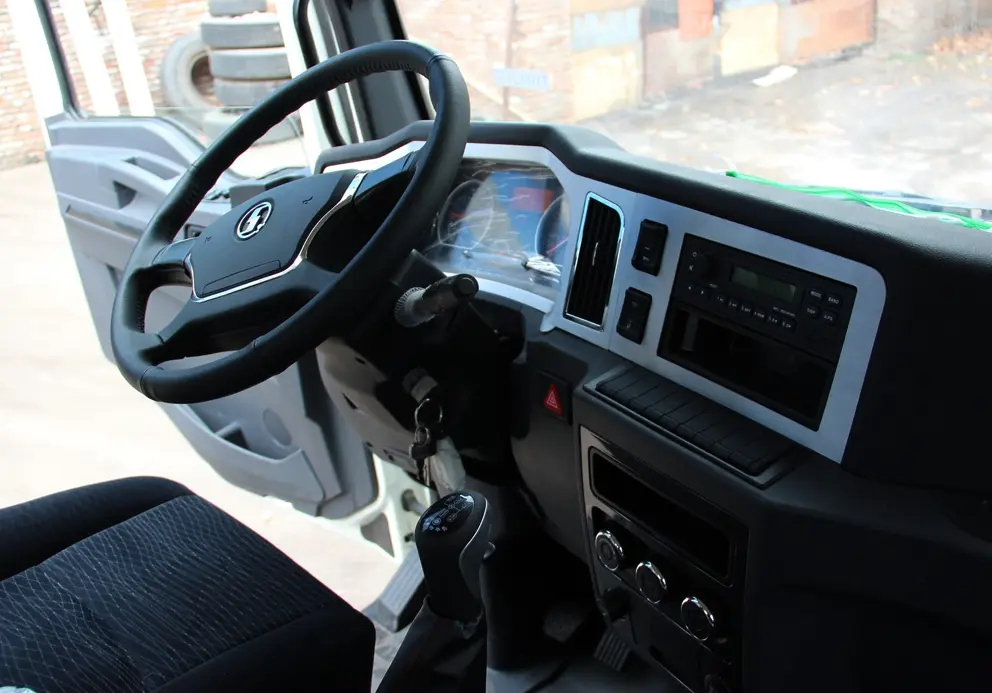

The L3000 is built on a high-strength steel chassis frame measuring 850×270(7+4) mm. It utilizes a multi-leaf spring suspension system front and rear to balance durability with payload capacity. The cab is designed for driver comfort and safety, offering a generous interior space with a width of 2.3 meters and a sleeper measuring 660 mm. Standard features include electric air conditioning, electric window lifters, central locking, and a hydraulic main seat. The cab’s European V-shape front design and LED lighting enhance visibility and energy efficiency.
