Model
SX5315GJBJT306
Engine model
WP13H560E68A
Rated Load
31 tons
Box Dimensions
9.4×2.42×2.55 m

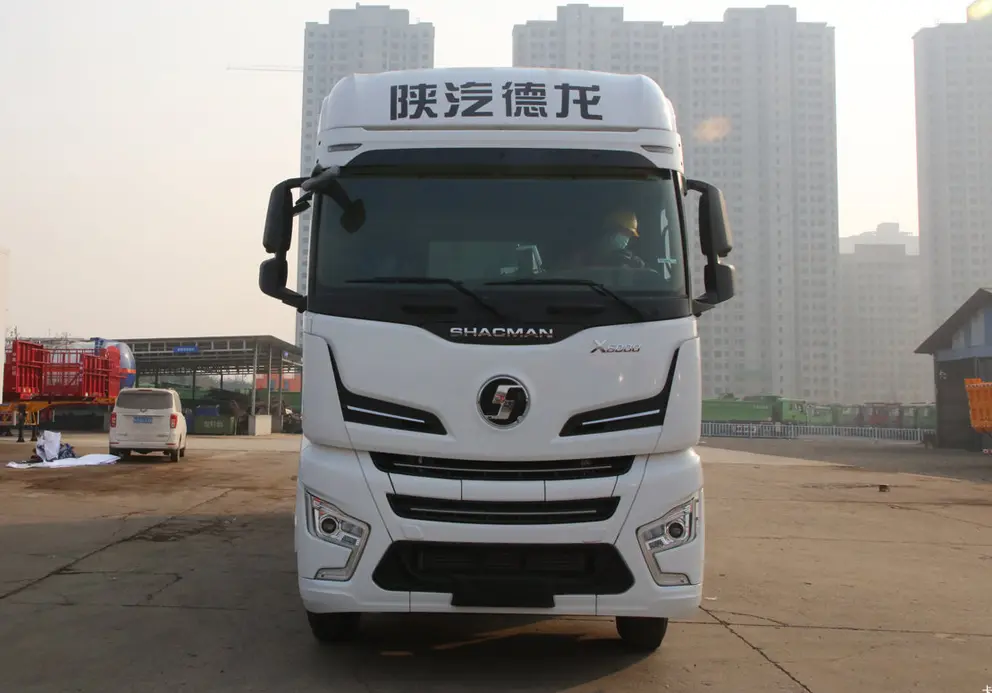

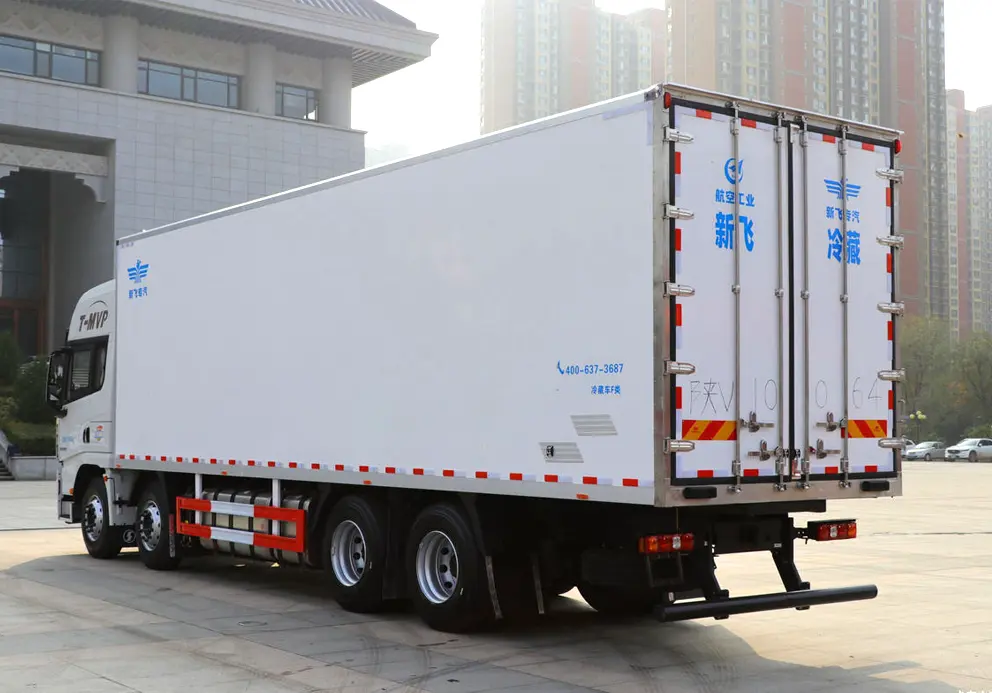

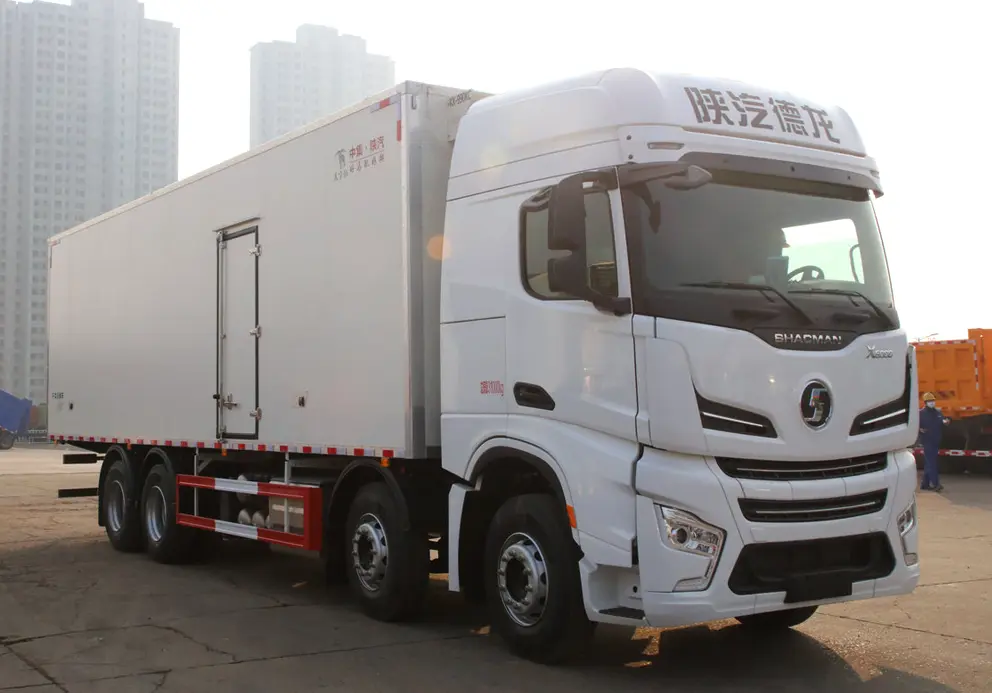

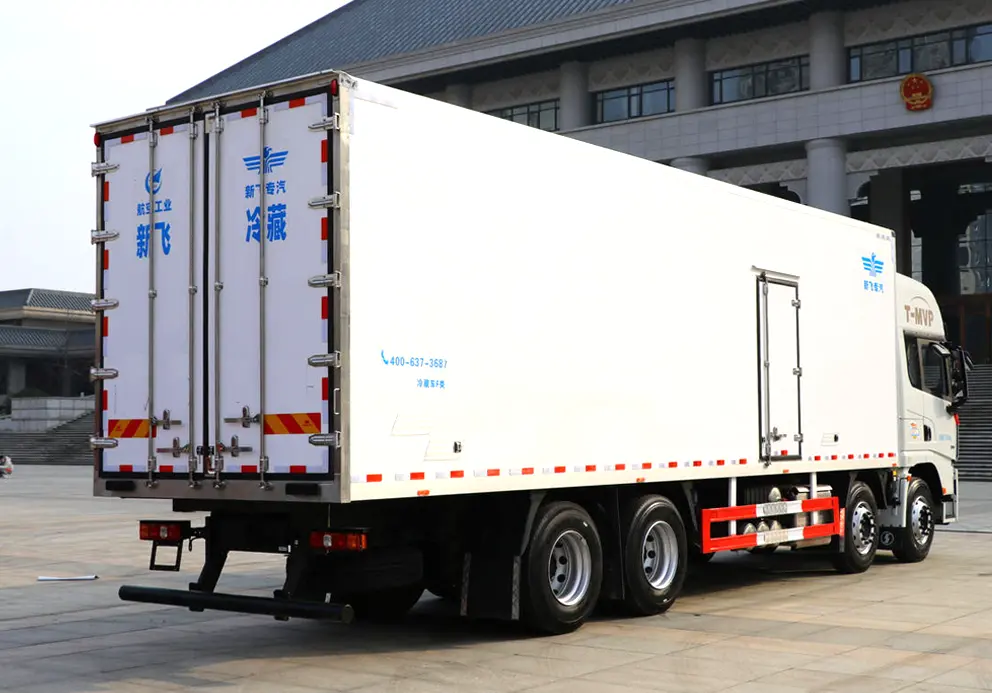

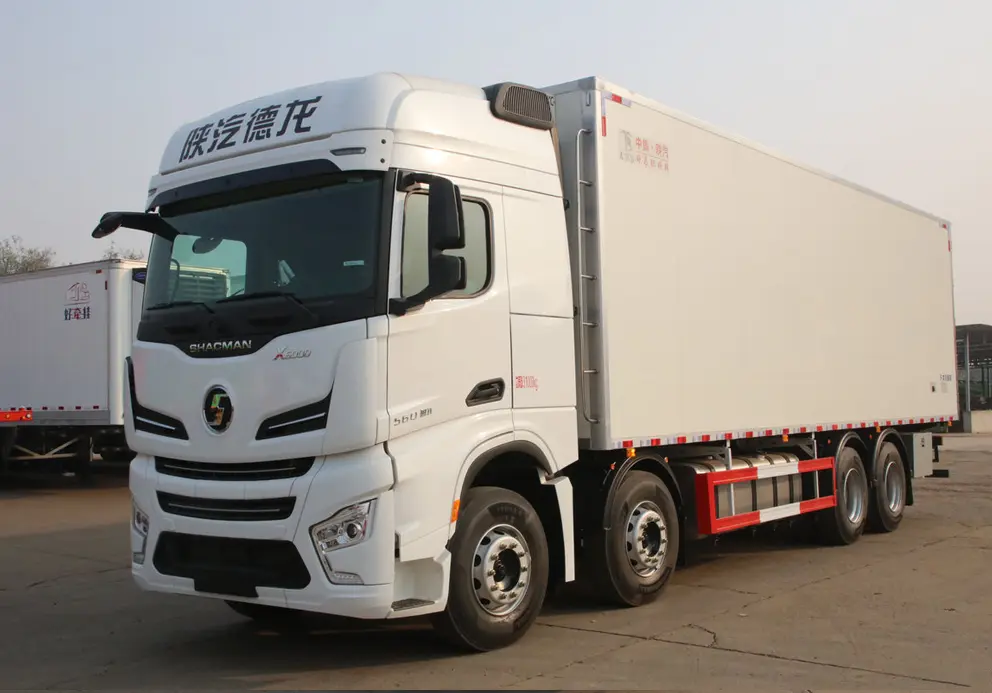

The Shacman X6000 Refrigerated Truck is a flagship heavy-duty vehicle designed for demanding long-haul cold chain logistics. This model, identified by the chassis/vehicle code SX5315GJBJT306, combines a powerful 560HP drivetrain with Shacman’s most advanced cab technology and intelligent systems, delivering reliable performance for temperature-sensitive cargo across long distances.
The truck is powered by a Weichai WP13H560E68A 12.9L inline-6 diesel engine, producing 560 horsepower (412 kW) and a maximum torque of 2585 N·m. This high-torque output ensures strong pulling power even under fully loaded conditions. The engine meets Euro 6 (China VI) emission standards. Power is delivered through a Fast S16AO 16-speed AMT (Automated Manual Transmission), which offers smooth shifting and reduced driver fatigue during long journeys. The truck features an 8×4 drive configuration for optimal traction and load distribution.
| SHACMAN X6000 REFRIGERATED TRUCK | |
| Vehicle Dimensions: | 12×2.6×4 meters |
| Drive Type: | 8X4 |
| Vehicle Type: | Refrigerated truck |
| Wheelbase: | 1950 4500 1350mm |
| Front/Rear Overhang: | 1.43/2.77 meters |
| Curb Weight: | 13 tons |
| Gross Weight: | 31 tons |
| Rated Load: | 17.87 tons |
| Top Speed: | 89km/h |
| Energy Type: | Diesel |
| Front Track: | 2070/2070mm |
| Rear Track: | 1860/1860mm |
| Engine Model: | Weichai WP13H560E68A |
| Number of Cylinders: | 6 cylinders |
| Max Output Power: | 412kW |
| Max Horsepower: | 560 horsepower |
| Displacement: | 12.9L |
| Emission Standard: | China VI |
| Fuel Type: | Diesel |
| Rated RPM: | 1600rpm |
| Max Torque: | 2585N·m |
| Transmission Model: | Fast S16AO |
| Number of Gears: | 16-speed |
| Cargo Box Width: | 2.42 meters |
| Cargo Box Height: | 2.55 meters |
| Cargo Box Dimensions: | 9.4×2.42×2.55 meters |
| Vehicle Announcement: | SX5319XLCGD456 |
| Fuel Tank Capacity: | 900L |
| Chassis Series: | Delong X6000 |
| Chassis Model: | SX1319GD6 |
| Frame Dimensions: | (970-850)×270 (single 8)mm |
| Front Axle Description: | Fewer leaf springs front suspension |
| Rear Axle Description: | Fewer leaf springs rear suspension |
| Gear Ratio: | 3.364 |
| Number of Leaf Springs: | 2002/2/3 |
| Tire Specifications: | 12R22.5 18PR |
| Number of Tires: | 12 pieces |
Built on the robust X6000 chassis (model SX1319GD6 or SX1329GD6), the truck has a wheelbase of 1950+4500+1350mm and a frame size of (970-850)×270mm. It has a gross vehicle weight (GVW) of 31 tons, a curb weight of 13 tons, and a rated payload of 17.87 tons. The refrigerated cargo box measures 9.4×2.42×2.55 meters, providing substantial volume for high-value perishable goods. The chassis is equipped with fewer-leaf-spring suspension front and rear, and a rear axle ratio of 3.364 for balanced efficiency and power.
