Model
SX4257XJ4Q2FCEV
Energy type
Hydrogen
Wheel base(mm)
3780+1345
Battery brand
CATL

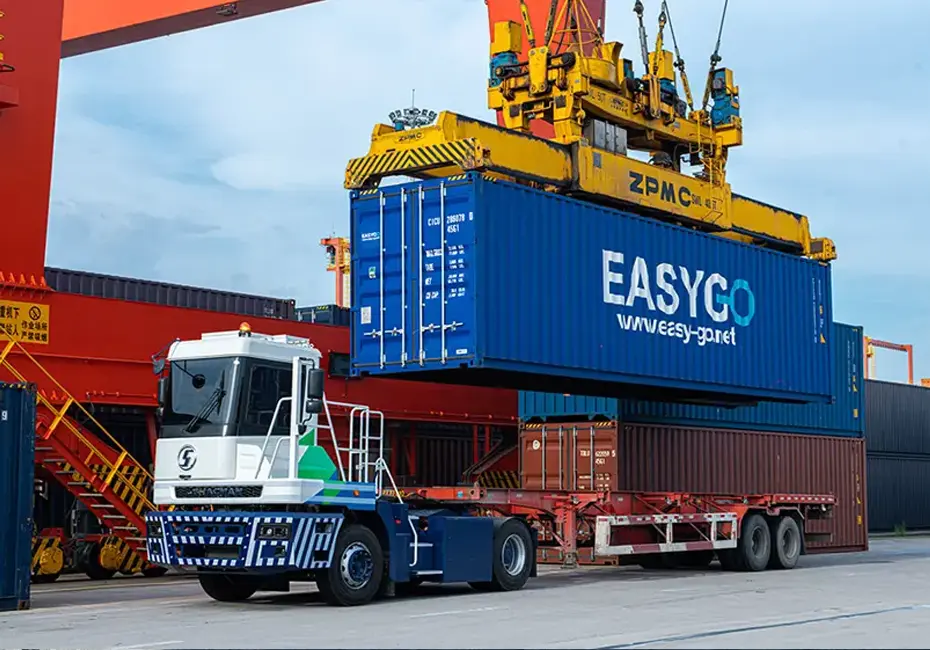

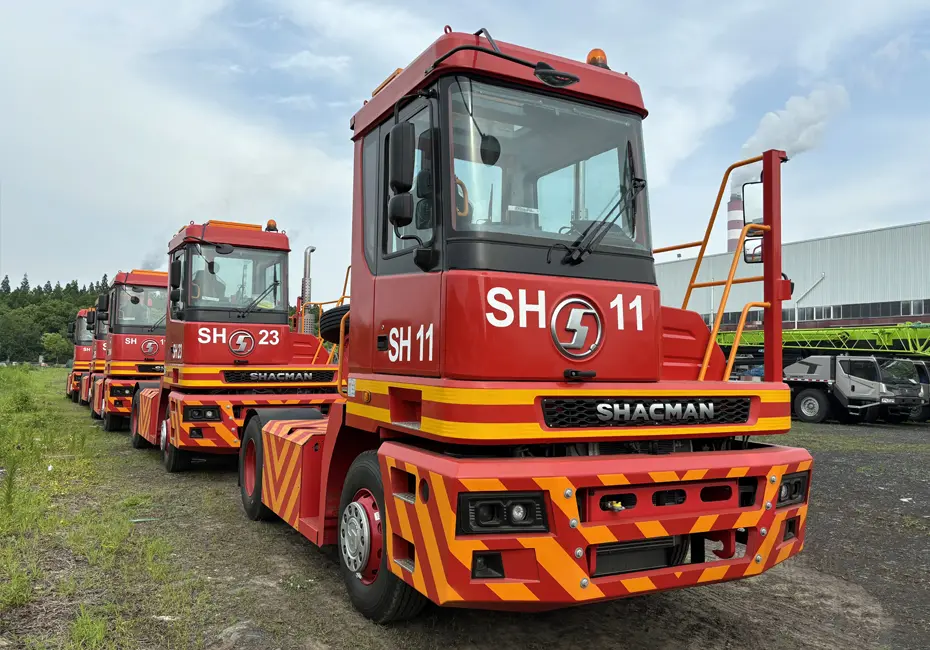

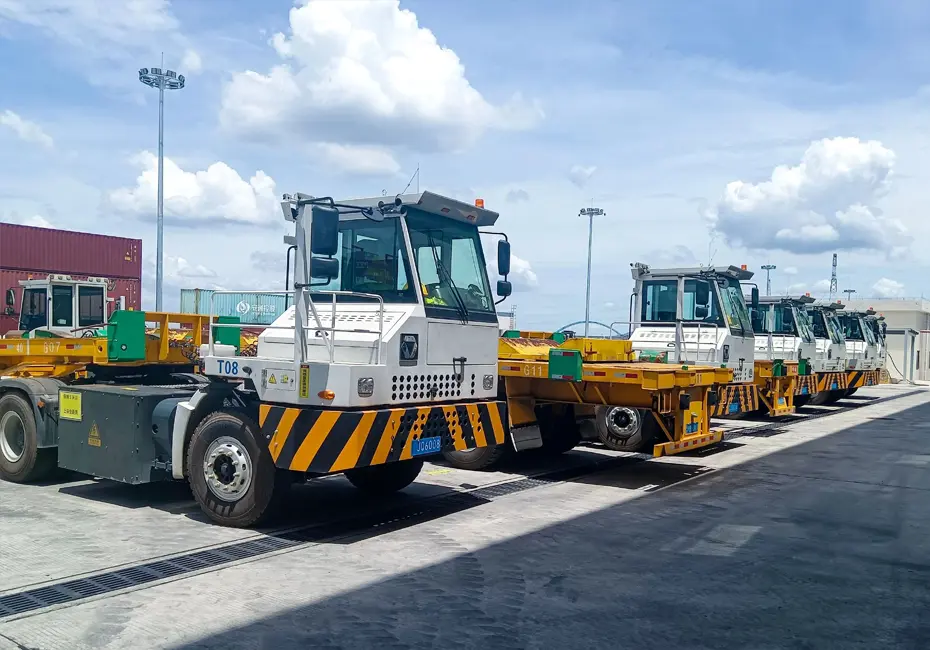

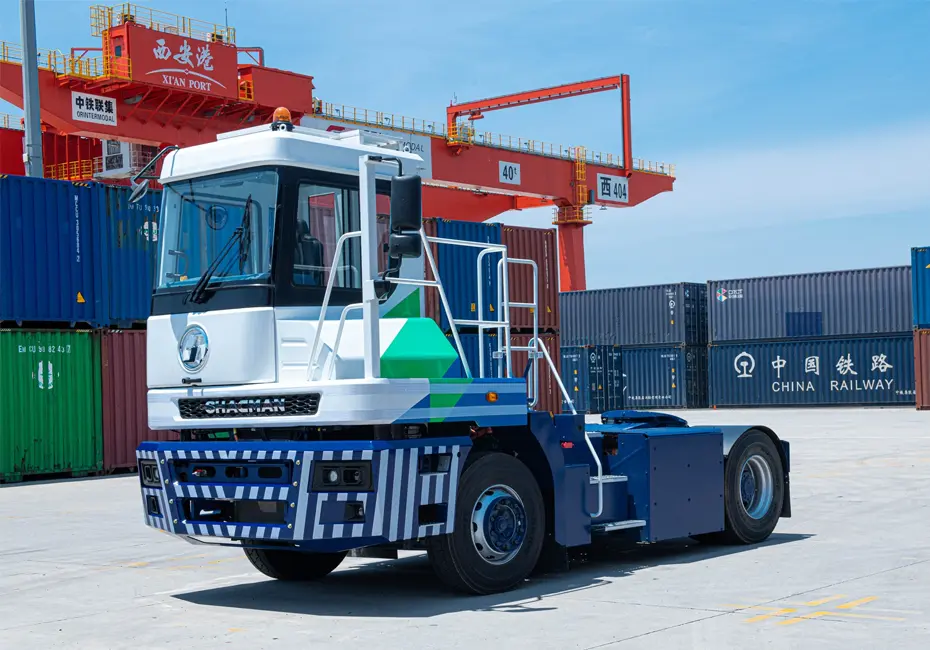

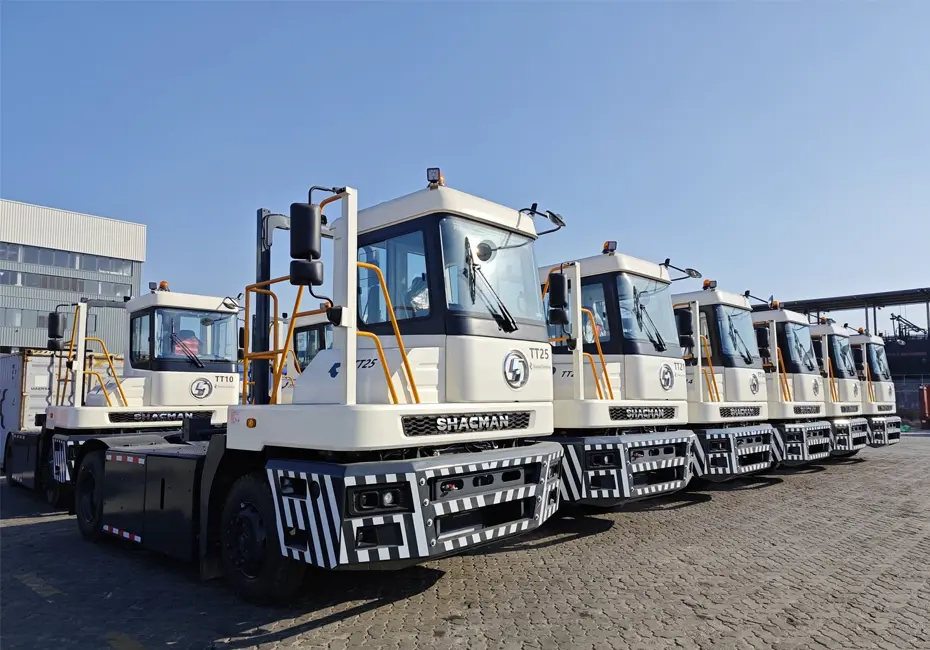

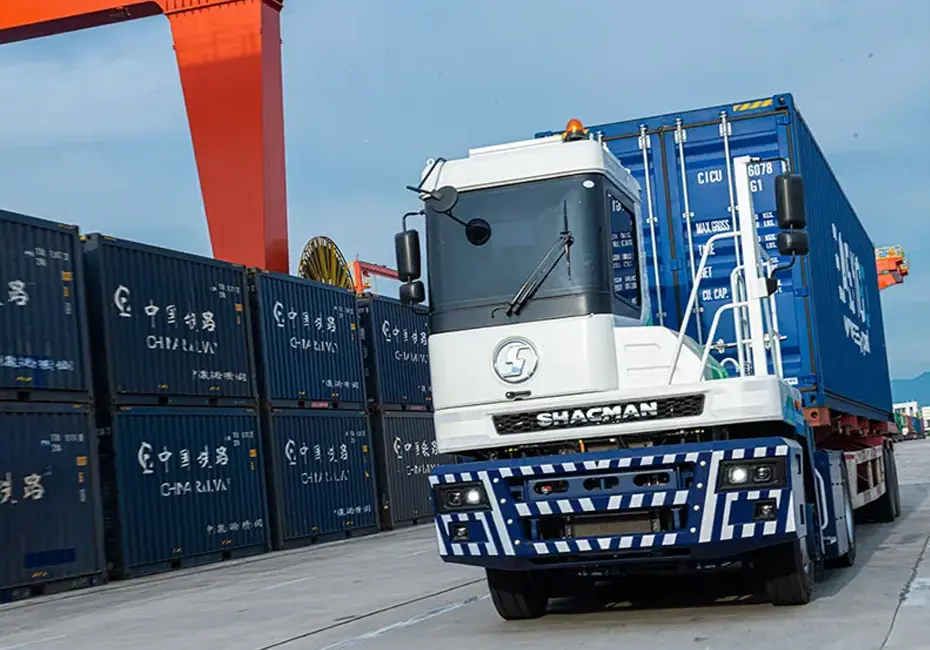

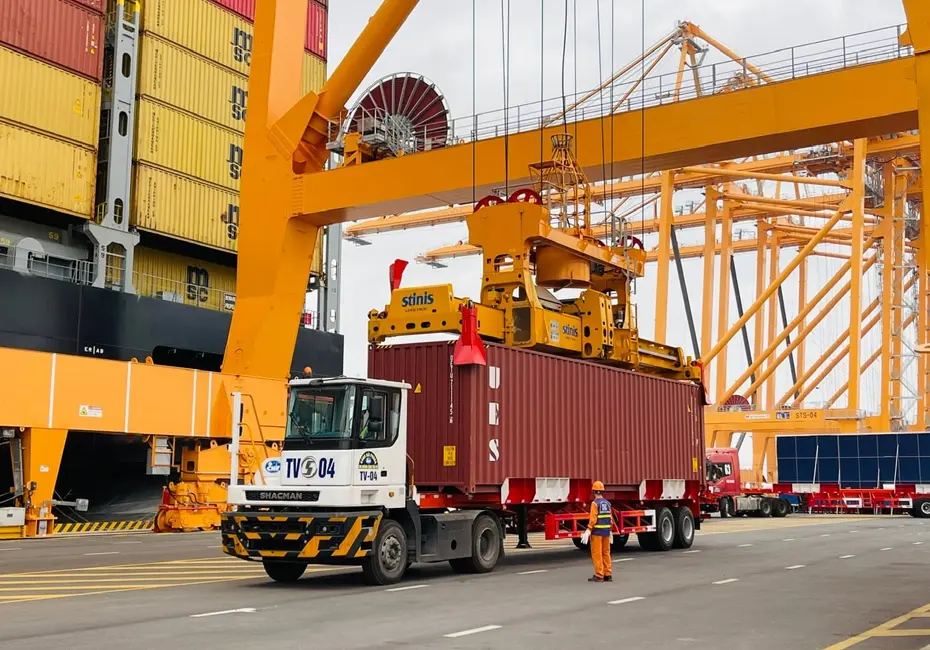

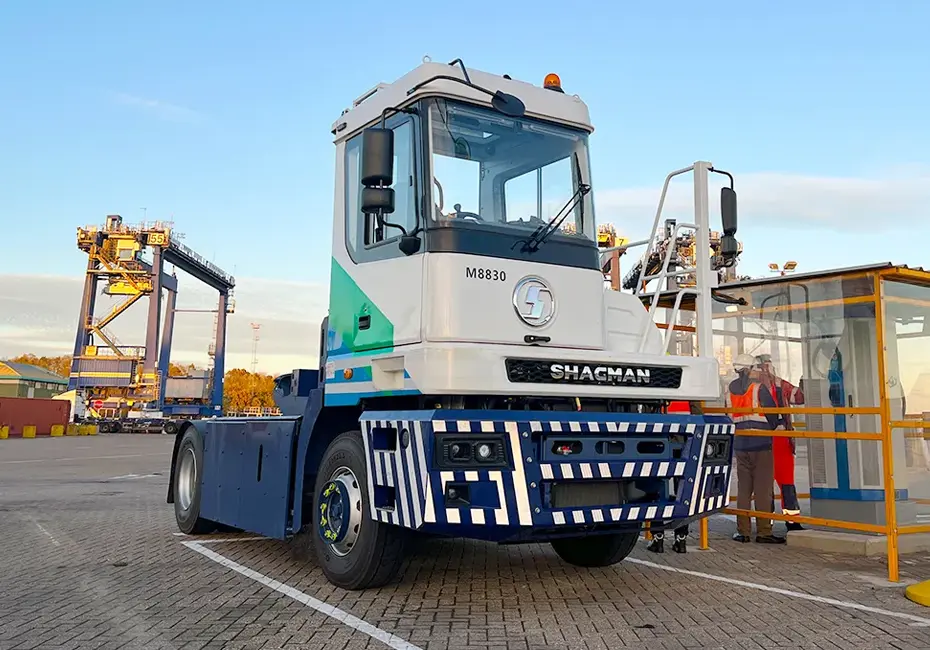

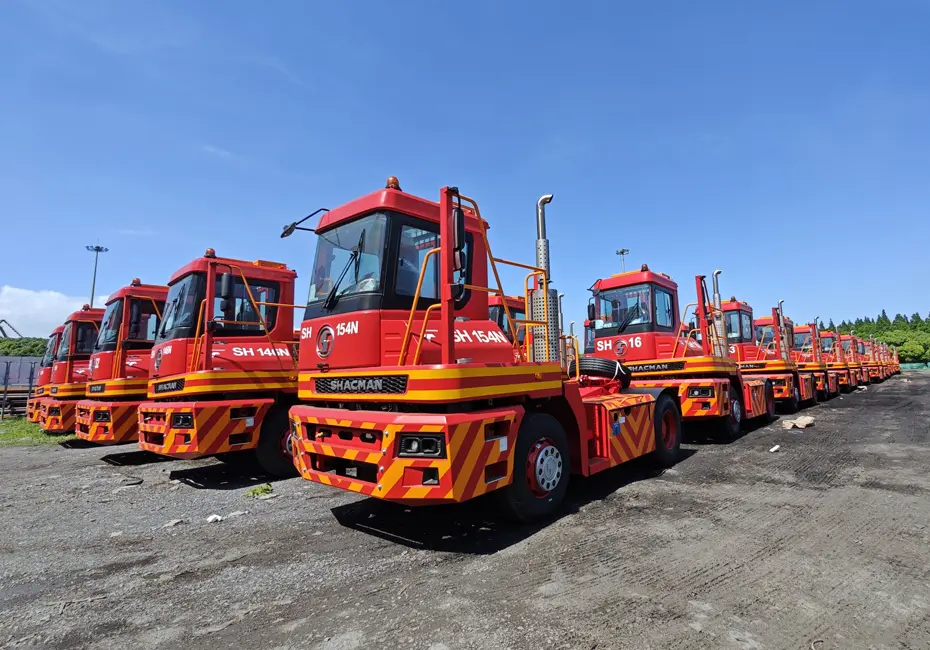

The Shacman T5000E is a purpose-built electric terminal tractor engineered for zero-emission container handling in seaports, inland intermodal depots, and logistics terminals. It combines a direct-drive electric motor with a high-capacity CATL battery to deliver reliable, high-cycle performance for round-the-clock yard operations.
The T5000E is equipped with a direct-drive motor delivering a peak power of 260 kW and maximum torque of 3,800 N·m. The motor achieves a maximum efficiency of over 94%, providing both energy savings and reliable power for hauling loaded 40-foot containers within narrow yard lanes.
The vehicle relies on a CATL 281.9 kWh lithium iron phosphate battery pack, supporting full-load continuous operation over 100 kilometers on a single charge. The battery system is designed to match the intensive round-the-clock container loading and unloading cycles typical of port operations.
| SHACMAN T5000E ELECTRIC TERMINAL TRUCK | |
| GVW(t) | 80 |
| Power Battery | 281.9Kwh |
| Energy Replenishment | Charge |
| Drive Motor | TZ400XS003 |
| Rated/Peak Power(kW) | 210/260 |
| Frame (mm) | 1080×300 |
| Wheelbase (mm) | 3600 |
| Rear Axle | 16T Double-Stage Axle |
| Suspension | Front Multi-Leaf SpringsRear Air Suspension, Rigid Rear Suspension |
| Tire Specification | 310/80R22.5, 11R22.5, and Others |
| Saddle | Pneumatic Unlocking Lifting Saddle, Pneumatic Unlocking Fixed Saddle |
| Steering Gear | Hydraulic Steering, Mechanical Steering Gear |
| Applicable Scenario | Terminal Container Transportation |
Zero Emissions & Low Noise: Eliminates tailpipe emissions and cuts operation noise by more than 18 decibels compared to diesel yard tractors, complying with port air quality and noise control regulations.
Driver Comfort: Four-point cabin air suspension and fully air-suspended seating with multi-adjustable settings, heating, and cooling reduce fatigue during long shifts and frequent start-stop operations.
Coastal Durability: All electrical components adopt IP67 dustproof and waterproof protection, with anti-salt fog coating standard for coastal ports to resist marine corrosive air.
Smart Fleet Integration: Built-in vehicle monitoring system connects to port terminal management platforms, uploading real-time battery status, energy consumption, and vehicle positioning data to support automated yard scheduling.
Target Applications: Seaport container yards, inland intermodal depots, bonded logistics parks, and Ro-Ro terminal internal container transport, supporting continuous high-intensity round-the-clock operation.
