Model
SX3255MT384
Engine
WP10.380E22
Horsepower
380HP
Overall dimension (mm)
5600×2300×1500 mm

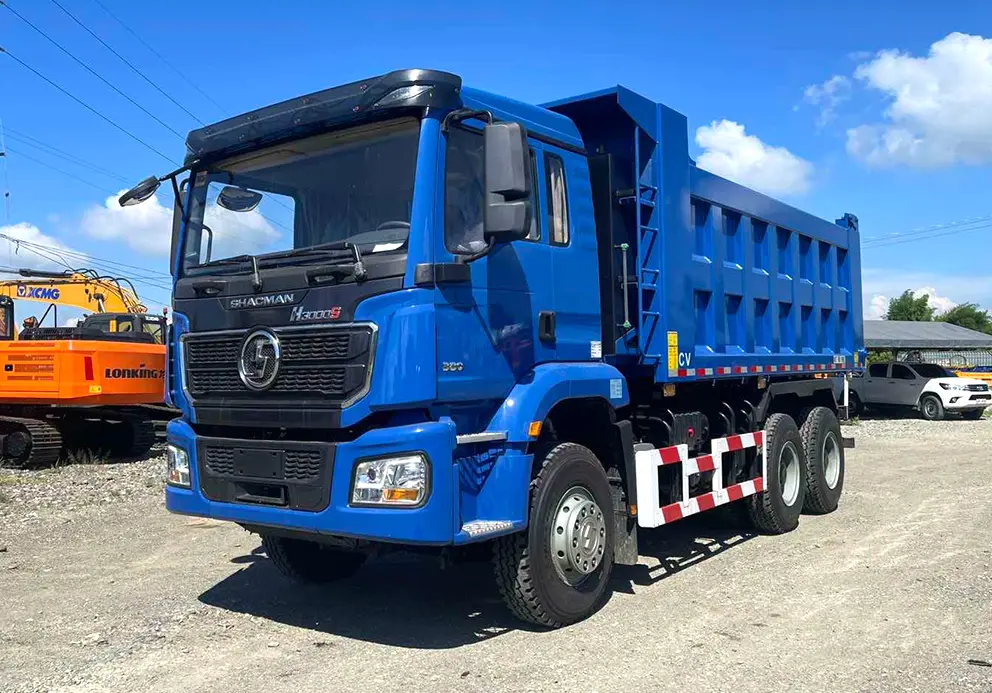

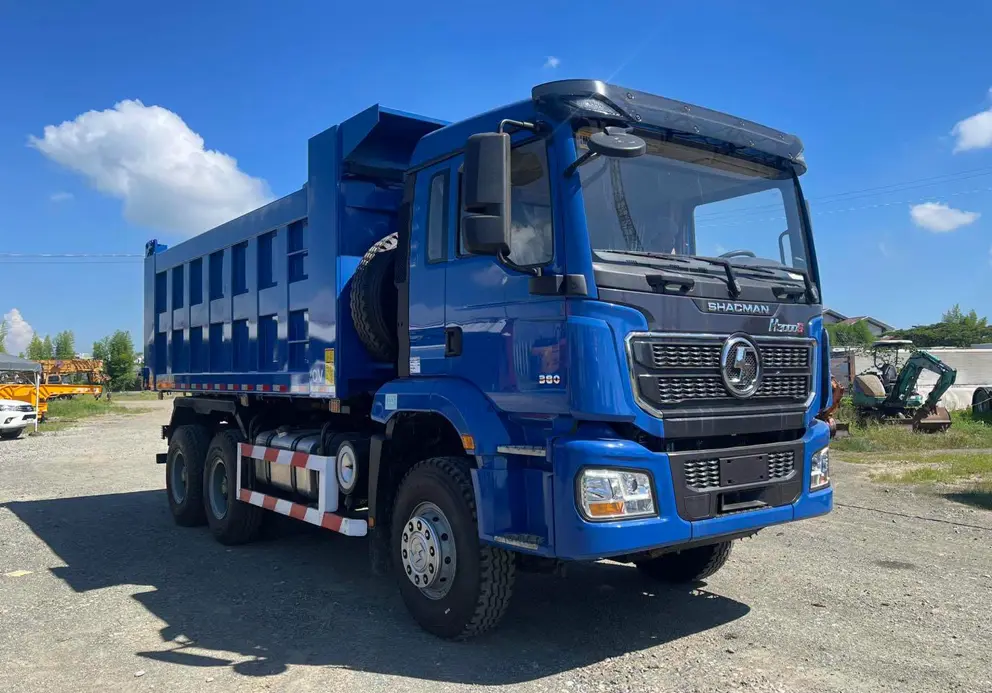

The Shacman H3000S 6×4 Dump Truck is a heavy-duty tipper engineered for the most demanding construction, mining, and infrastructure haulage operations. As an enhanced evolution of the proven H3000 platform, the H3000S delivers a comprehensive upgrade in power, durability, and driver comfort, making it a reliable workhorse for operators in Africa, Southeast Asia, and other rugged markets.
The truck is powered by a Weichai WP10.380E22 diesel engine, a 9.726L inline-6 unit producing 380 horsepower (279 kW) and a maximum torque of 1390 N·m. This high-torque output ensures strong pulling power even when fully loaded on steep gradients and unpaved haul roads. The engine meets Euro 2 emission standards, offering a balance between robust performance and operational simplicity for markets with varying fuel quality. Power is delivered through a Fast 10JSD180+QH50 10-speed manual transmission with a Φ430 diaphragm clutch, providing precise control and reliable power transfer.
| SHACMAN H3000 6X4 DUMP TRUCK | |
| Vehicle Model | SX3255MT384 |

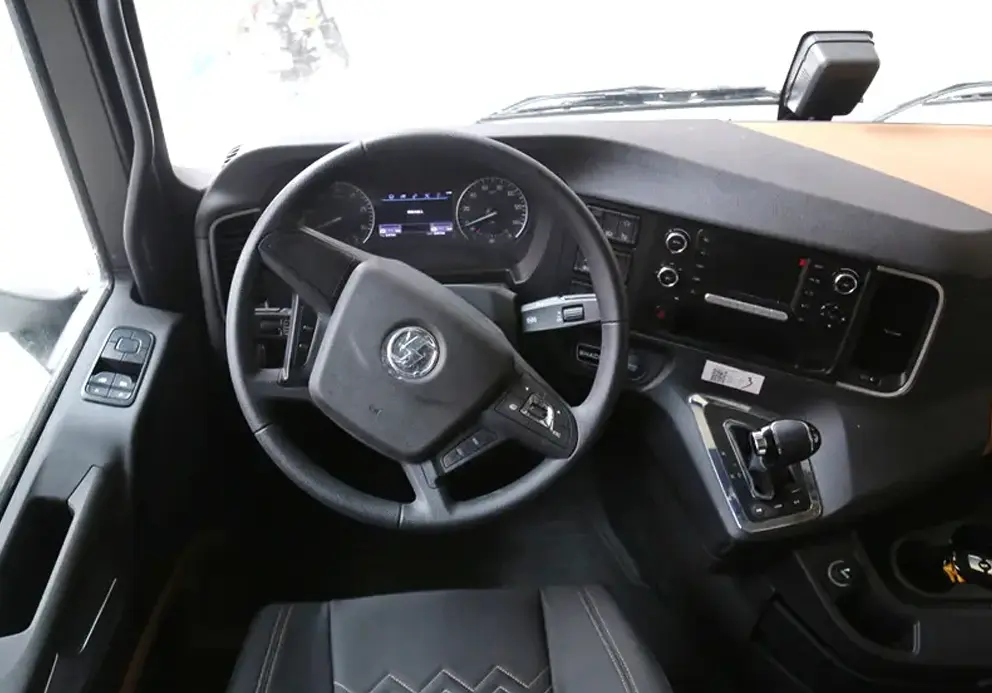

| Cab | H3000 middle-lengthened flat roof cab, four-point hydraulic suspension, hydraulic main seat, single cooling A/C, electric windows, manual flip, metal bumper |
| Drive Type | 6×4 |
| Engine | Weichai WP10.380E22 |
| Emission Standard | Euro 2 |
| Displacement | 9.726 L |
| Rated Power | 279 kW / 380 HP |
| Maximum Torque | 1390 N·m (some sources indicate ≥2500 N·m) |
| Transmission | Fast 10JSD180+QH50, 10-speed manual |
| Clutch | Φ430 diaphragm clutch |
| Front Axle | MAN 9.5T |
| Rear Axle | MAN 16T double reduction axle, ratio 5.92 |
| Frame | 850×300 (8+7) mm |
| Suspension | Front/Rear multi-leaf spring |
| Tires | 12.00R20 (10+1 pieces) |
| Fuel Tank | 400L aluminum alloy fuel tank |

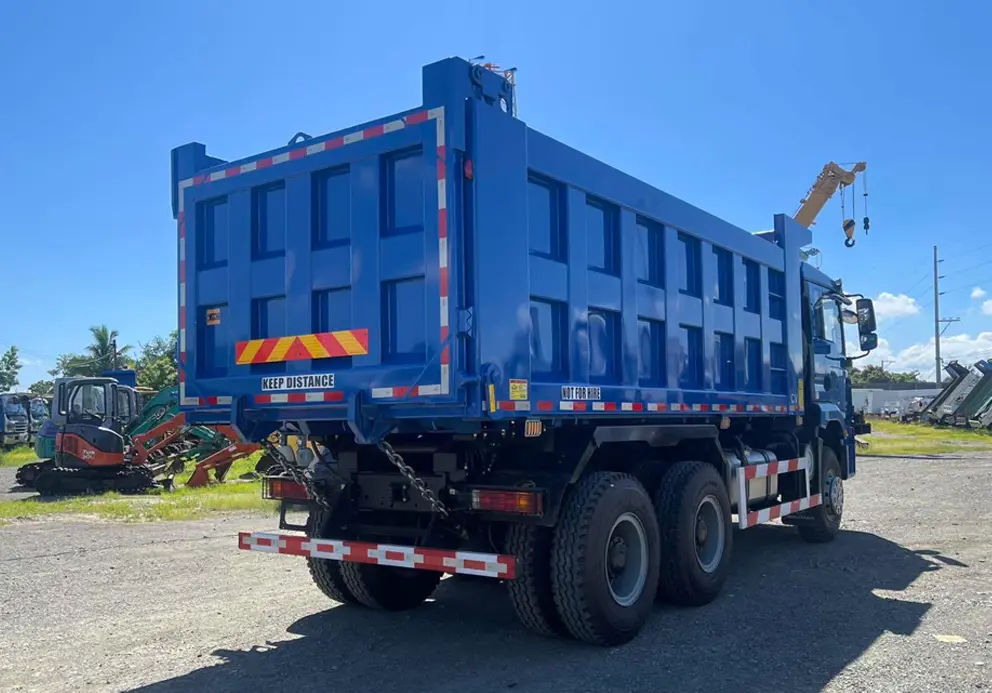

| Cargo Box Dimensions | 5600×2300×1500 mm (customizable, e.g., U-shaped box) |
| Floor/Side Plate Thickness | Floor 8mm / Side 6mm (optional 10mm/12mm floor, 4mm/6mm side) |
| Lifting System | Front or middle lifting (HYVA type) |
| Wheelbase | 3775+1400 mm |
| Overall Dimensions (L×W×H) | Approx. 9880×2550×3340 mm |
| Maximum Speed | 75 km/h |
| Maximum Gross Vehicle Weight | ≤50 T |
| Number of Tires | 10 |

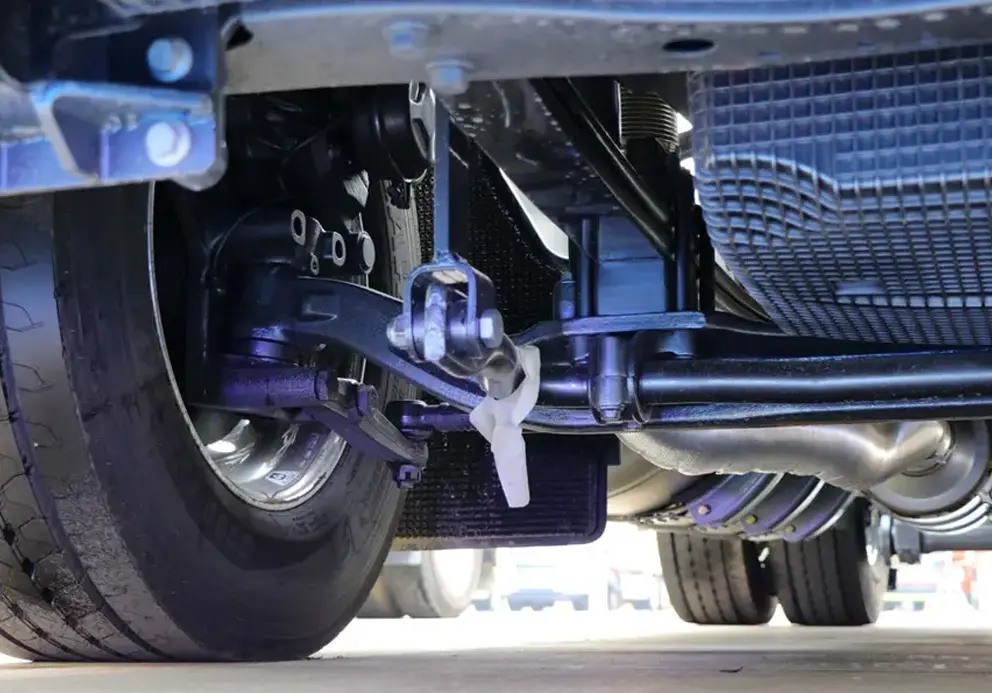

Built on a high-strength steel chassis frame measuring 850×300 (8+7) mm, the H3000S is designed for maximum torsional stiffness and structural integrity under heavy loads. The truck features a MAN 9.5T front axle and a 16T MAN double-reduction rear axle with a ratio of 5.92, delivering exceptional load-bearing capability. With a wheelbase of 3775+1400 mm, the vehicle achieves a maximum gross weight of up to 50 tons and a maximum speed of 75 km/h.
