Model
SX325065464N1R
Energy type
Prime Move
L*W*H (mm)
5385*2450*1800
Battery brand
CATL

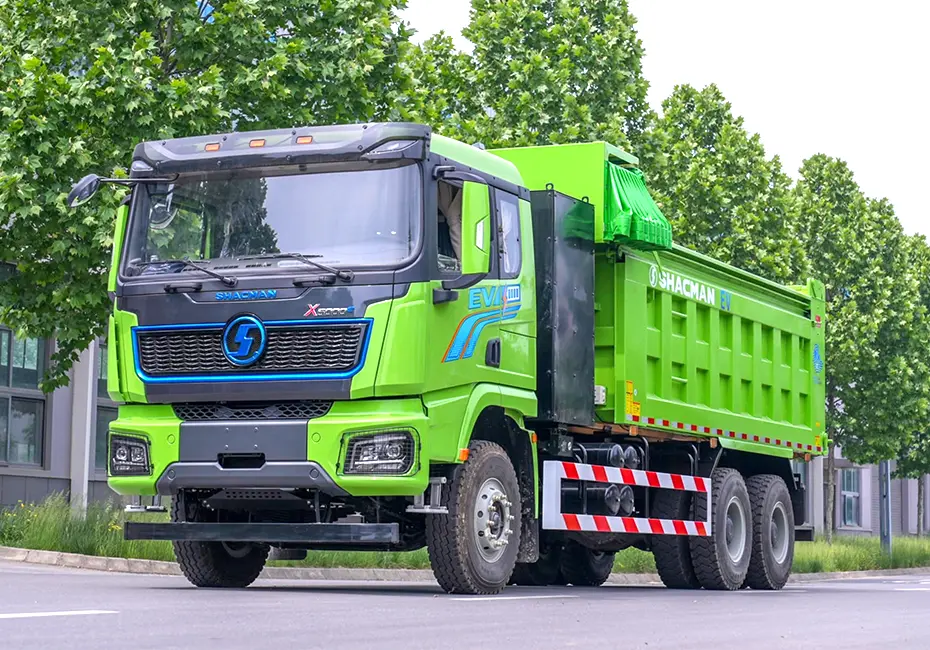

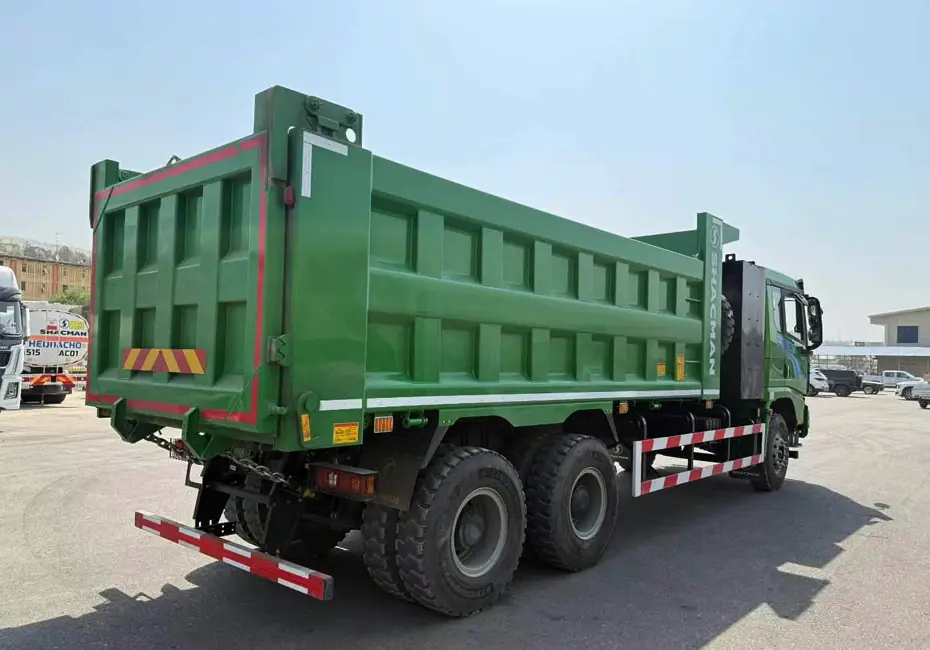

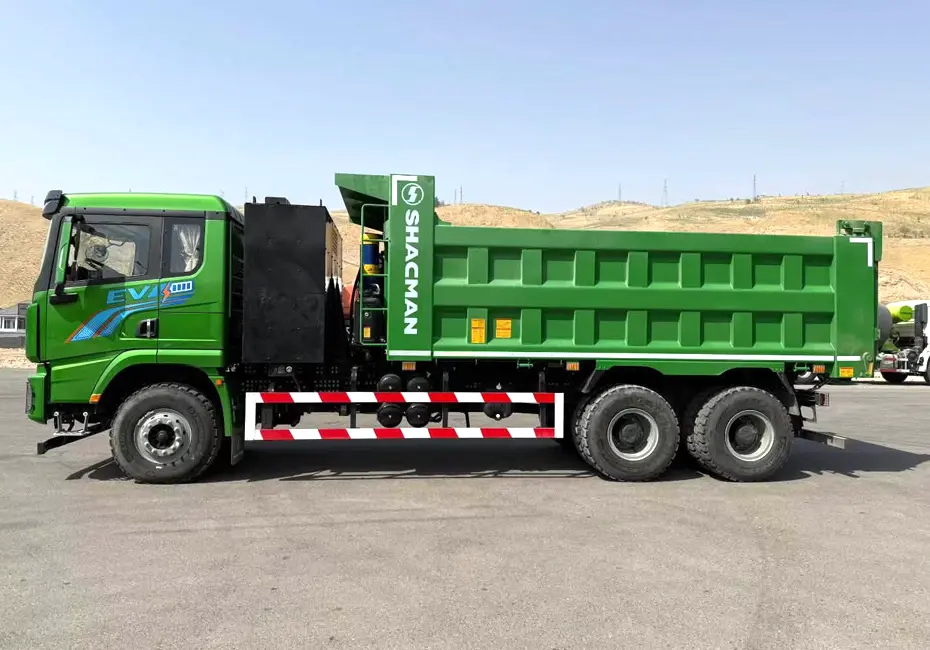

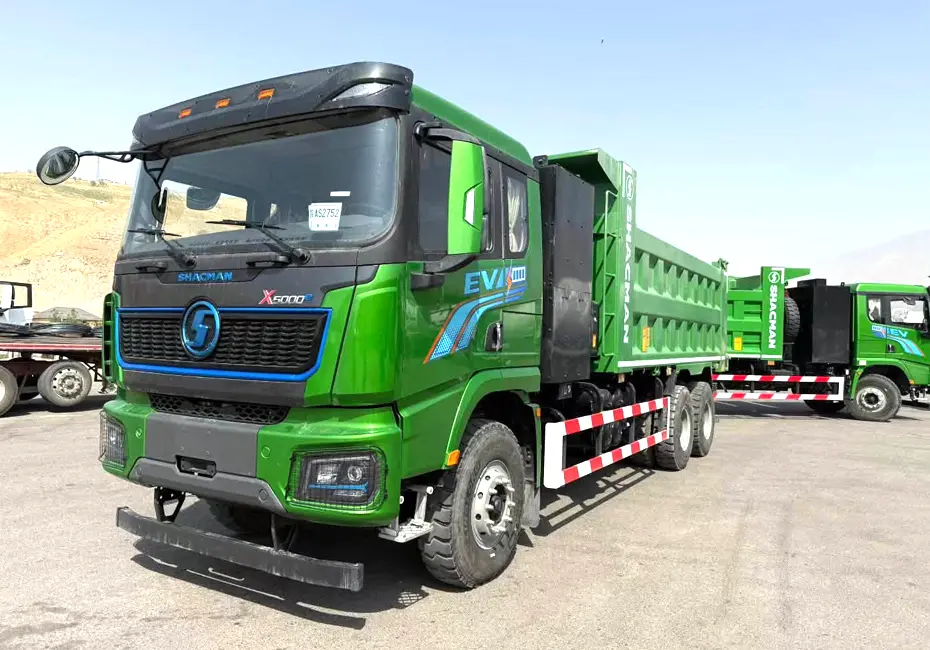

The Shacman X5000E Electric Dump Truck, model SX325065464N1R, is a 6×4 pure electric heavy-duty tipper engineered for zero-emission construction, mining, and urban infrastructure operations. It combines a permanent magnet synchronous motor with a CATL lithium iron phosphate battery pack, delivering instant torque for heavy loads while eliminating tailpipe emissions.
Battery Brand: CATL
Battery Type: Lithium Iron Phosphate (LFP)
Capacity: 310.66 kWh (standard configuration for this model; broader X5000E platform supports up to 422.87 kWh)
Energy Consumption: Approximately 2 kWh/km
Charging: Supports DC fast charging (150 kW replenishes 20–80% in ~35 minutes) and AC slow charging
| SHACMAN X5000E ELECTRIC DUMP TRUCK | |
| Model | SX325065464N1R |
| Cabin | X5000E medium-length flat-roof cab without air deflector |
| Driven type | 6×4 |
| Type | Dump Truck |
| Curb Weight(kg) | 20,320 |
| GVW(kg) | 25000 |
| Ground clearance (mm) | 298 |
| Length （mm) | 9320 |
| Width （mm) | 2550 |
| Height （mm) | 3460 |
| Drive Motor | |
| Type | TZ380XS030 Permanent Magnet Synchronous Motor |
| Rated Power（Kw） | 290 |
| Peak Power（Kw） | 430 |
| Rated Torque（Kw） | 1750 |
| Peak Torque（Kw） | 280 |
| Battery | |
| Brand | CATL |
| Type | Lithium Iron Phosphate |
| Capacity(kW.h) | 310.66 kWh |
| Placement form | Rear |
| Type | Charging |
| Transmission | |
| Type | 6.00E+240 |
| Number of gears | 6 |
| Shift Type | AMT |
| Steering | |
| Type | Right-hand drive |
| Chassis | |
| Frame | 850×320 （8+7+8） |
| Wheel base (mm) | 4820+1390 |
| Suspension | |
| Front Suspension | Multi-leaf spring |
| Rear Suspension | Multi-leaf spring (with four U-bolts) |
| Axles | |
| Front axle | 9.5T front axle |
| Rear axle | 16T drum-type drive axle |
| Tires | |
| Type | 12.00R20 |
| Numbers | 10+1 |
| Equipment | Hydraulic suspension |
| Air main driver seat | |
| Electric window regulators | |
| Manual cab tilting | |
| AC | |
| ABS (Anti-lock Braking System) | |
| 165Ah Maintenance-free battery | |
| LED headlights | |
| Three-step boarding ladder | |
| Engineering vehicle bumper | |
| LED lights | |
| Body | |
| L*W*H (mm) | 5385*2450*1800 mm |
| Model | Rectangular cargo box, lattice-type structure |
| Hydraulic cylinder | Front-mounted lifting cylinder |
Frame: 850×320 (8+7+8) mm high-strength steel
Front Axle: 9.5T
Rear Axle: 16T drum-type drive axle
Suspension: Multi-leaf spring (front and rear)
Tires: 12.00R20, 10+1 units

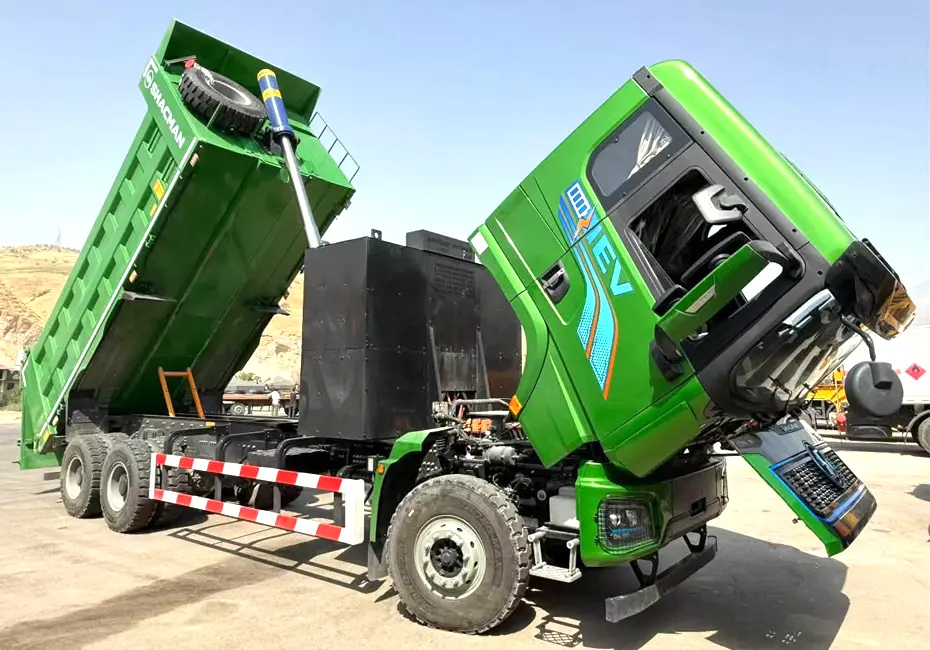

Dump Body: Rectangular cargo box, lattice-type structure, front-lifting hydraulic cylinder, dumping angle up to 50°
