Vehicle type
SX5255GJBJT384
Engine
WP10.340E32
Emission standard
Euro II
Dimensions(LxWxH)
8475X2495X3774

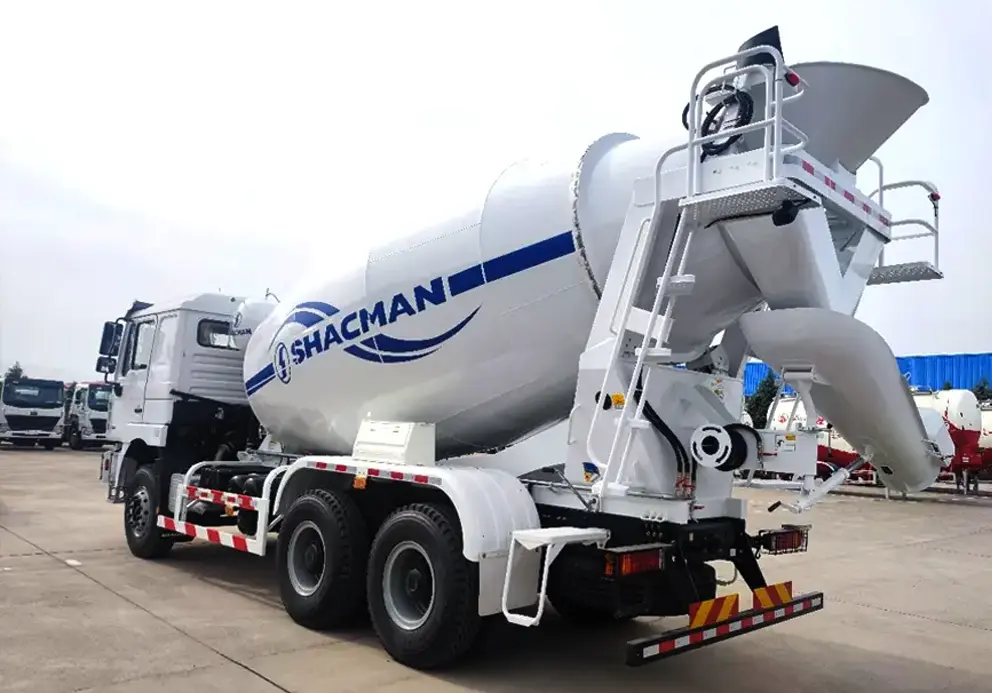

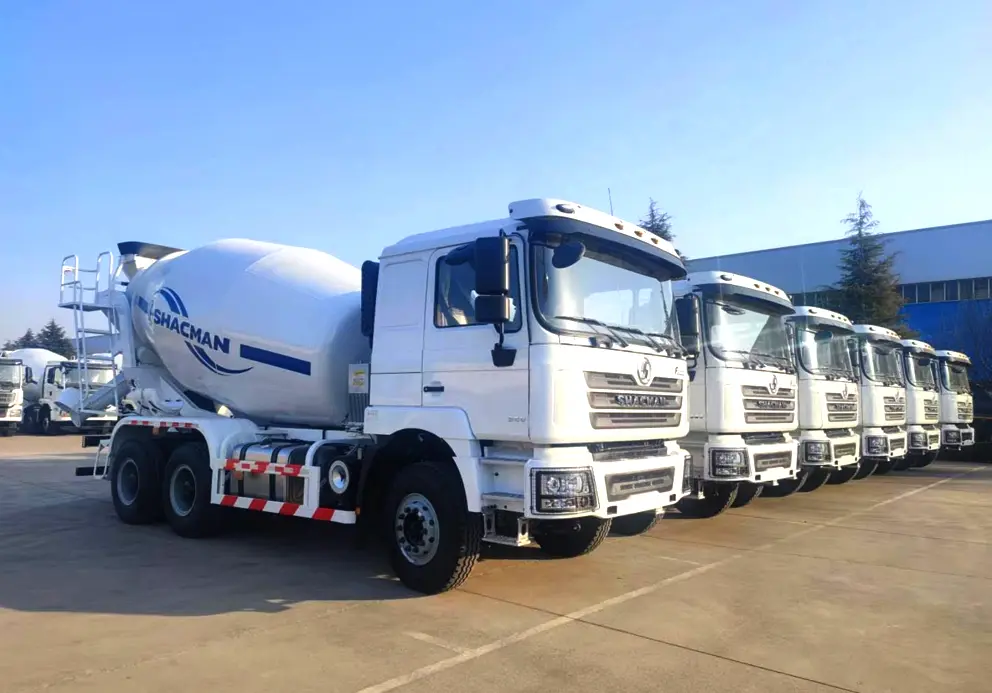

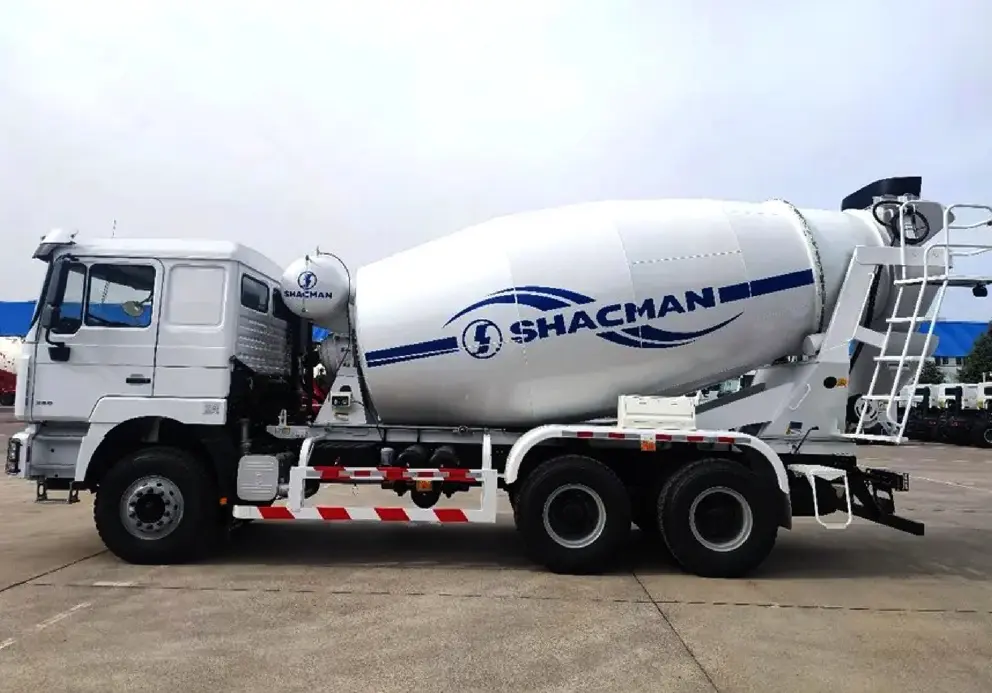

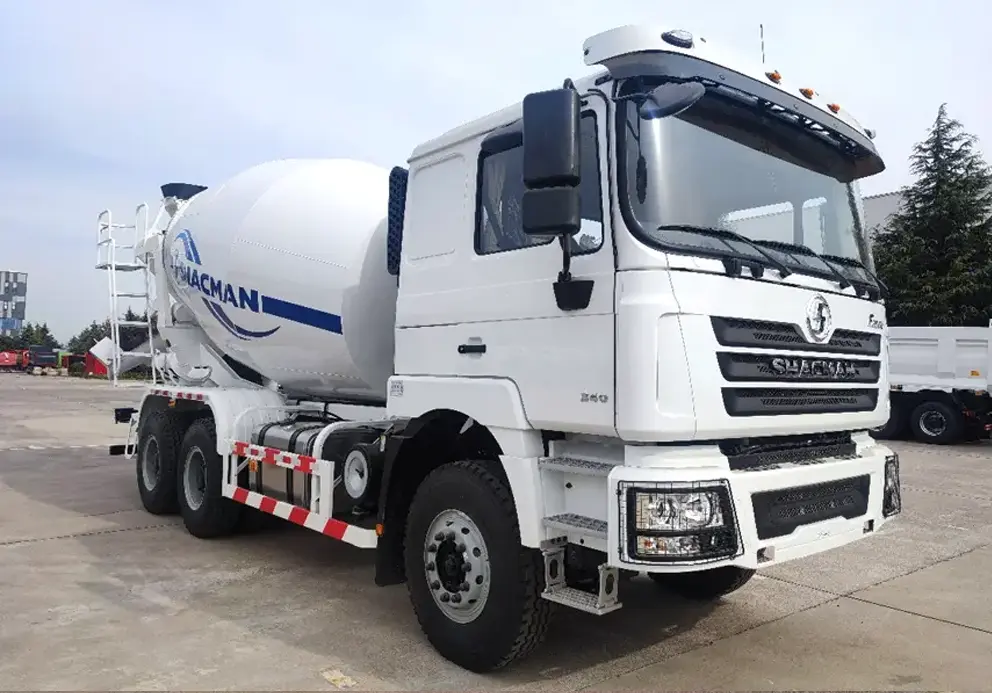

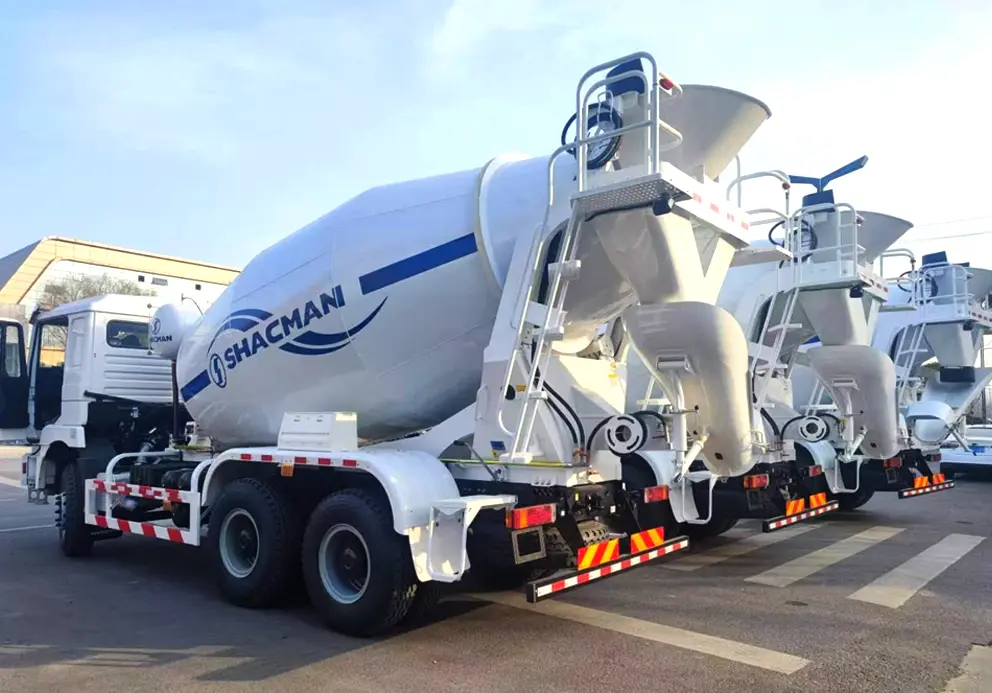

The Shacman F3000 6×4 Mixer Truck, identified by model SX5255GJBJT384, is a heavy-duty concrete mixer built on the proven F3000 chassis platform. Since its introduction in 2009, the F3000 series has become one of Shacman’s best-selling products, known for its reliability, ruggedness, and ability to handle demanding construction and mining operations.
The truck is powered by a Weichai WP10.340E32 diesel engine, a 9.7L inline-6 unit producing 340 horsepower (250 kW) and 1350 N·m of torque. A Cummins ISM11 engine option is also available, delivering 345–385 horsepower for export markets. Power is transmitted through a Fast 9JS135 9-speed manual transmission, paired with a Φ430 clutch for reliable power delivery. The truck features a 6×4 drive configuration with a maximum gradeability of 34%.
| SHACMAN F3000 6X4 MIXER TRUCK | |||
| Logistics type | Concrete | Bulk cement | |
| Distance(km) | ≤50 | ≤300 | |
| Road type | Paved roads | ||
| Drive | 6X4 | ||
| Max weight(t) | ≤50 | ≤70 | |
| Load/Volume | ≤9-10 | ≤25 | |
| Max speed(km/h) | 40~55/80 | 40~55/80 | |
| Loaded speed(km/h) | 30~65 | 30~65 | |
| Vehicle model | SX5255GJBJT384 | SX5255GSNJM434 | |
| Engine | WP10.340E32 | WP10.290E32 | |
| Emission standard | Euro II | Euro II | |
| Displacement | 9.7L | 9.7L | |
| Rated Output | 250kw | 213kw | |
| Max. torque | 1350N.m | 1160N.m | |
| Transmission | 9JS135 | 9JS119+QH50 | |
| Clutch | 430 | ||
| Frame | 850X300(8+7) | 850X300(8+5) | |
| Front axle | MAN 7.5T | ||
| Rear axle | 16T STR double reduction5.262 | ||
| Tire | 12.00R20 | 12.00R20 | |
| Front Suspension | Multi leaf springs | Multi leaf springs | |
| Rear Suspension | Multi leaf springs | Multi leaf springs | |
| Fuel | Diesel | ||
| Capacity of the fuel tank | 380L | 400L | |
| Dimensions(LxWxH) | 8475X2495X3774 | 9975X2495X3774 | |
| Approach/Departure angle( °) | 28/18 | 12.20\ | |
| Max.grade ability(%) | 34 | 27 | |
| Cab | Type | ♦ Ring curtain♦ Real window♦ Manual sunroof♦ Hydraulic shock absorber seat♦ Fixed passenger seat♦ Four point air suspension♦ Seat sleeping bed♦ Manual flip | |
| Equipment | |||
| Optional | ♦ Chinese made clutch♦ Central locking | ||
The mixer drum has a geometric volume of 5 m³ and a filling rate of 58.7%, with a rotation speed of 6–8 r/min. The feeding speed is 3 m³/min, and the discharging speed is 2 m³/min, with a residual discharge rate of less than 0.3%. The water supply system uses air pressure, with a 400L water tank. The overall dimensions are 8475×2495×3774 mm, with an approach/departure angle of 28°/18°.
