Model
SX32556T404
Horsepower
380HP
Rated load
15.37 tons
Wheelbase （mm）
3975+1400
Powerful and Reliable Heavy-Duty Tipper

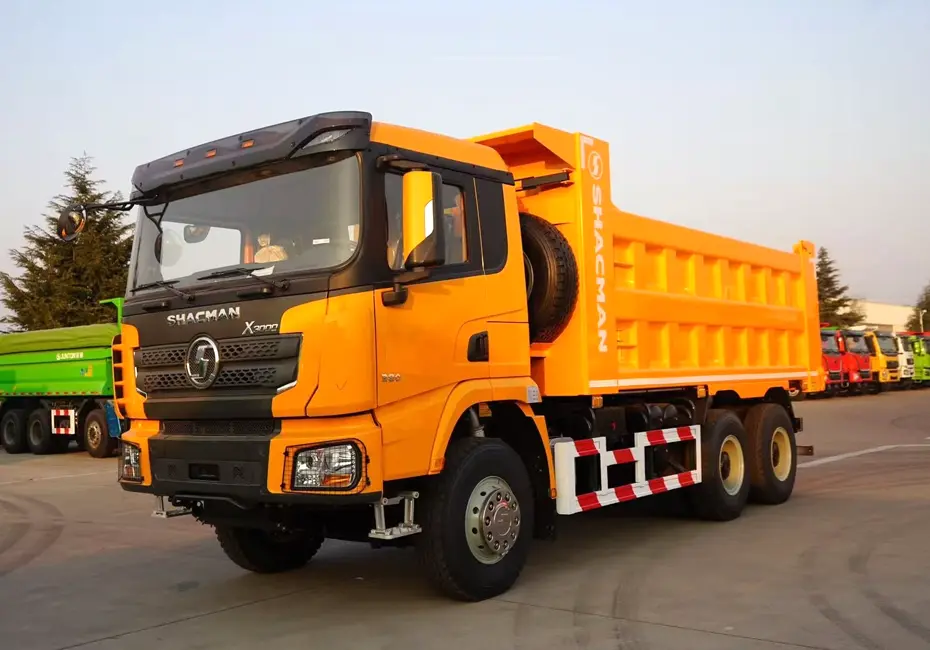

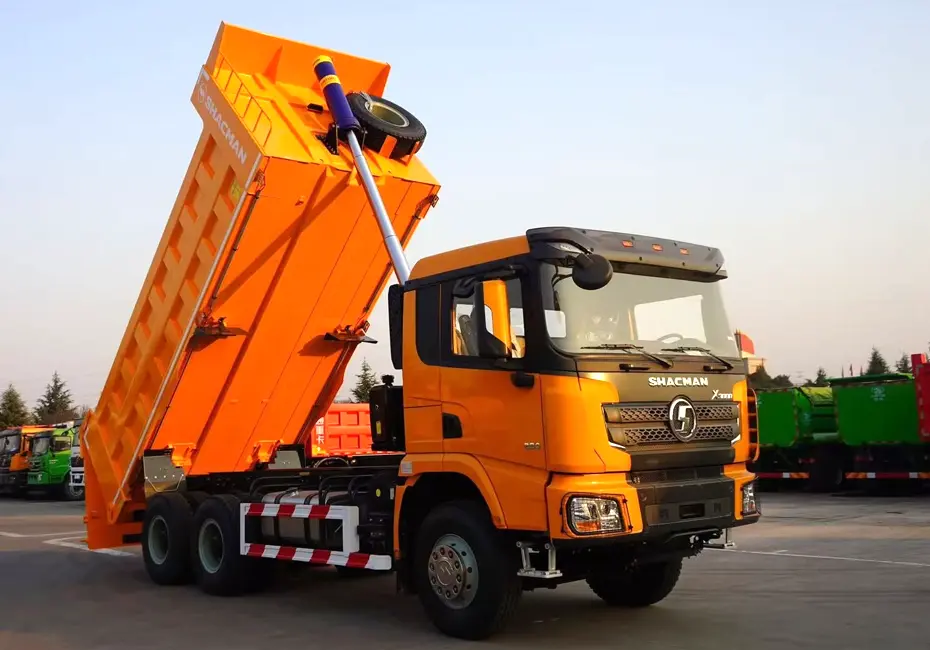

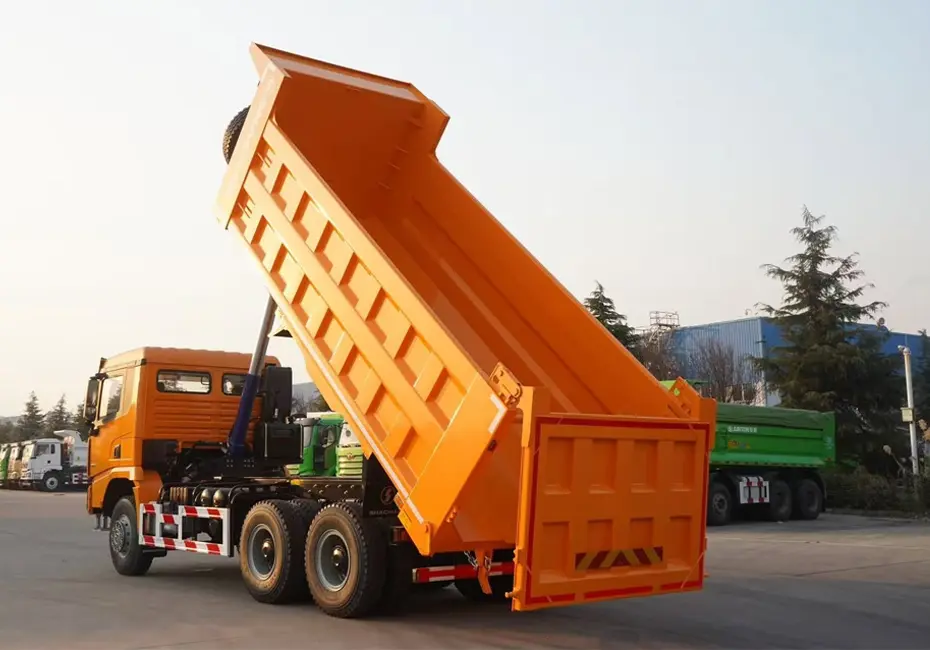

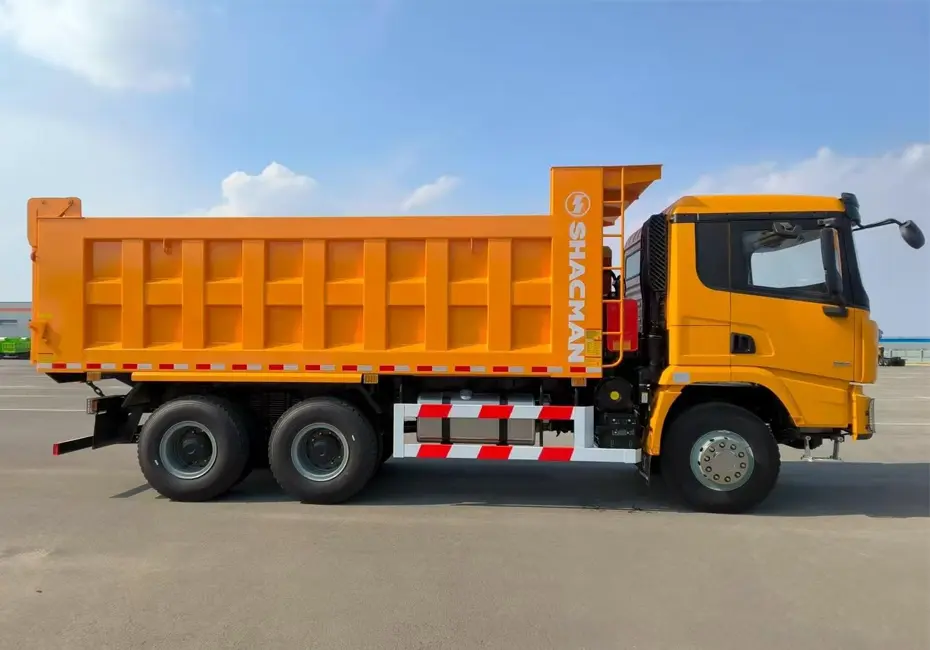

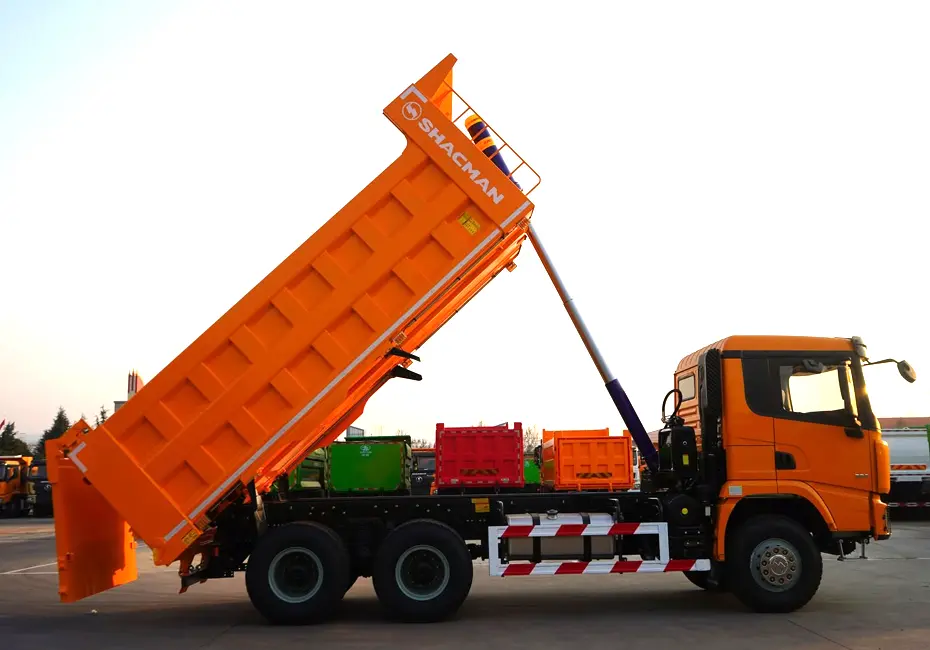

The Shacman X3000 6×4 Tipper Truck with 380HP is engineered for demanding construction, mining, and infrastructure projects. Combining proven Weichai power with a reinforced 6×4 chassis, it delivers dependable performance for bulk material hauling in the toughest working conditions.
Proven Powertrain: The Weichai WP10.380E22 engine delivers 380HP with strong low-end torque, paired with a FAST 12-speed manual transmission for smooth, efficient power delivery across varied terrains.
Reinforced Chassis: The 850×300 mm high-strength steel frame with multi-leaf spring suspension provides exceptional durability and load-bearing stability under extreme working conditions.
Heavy-Duty Axles: MAN 9.5T front axle and 16T double-reduction rear axle with a 5.92 ratio offer superior traction and reliability for heavy payloads.
Comfortable Cabin: The X3000 cabin features an air-suspended driver seat, four-point hydraulic suspension, electric heated mirrors, automatic climate control, and a multi-function steering wheel for reduced operator fatigue.
| SHACMAN X3000 6X4 TIPPER TRUCK | ||
| MODEL | SX32556T404 | |
| Driver position | Left Hand | |
| Driving type | 6*4 | |
| Wheelbase/(mm) | 3975+1400 | |
| Max. Speed/(km/h) | 75km/h | |
| Engine
|
Brand | WEICHAI |
| Model | WP10.380E22 | |
| Emission Standard | EURO II | |
| Rated output power/ | 279KW/380HP | |
| Displacement(L) | 9.726L | |
| Transmission
|
Brand | FAST |
| Model | 12JSD200T-B–QH50 | |
| Front axle | Brand | HANDE |
| Model | MAN 9.5T | |
| Rear axle | Brand | HANDE |
| Model | 16T MAN double reduction driving axle Speed ratio: 5.92 | |
| Clutch | ￠430 diaphragm clutch | |
| Steering | ZF technology | |
| Frame | 850×300(8+7) | |
| Suspension | Front and rear multi-leaf spring four main flims+four horse riding | |
| Fuel tank | 400L Aluminum alloy | |
| Tire | 12.00R20 | |
| Brakes | Running brake: Dual circuit compressed air brake | |
| Parking brake: Air discharging with spring control | ||
| Auxiliary brake: Engine exhaust brake | ||
| Cabin | X3000 medium length flat top cab without top air deflector, air main seat, four point hydraulic suspension,
electric heated rearview mirror, electronic automatic temperature control air conditioning, electric window shaking machine, manual flipping, metal bumper, three-level boarding pedal, central locking, oil bath air filter, ordinary exhaust, water tank protection grille, tail light protection grille, 165Ah maintenance free battery, SHACMAN logo, all Russian logo, front headlight protection grille, iron air storage cylinder, stainless steel wheel rim decoration cover, reverse buzzer, 2kg fire extinguisher, parking wedge, telescopic shaft control, daytime running lights |
|
| Upbody | 5800*2300*1700（mm） Bottom 8 sides 6 | |
Safety Features: Dual-circuit compressed air brakes, engine exhaust brake, ABS, and reinforced metal bumper ensure reliable stopping power and operator protection.
Construction and Infrastructure: Hauling sand, gravel, and aggregates for road, dam, and building projects.
Mining Operations: Transporting coal, ore, and other bulk materials from pits to processing sites.
Quarries and Ports: Efficient material handling with a durable square bucket body designed for high-volume loading and unloading.
