Model
SX3255DR384
Engine
WP10/WP12/M10/ISM11
Fuel tank
400L aluminum
Wheel base(mm)
3775+1400
Reliable Heavy-Duty Tipper for Africa and the Middle East

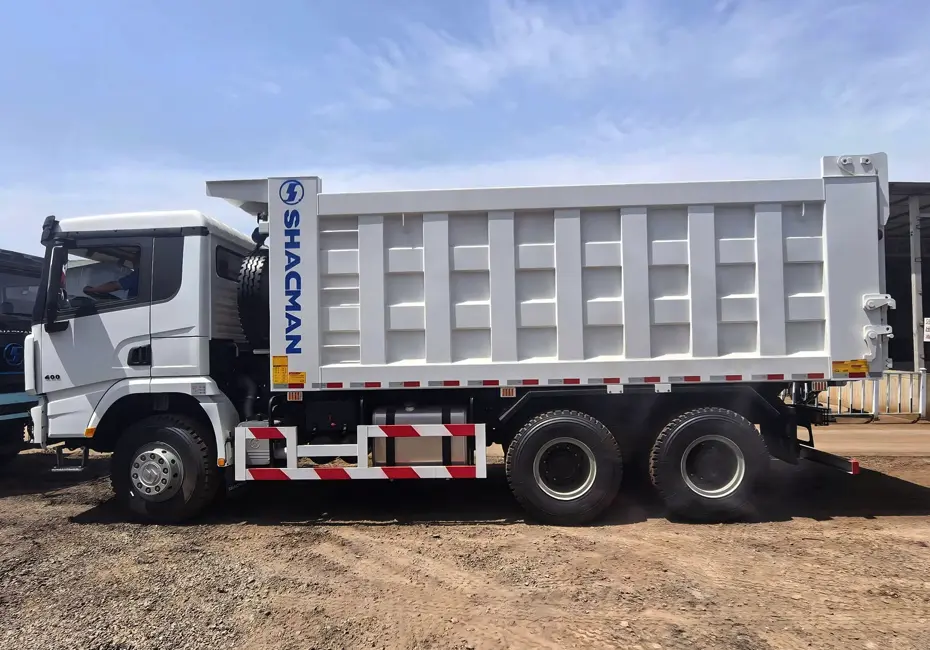

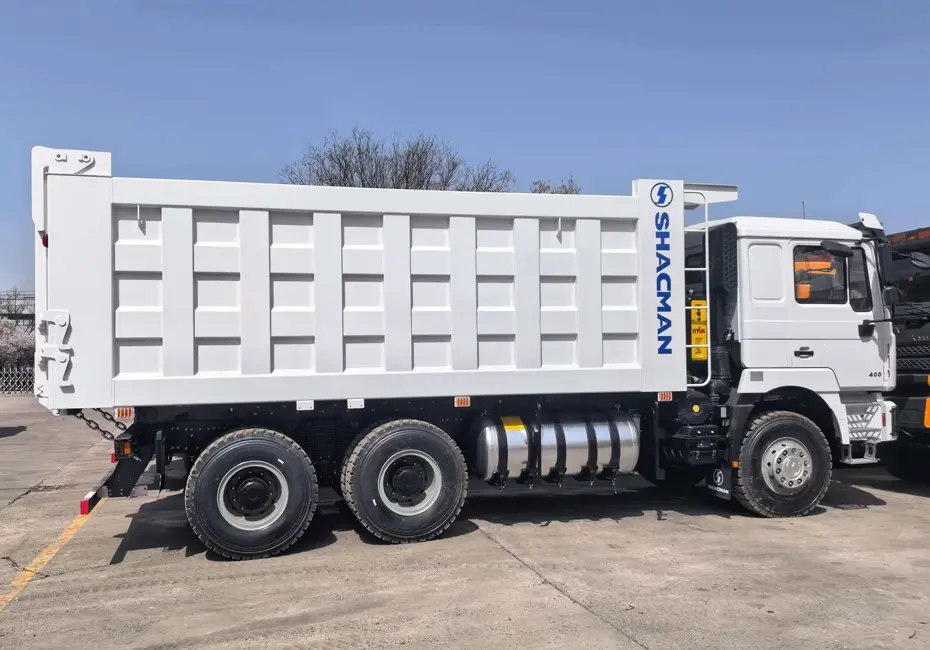

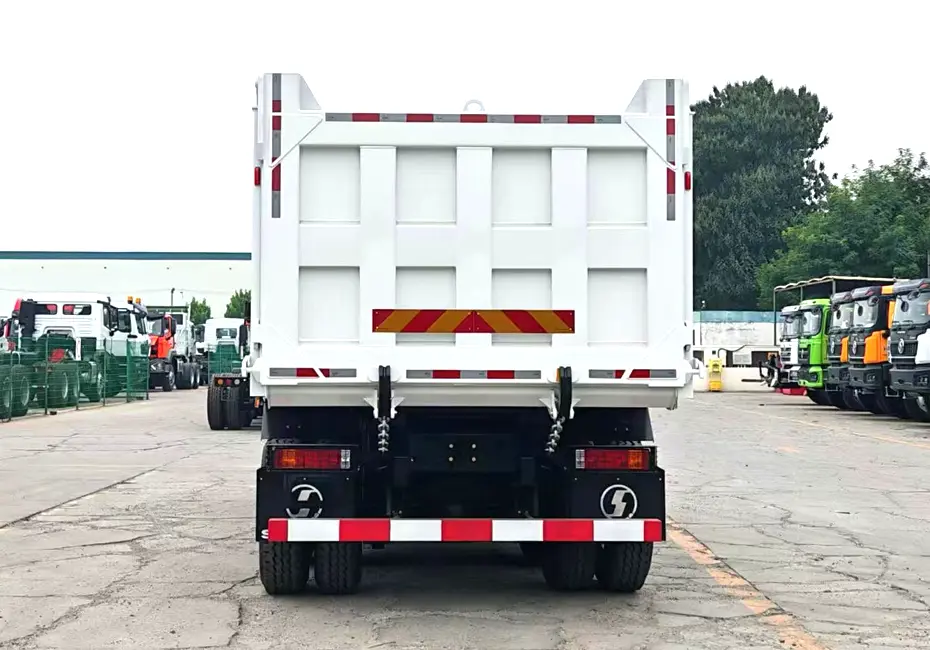

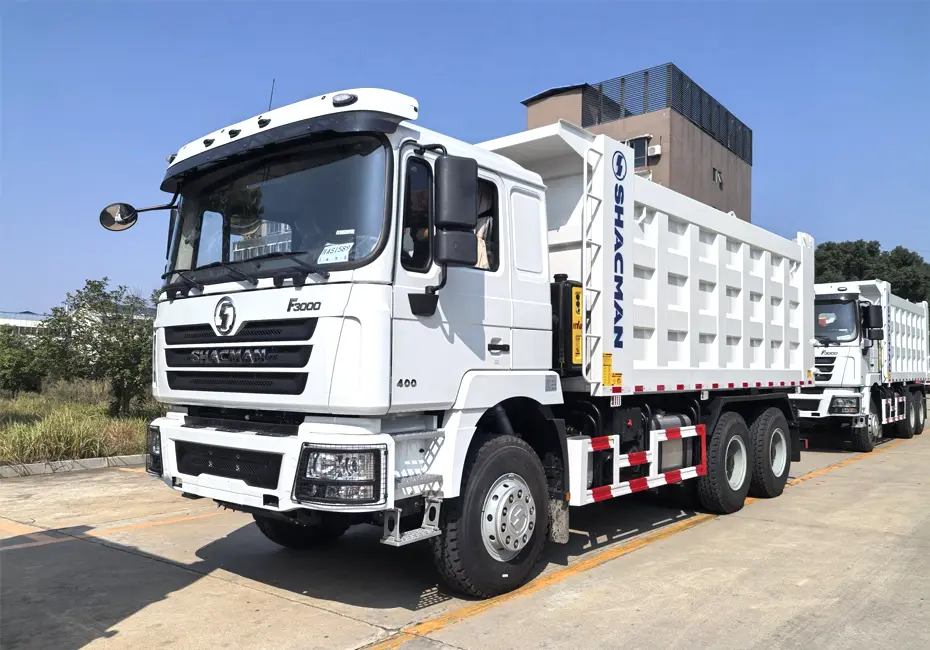

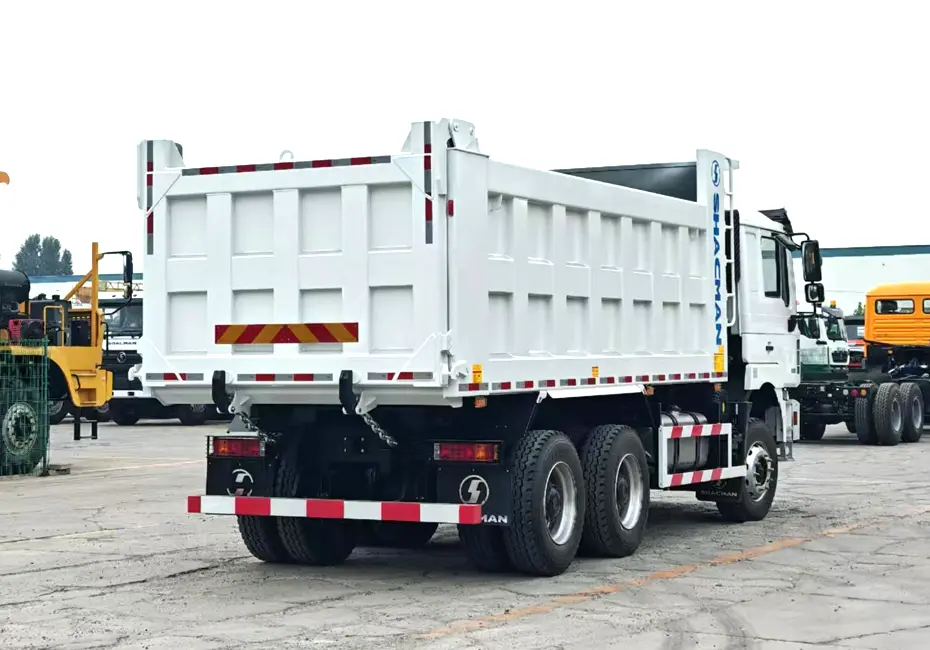

The Shacman F3000 6×4 Tipper Truck is a proven workhorse engineered for muck, sand, and aggregate transport in mining and infrastructure projects. Built on MAN technology, it combines a durable chassis with a comfortable cab, making it a key force in Algeria’s construction sector.
Proven Powertrain: The WP10.340E22 engine delivers strong low-end torque, paired with a reliable 9-speed manual transmission for stable, efficient power delivery under heavy loads.
Reinforced Chassis: The 850×300 mm frame with double-layer steel plate construction resists deformation on soft-based roads and gravel terrain.
Heavy-Duty Axles: The 16T double-stage cast rear axle with 5.92 ratio provides excellent load-bearing and torsion resistance for fully loaded operation.
| SHACMAN F3000 6X4 TIPPER TRUCK | |||
| Drive | 6×4 | ||
| GVW(t) | 50 | ||
| Main configuration | Cab | Type | Medium-length flat roof |
| Suspension | Hydraulic suspension | ||
| Seat | Hydraulic main seat | ||
| Air conditioner | Electric automatic constant temperature AC | ||
| Engine | Model | WP10/WP12/M10/ISM11 | |
| Emmission standard | EURO II-EUROV | ||
| Rated power (hp) | 336/340/375/380/385/400/420/430 | ||
| Transmission | Model | MT(10/12) | |
| Axle | Front axle | 9.5t | |
| Rear axle | 16t double-stage | ||
| Ratio | 5.262/5.92 | ||
| Chassis | Dimension(mm) | 850×300×(8+7) | |
| Wheel base(mm) | 3775+1400 | ||
| Wheel overhang(mm) | 850 | ||
| Fuel tank | 400L aluminum alloy/380L Iron | ||
| Tire | 12.00R20/12.00R24 | ||
| Suspension | Front and rear multi-leaf springs | ||
| Tipper container | 5600×2300×1500 | ||
| Applicable condition | Applicable road condition | Muddy and potholed roads with steep grades | |
| Basic equipment | Electric window lifter,metal bumper,two-stage pedal,water tank protection grille | ||
Hot-Climate Ready: Equipped with hot-zone air conditioning and oil-bath air filter to handle dusty, high-temperature environments in Africa and the Middle East.
Operator Comfort: Four-point hydraulic suspension cab, sound insulation board, and air suspension seat reduce fatigue during long shifts.
Safety Features: Domestic six-channel ABS, front underrun protection, reversing buzzer, and E-MARK certified components meet local regulatory standards.
