Model
SX33195D406
Engine
WP12.430E62
Rated load
15.37 tons
Wheel base(mm)
1950+3825+1400

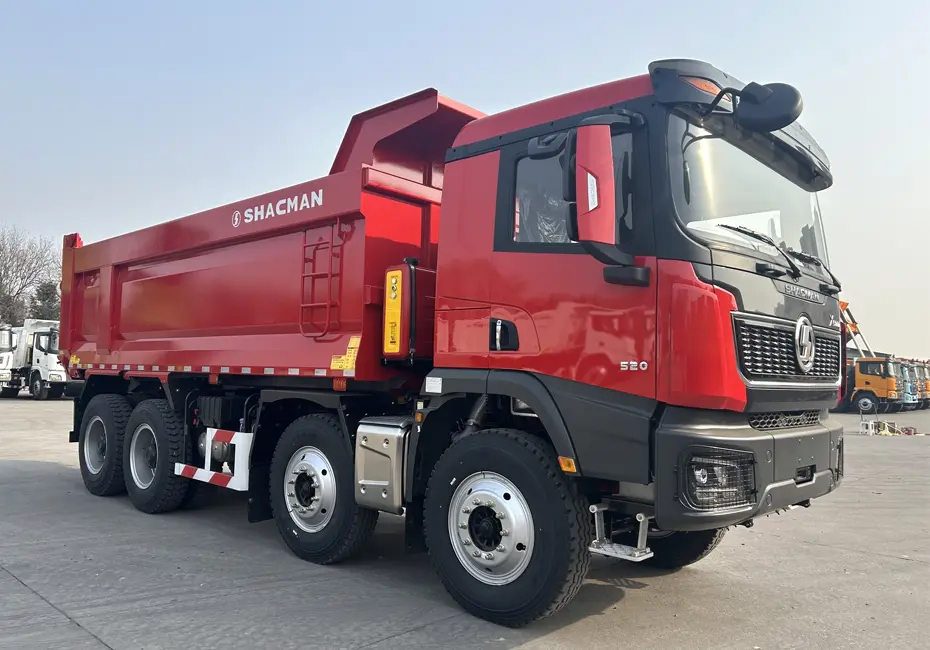

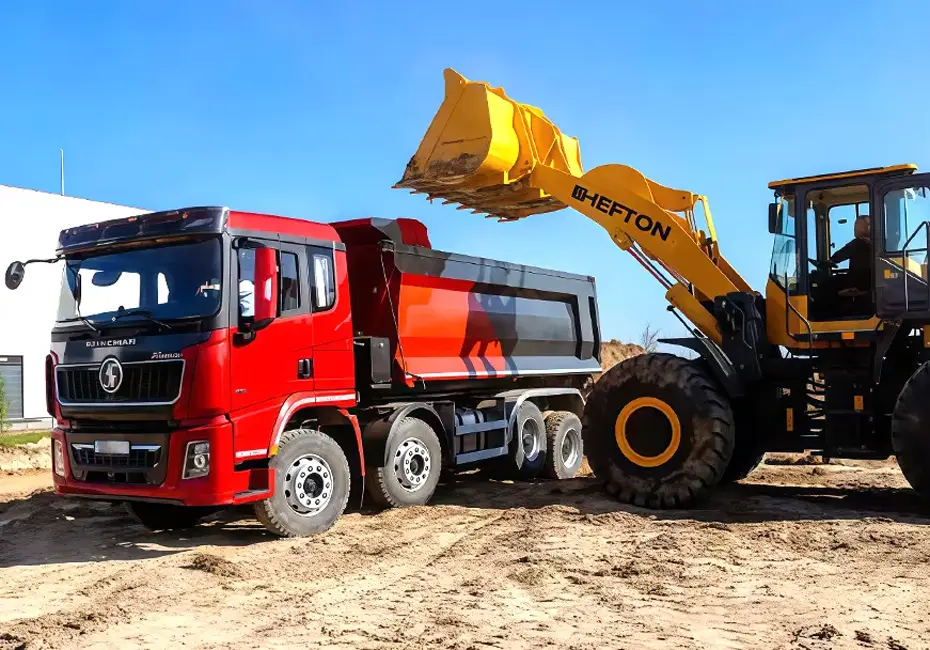

The Shacman X5000 8×4 Tipper Truck is a heavy-duty construction and hauling vehicle developed by Shacman (Shaanxi Automobile Group), the leading Chinese heavy truck brand with a global footprint. Designed for large-scale infrastructure projects, mining transportation and bulk cargo delivery, this model balances powerful performance, high loading capacity and fuel efficiency to meet the demands of heavy-duty working conditions across global markets.
Powertrain Configuration: Equipped with Weichai high-power diesel engines (available in 460HP / 510HP options) that meet Euro 3 / Euro 5 / Euro 6 emission standards, matching Fast gearboxes for stable torque output and smooth shifting. The mature power combination ensures reliable performance even under long-time full-load operation.

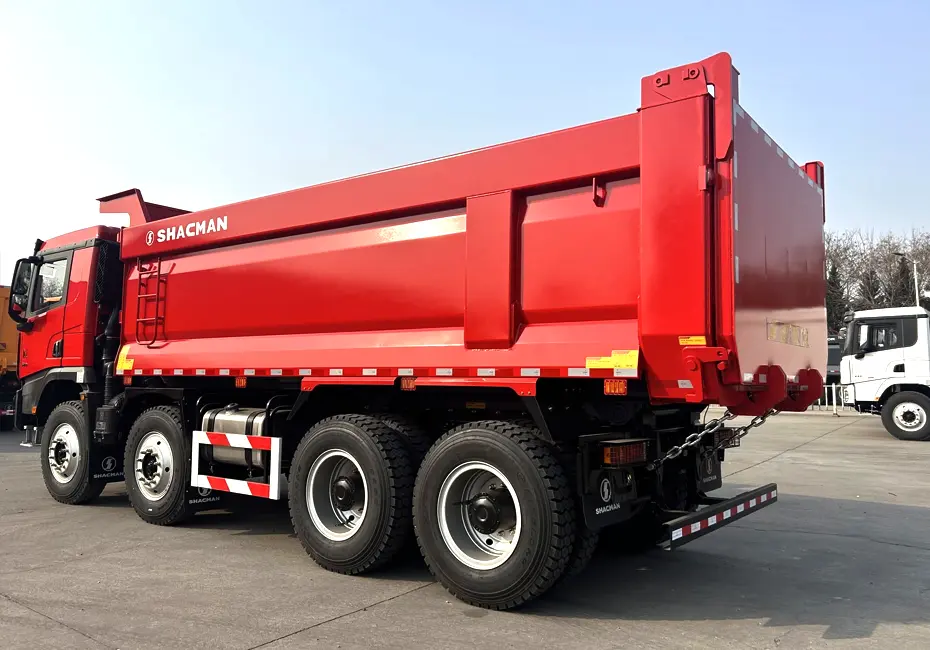

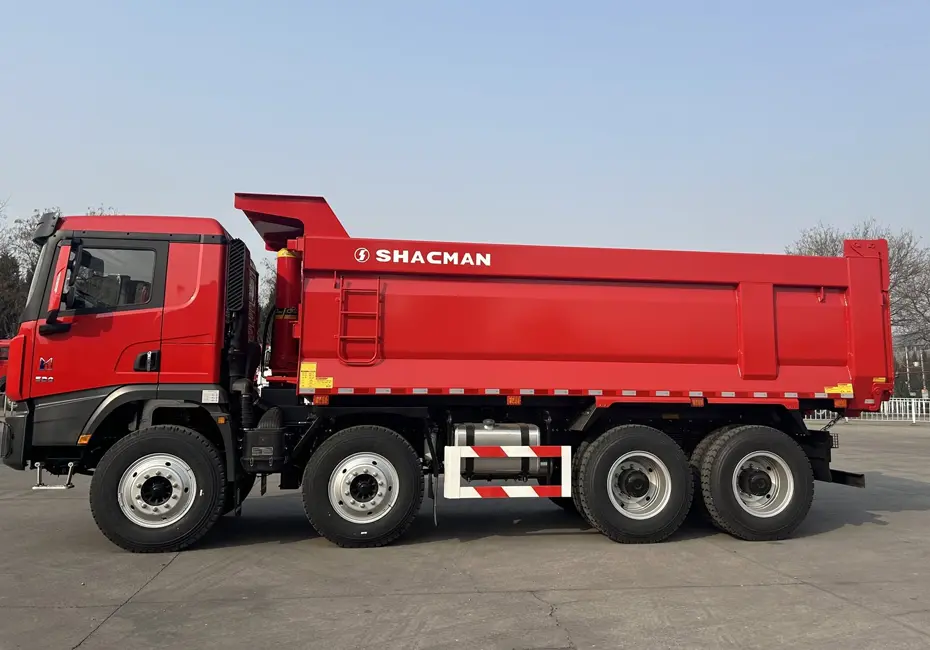

Chassis & Loading Capacity: 8×4 wheelbase layout with 12 wheels, support 31-40 tons of loading capacity. The U-shaped tipper body has optional length from 5.3m to 6.2m, made of high-strength wear-resistant steel to adapt to harsh carrying of stones, sand and ore. Equipped with 12.00R20 heavy-duty tires, the whole vehicle gross weight reaches 25 tons, with outstanding bearing stability.
| SHACMAN X5000 8X4 TIPPER TRUCK | |
| Model | SX33195D406 |
| Drive type: | 8X4 |
| Wheelbase: | 1950+3825+1400mm |
| Engine: | WP12.430E62 |
| Transmission: | Fast 12 block |
| Rear axle ratio: | 5.92 |
| Vehicle length: | 10.55 meters |
| Vehicle width: | 2.55 meters |
| Vehicle height: | 3.5 meters |
| Front track: | 2036/2036mm |
| Rear track: | 1860/1860mm |
| Total vehicle weight: | 15.5 tons |
| Rated load: | 15.37 tons |
| Total mass: | 31 tons |
| Tonnage class: | Heavy trucks |
| Approach angle: | 17 degrees (°) |
| Departure angle: | 17 degrees (°) |
| Place of origin: | Xi’an, Shaanxi |
| Remark: | Standard features: Three-section metal bumper, Tianxingjian Smart Edition, multimedia system, desert air filter, reinforced drive shaft, transmission telescopic shaft with flexible shifting, power take-off, engine under-vehicle start (WP model), radiator protection grille, electric tilt; Optional features: Oil bath air filter, dual-chamber fuel tank + fuel tank water heating, retarder, reserved space for radiator. |
| Energy type: | Diesel fuel |
| Engine model: | WP12.430E62 |
| Engine brand: | Weichai |
| Number of cylinders: | 6 cylinders |
| Fuel type: | Diesel fuel |
| Displacement: | 11.6L |
| Emission standards: | National VI |
| Maximum horsepower: | 430 HP |
| Maximum output power: | 316kW |
| Maximum torque: | 2100N·m |
| Maximum torque speed: | 1000-1400rpm |
| Rated speed: | 1900rpm |
| Maximum torque: | CR+DOC+DPF+Hi_SCR |
| Transmission model: | Fast 12 gears |
| Gearbox brand: | Fast |
| Forward gears: | 12 gears |
| Reverse gears: | 2 |
| Casing material: | aluminum casing |
| Cargo box length: | 7.6 meters |
| Cargo box width: | 2.35 meters |
| Cargo box height: | 1.5 meters |
| Cargo box type: | Self-unloading |
| Unloading method: | Self-unloading |
| Driver’s cab: | Extended flat-top cab |
| Cabin lifting capacity: | Electric |
| Driver’s seat type: | Air-cushioned seat |
| Fuel tank material: | Aluminum alloy |
| Fuel tank capacity: | 400L |
| Frame dimensions: | 850×300(8+7)mm |
| Front axle description: | MAN 7.5T front axle |
| Front axle allowable load: | 6500/6500kg |
| Rear axle description: | 16T MAN Dual-stage |
| Rear axle allowable load: | 18000 (two-axis assembly) kg |
| Speed ratio: | 5.92 |
| Suspension type (front/rear): | Multi-leaf spring + four-wheeled |
| Number of leaf springs: | 14/14/12 |
| Tire specifications: | 12.00R20 18PR |
| Number of tires: | 12 |

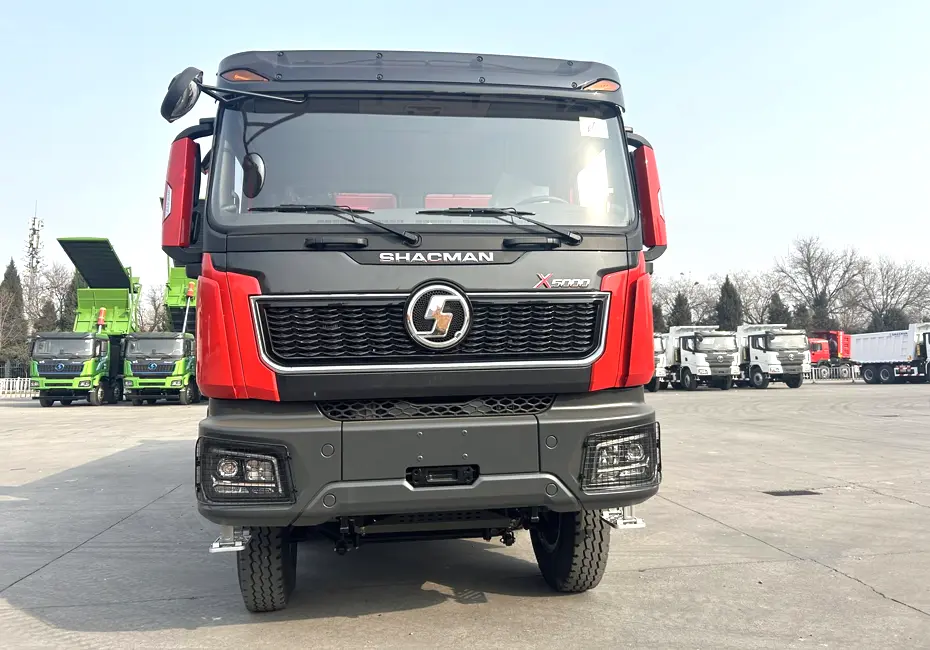

Based on the Delong X5000 platform, this model inherits Shacman’s consistent rugged family design: the open-work front grille improves engine heat dissipation efficiency, the vertically arranged LED headlights provide clearer night lighting, and the three-dimensional front face design has high recognition.
The interior is designed for long-distance heavy-duty work: multi-level boarding pedals for easy access, ergonomic adjustable driver seat with ventilation function, and flat-bottom steering wheel to create a more comfortable and practical driving space.
