Model
SX3313M3M39J3660
Horsepower
385HP
Payload
30 tons
Drive
8x4
Powerful and Durable Heavy-Duty Tipper

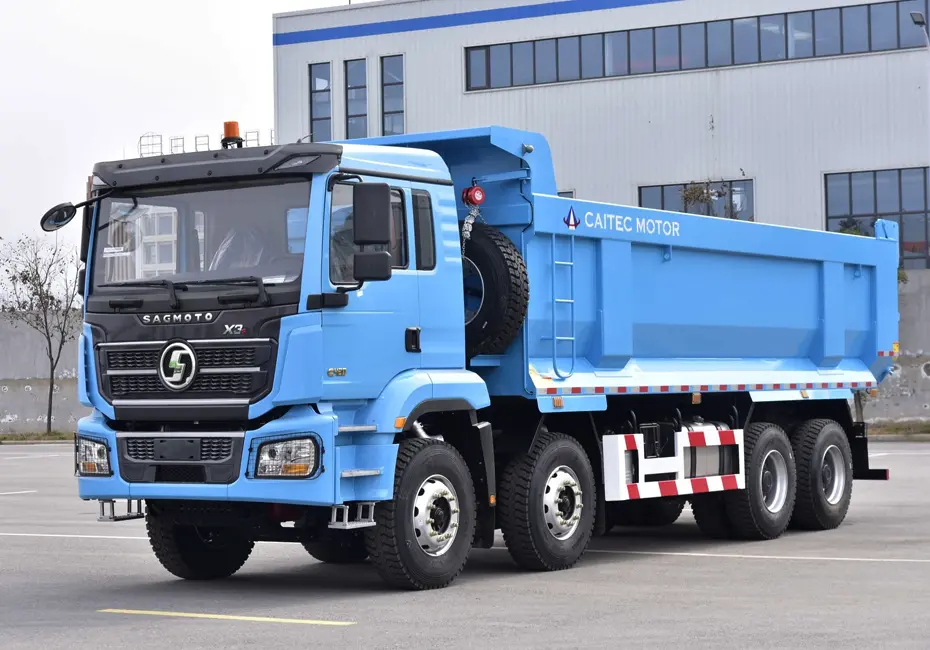

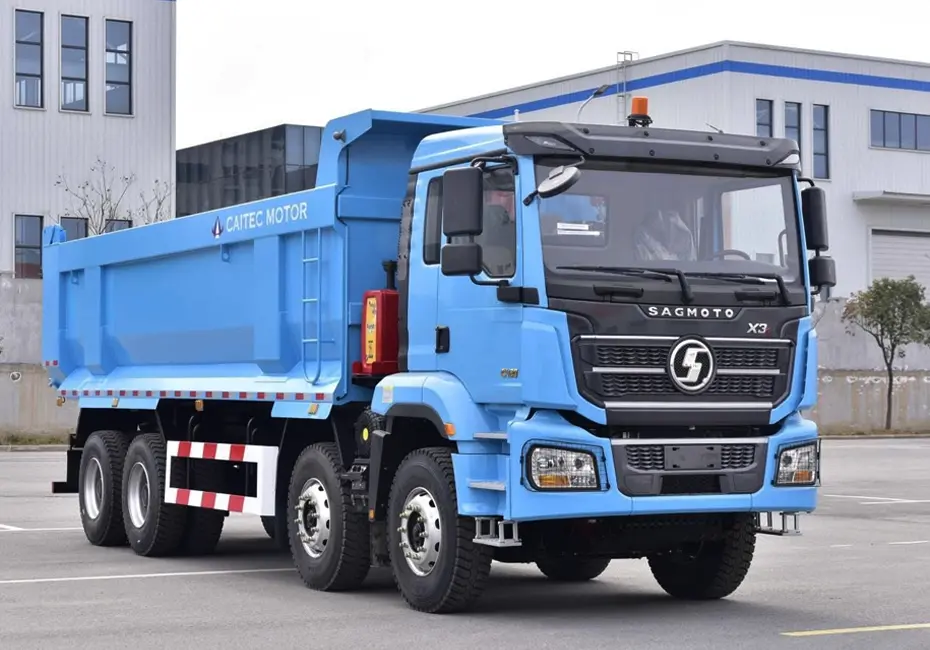

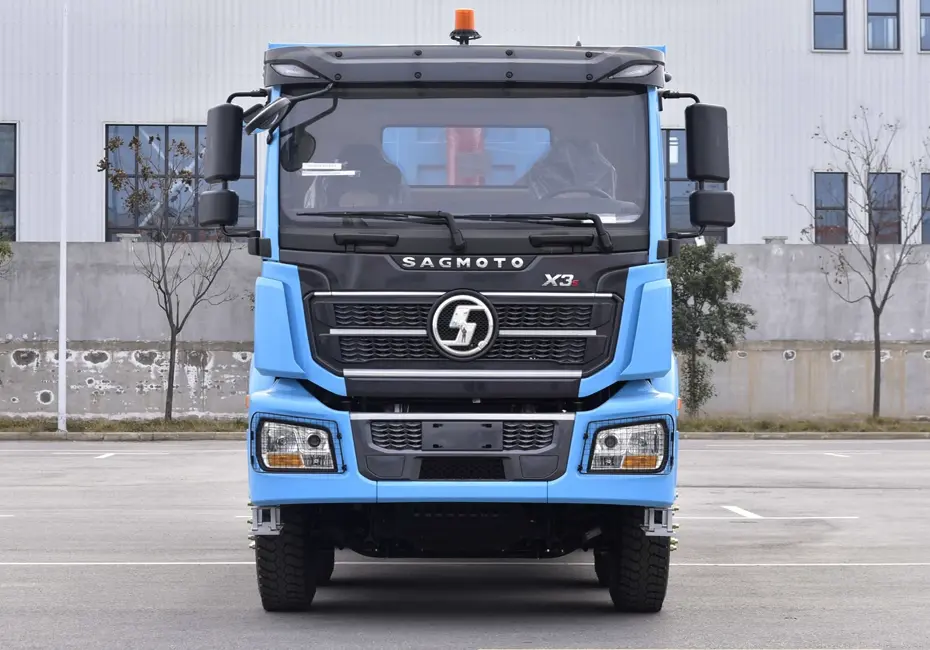

The Shacman X3S 8×4 Tipper Truck with 385HP is engineered for demanding construction, mining, and quarry operations. Combining a reliable Cummins engine with a reinforced 8×4 chassis, it delivers dependable performance for hauling heavy loads across the toughest terrains.
Proven Cummins Power: The Cummins ISME 385-30 engine delivers 385HP and 1900 N·m of torque, providing strong low-end pulling power for heavy payloads and steep gradients.
Reinforced 8×4 Chassis: The 850×300 mm high-strength steel frame with multi-leaf spring suspension (14/14/12) ensures exceptional durability and load-bearing stability under extreme working conditions.
Heavy-Duty Axles: MAN 9.5T front axle and 16T double-reduction rear axle with a 5.262 ratio offer superior traction and reliability for heavy hauling.
| SHACMAN X3S 8X4 TIPPER TRUCK | |
| Model | SX3313M3M39J3660 |
| Engine | Cummins ISME 420-30 420 HP Euro III |
| Gearbox | Fast 810JSD180 10-speed manual |
| Drive | 8×4 |
| Rear Axle | 16 T two-stage, ratio 5.262 |
| Payload | 30 t |
| Dump Body | 13 m³ (5.6×2.3×1.0 m) T700 steel |
| GVW | 31 t |
| Suspension | 14/14/12 leaf springs |
| Fuel Tank | 400 L aluminum |
| Tyres | 12.00R20 18PR |
| Cab | X3s half-high, A/C |
| Max Speed | 80 km/h |
| Certification | ISO9001, SONCAP |

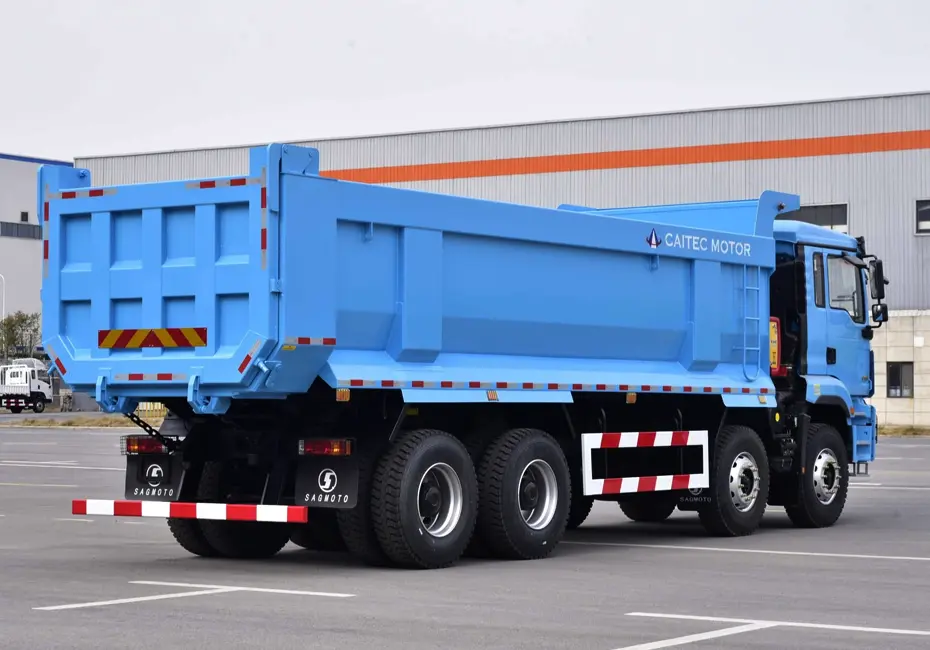

Durable Dump Body: The cargo box is built from T700 high-strength steel, with a 13 m³ capacity (5.6×2.3×1.0 m) and front-lifting hydraulic system for efficient unloading.

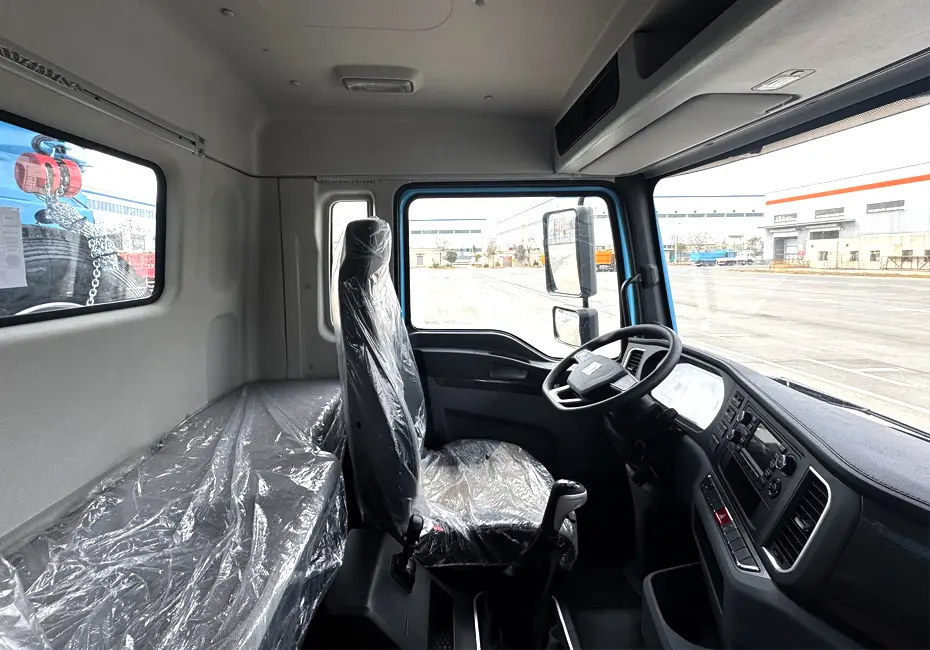

Operator Comfort: The X3S half-high cab features an air-suspension driver seat, automatic climate control, multi-function steering wheel, and LCD instrument cluster for reduced operator fatigue during long shifts.
Construction and Earthmoving: Hauling sand, gravel, and demolition debris on demanding job sites.
Mining and Quarrying: Transporting extracted minerals, rocks, and overburden with reliable power and durability.
Infrastructure Projects: Supporting road, dam, and port construction with consistent heavy-load performance.
